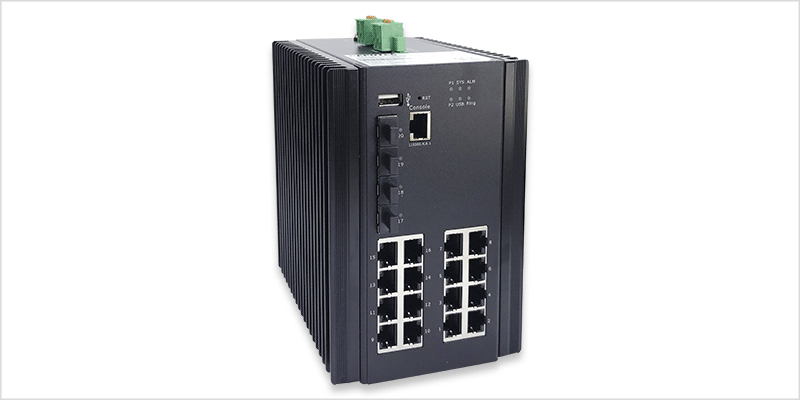

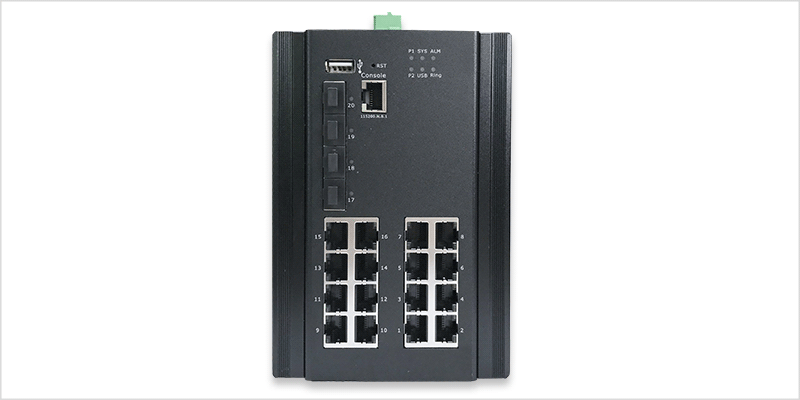

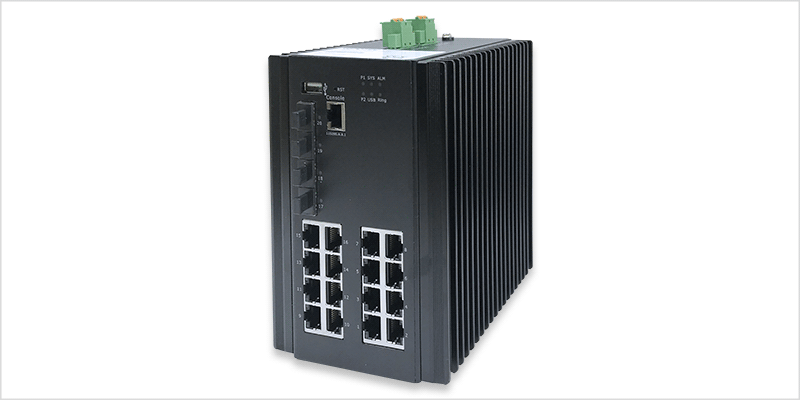

The RP-ISG6316I-4F is a highly reliable Layer 2+ managed industrial Ethernet switch, equipped with 16×10/100/1000Base-T RJ45 ports and 4×1G/2.5GBase-X SFP slots. With full gigabit capability, it delivers high performance and rapid transmission of large volumes of video, voice, and data, making it well-suited for high-bandwidth industrial applications.

This model supports rich Layer 2 management features, including optional DI/DO/RS485 interfaces, G.8032 ERPS ring protection, MSTP/RSTP/STP redundancy, IPv4/IPv6 static routing, and a built-in DHCP server. With advanced network security and traffic control, it ensures stable and resilient connectivity for mission-critical networks.

Engineered for tough environments, it features a fan-less IP40-rated metal housing, DIN-rail installation, dual 12–75V DC power inputs, and a wide -40°C to 80°C operating range. With strong EMI/EMC resistance, it is ideal for deployment in industrial automation, transportation systems, energy sectors, and surveillance networks.

12-75V redundant DC power supply with polarity reverse/over-voltage/over-current protection
Support USB one key configuration & upgrading
Layer 3 features: Support IPv4/IPv6 static routing, DHCP server
Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
Management and maintenance: IPv4 and IPv6 management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB
Support G.8032 ERPS protocol, recovery time ≤20ms
Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP
Interface	16 x 10/100/1000Base-T RJ45 4 x 1G/2.5GBase-X SFP
Management port	1 x RJ45 Console port 1 x USB 2.0 for configuration and firmware update
Switching capacity	52Gbps
Packet forwarding rate	77.3Mpps
MAC address table	16K
VLAN	4K
Buffer	12Mbit
Forwarding delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Layer 2 function
Port aggregation	Support GE port aggregation Support 2.5GE aggregation Support static aggregation Support LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group
Port features	Support IEEE802.3x flow control Support interface counters Support port isolation Port mirroring (One-to-One, Many-to-One) Support loop detection(Port-based; VLAN-based) Support broadcast storm suppression(broadcast; unknown multicast; unknown unicast)
Mac-address table management	Support static Mac-address management Support dynamic Mac-address Management Support filtering Mac-address Support MAC limit based on port and VLAN Support MAC flapping based on port and VLAN
VLAN	Support access mode Support trunk mode Support hybrid mode
VLAN classification	Mac Based VLAN IP Based VLAN Protocol Based VLAN
GVRP	Normal mode Fixed mode Forbidden mode
QinQ	Port-based QinQ VLAN-based QinQ(VLAN-stacking; VLAN-mapping) Flow-based QinQ
LLDP	LLDP (Link Layer Discovery Protocol)
Ring network protocol	Support IEEE802.1D-STP, IEEE802.1W-RSTP, IEEE802.1S-MSTP Support G.8032 ERPS protocol，single ring, sub Ring and associated sub ring Recovery time ≤20ms
L2 Multicast
IGMP snooping	Support IGMP snooping
Group address	Support group address
Security functions
ACL	IP Standard ACL MAC extend ACL IP extend ACL IPv6 ACL
QoS	Support QoS Class, remarking Support SP, WRR queue scheduling Ingress port-based rate-limit Egress port-based rate-limit Support policy-based QoS
802.1x	Port access control Mac-address access control RADIUS server
Port-security	Port-security
IP source guard	IP Port/MAC binding
ARP-check	Support ARP-check and ARP packet filtering for illegal users
Access control	Support Telnet/SSH/HTTP/HTTPS user access control
Management & Maintenance functions
User Management	Support password protection Support user authorization management
SNMP	Supporting SNMP V1/V2C/V3 version
Web Management	Web Management Support HTTP V1.1 Support HTTPS
CLI management	Console/Telnet command line management
RMON	Support RMON(Remote Monitoring) alarm
Firmware upgrade	Firmware upgrade
Fault Detection	Ping/Tracer out Dying gasp Support optical transceiver DDM function
Cable detection	Support copper port cable detection
NTP	Network Time Protocol
Syslog/Debug	Syslog/Debug Syslog send to three servers
Configuration import/export	Support FTP/TFTP remote import/export Support USB import/export
Dual partition management	Support dual partition switching
Application Protocol Functions
DHCP Snooping	DHCP snooping trust port Support remote-id/circuit-id configuration DHCP option-82
DHCP client	Support DHCP client
Telnet server	Support telnet server
Telnet client	Support telnet client
SSH server	Support SSH server
TACACS	Support TACACS(the terminal access controller accesses the control system)
sflow	Support network traffic analysis
TFTP	Support TFTP Client
Layer 3 functions
ARP	ARP tablue aging
DHCP server	DHCP server
IPv4 / IPv6	static routing
Power parameter
Input voltage	12-75VDC, redundant power input
Input current	2A DC/DC input Max
Total consumption	Full loading ≤ 22W
Connector	Removable 2x2-pin terminal block
Reverse polarity protection	Support
Over-voltage protection	Support
Over-current protection	Support
Mechanical structure

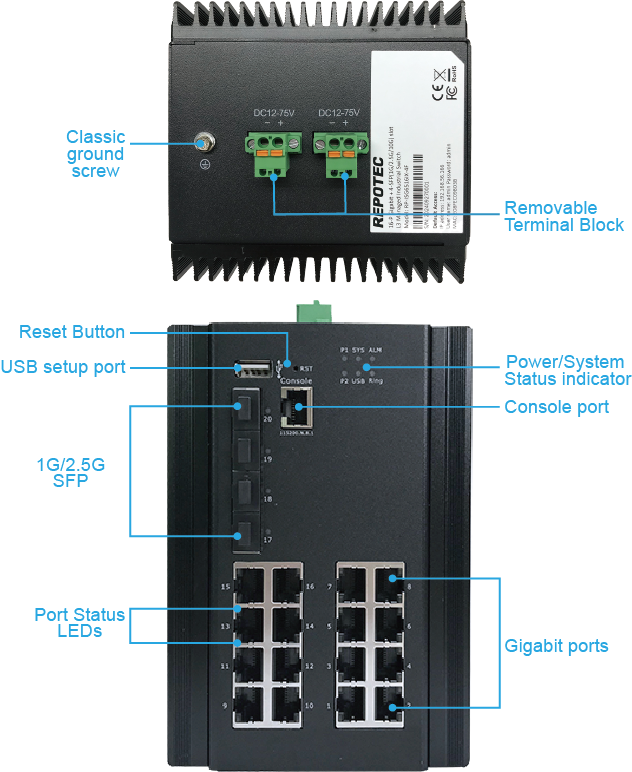

LED Indicators	P1/P2 (Power indicator) SYS (System status indicator) USB (USB status indicator) Green ALM(Fault status indicator) Red Ring(Ring network indicator) 1-16 (Copper ports indicators) Green: ports link / Yellow: Off: ports on 10/100M; On: ports on 1000M 17-20 (Fiber ports indicators) Green
Case protection	IP40

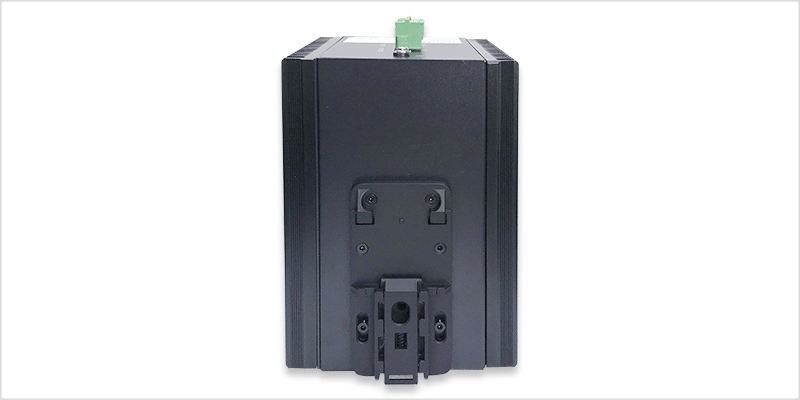

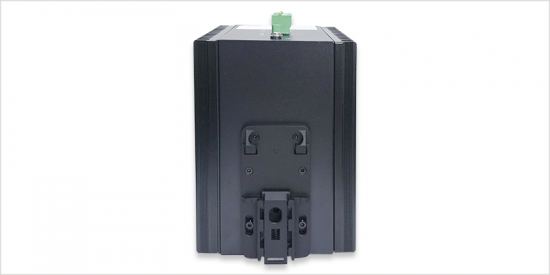

Installation method	Din-rail
Dimension	110 x 115 x 158mm (WxDxH)
Environment	Operating temperature: -40°C~+80°C Storage temperature -40°C~+85°C Operating Humidity: 10 to 90% (Non-Condensing)
EMS	Surge protection of power: IEC 61000-4-5 6KV/4KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV (10/700us) RS：IEC 61000-4-3 80 MHz-1 GHz: 10 V/m EFT：IEC 61000-4-4 4K/2K CS：IEC 61000-4-6 10V ESD：IEC 61000-4-2 Contact: 8K；Air: 15K
EMI	FCC Part 15B Class A
Shock	IEC 60068-2-27
Free fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE/FCC
