Industrial Managed Switch - RP-ISG6516IX-4F

Redundant power 44-57V input with polarity reverse/over-voltage/over-current protection
Support USB one key configuration & upgrading
Supports Layer 3 features, static and dynamic routing
Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
Support G.8032 ERPS protocol, recovery time ≤20ms
Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and Din-rail hardware design

Overview

Features

Specifications

Download

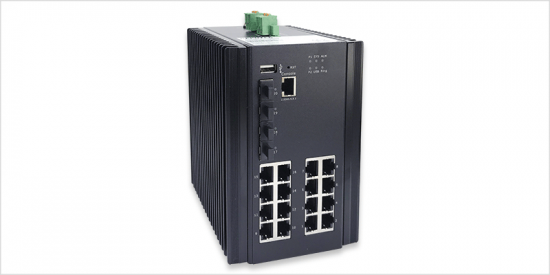

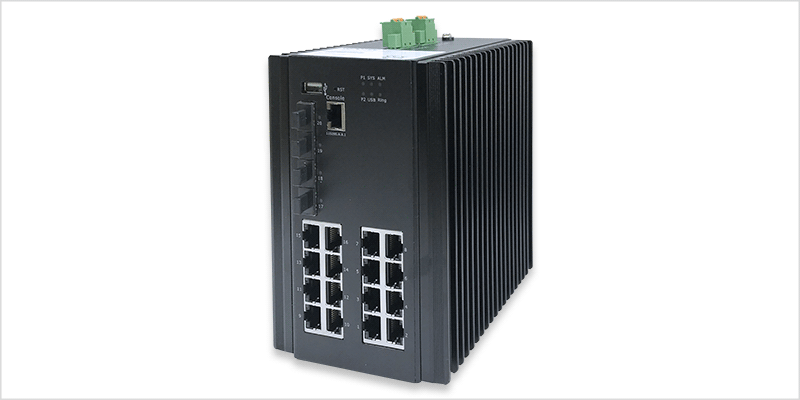

The RP-ISG6516IX-4F is a highly reliable Layer 3 managed industrial Ethernet switch with 16-port 10/100/1000-T RJ45 and 4-port 10GBase-X SFP+ interfaces. It supports ERPS for redundant networks with less than 20ms recovery, making it ideal for critical industrial applications requiring high uptime.

The RP-ISG6516IX-4F simplifies operations with USB one-key configuration and upgrading. It supports Layer 3 static and dynamic routing features, along with robust Layer 2 management functions, meeting the specific needs of industrial automation applications.

This cost-effective, easy-to-use device offers essential industrial Ethernet networking functions, including a wide power input range (12-57VDC), redundant power with polarity reverse, over-voltage, and over-current protection, and a durable IP40 fan-less housing. With a wide operating temperature range from -40°C to 75°C, it is the ideal choice for heavy industry, manufacturing, transportation, oil & gas, and IP surveillance systems.

Redundant power 44-57V input with polarity reverse/over-voltage/over-current protection
Support USB one key configuration & upgrading
Supports Layer 3 features, static and dynamic routing
Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
Support G.8032 ERPS protocol, recovery time ≤20ms
Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and Din-rail hardware design
Operation temperature: -40°C ~+75°C

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP
Interface	16 x 10/100/1000Base-T RJ45 (1-16 ports) 4 x 1G/2.5G/10GBase-X SFP (17-20 ports)
Management port	1 x RJ45 Console port (115200,8,N,1) 1*USB 2.0 for configuration and firmware update
Switching capacity	Gbps
Packet forwarding rate	166.6Mpps
MAC address table	16K
VLAN	4K
Buffer	12Mbit
Forwarding delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Layer 2 function
Port aggregation	Support GE port aggregation Support 2.5GE aggregation Support 10GE aggregation Support static aggregation Support LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group
Port features	Support IEEE802.3x flow control, Support interface counters, Support port isolation, Port mirroring ( One-to-One, Many-to-One) Support loop detection(Port-based; VLAN-based) Support broadcast storm suppression(broadcast; unknown multicast; unknown unicast)
Mac-address table management	Support static Mac-address management Support dynamic Mac-address Management Support filtering Mac-address Support MAC limit based on port and VLAN Support MAC flapping based on port and VLAN
VLAN	Support access mode Support trunk mode Support hybrid mode
VLAN Classification	Mac Based VLAN IP Based VLAN Protocol Based VLAN
GVRP	Normal mode Fixed mode Forbidden mode
QinQ	Port-based QinQ VLAN-based QinQ (VLAN-stacking; VLAN-mapping) Flow-based QinQ
LLDP	LLDP (Link Layer Discovery Protocol)
Port mirroring	Many to one port mirroring
Ring network protocol	Support STP、RSTP、MSTP Support G.8032 ERPS protocol，single ring, sub Ring and major ring Recovery time ≤20ms
L2 Multicast
IGMP snooping	Support IGMP snooping
Group address	Support group address
Security functions
ACL	IP Standard ACL MAC extend ACL IP extend ACL IPv6 ACL
QoS	Support QoS Class, Remarking Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Support Policy-based QoS
802.1x	Port access control Mac-address access control RADIUS server
Port-security	Port-security
IP source guard	IP Port/MAC binding
ARP-check	Support ARP-check and ARP packet filtering for illegal users
Access control	Support Telnet/SSH/HTTP/HTTPS user access control
Management & Maintenance functions
User Management	Support password protection Support user authorization management
SNMP	Supporting SNMP V1/V2C/V3 version
Web Management	Support HTTP V1.1 Support HTTPS
CLI management	Console/Telnet command line management
RMON	Support RMON(Remote Monitoring) alarm
Firmware upgrade	Firmware upgrade
Fault Detection	Ping/Traceroute Dying gasp Support optical transceiver DDM function
Cable detection	Support copper port cable detection
NTP	Network Time Protocol
Syslog/Debug	Syslog/Debug Syslog send to three servers
Configuration import/export	Support FTP/TFTP remote import/export Support USB import/export
Dual partition management	Support dual partition switching
Application Protocol Functions
DHCP Snooping	DHCP snooping trust port Support remote-id/circuit-id configuration DHCP option-82
DHCP client	Support DHCP client
Telnet server	Support telnet server
Telnet client	Support telnet client
SSH server	Support SSH server
TACACS	Support TACACS(the terminal access controller accesses the control system)
sflow	Support network traffic analysis
TFTP	Support TFTP Client
Layer 3 function
ARP	ARP table aging
DHCP server	Support DHCP server
IPv4 / IPv6	Static routing
ECMP	Support ECMP (Equal-cost multi-path routing) Support the configuration of ECMP Max next-hop Support capacity balanced configuration
Route policy	IPv4 prefix-list
VRRP	virtual router redundancy protocol
Routing Protocol Specification
RIP	RIPv1/v2
OSPFv2	OSPFv2
BGP4	BGP4 BGP Support Routing Recursive ECMP Support to view the number of neighbors and up/down state
IS-IS	IS-ISv4
Routing Entry	13K
Power parameter
Input voltage	12-75V DC, redundant power input
Input current	2.5A DC/DC input Max
Power Consumption	Full loading ≤24W

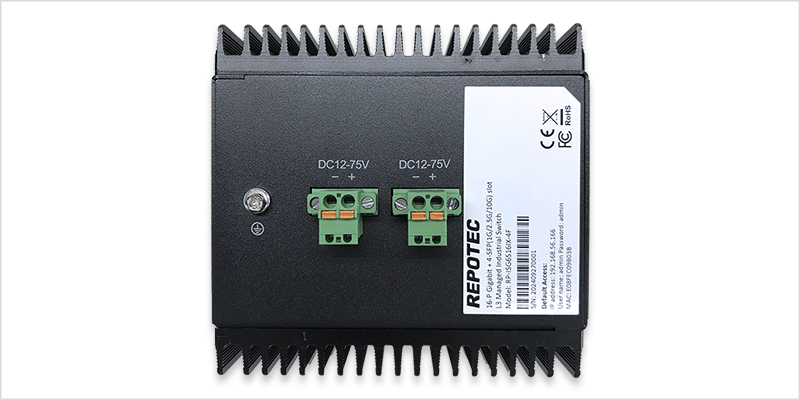

Connector	Removable 2*2-pin terminal block
Reverse polarity protection	Support
Over-voltage protection	Support
Over-current protection	Support
Mechanical structure

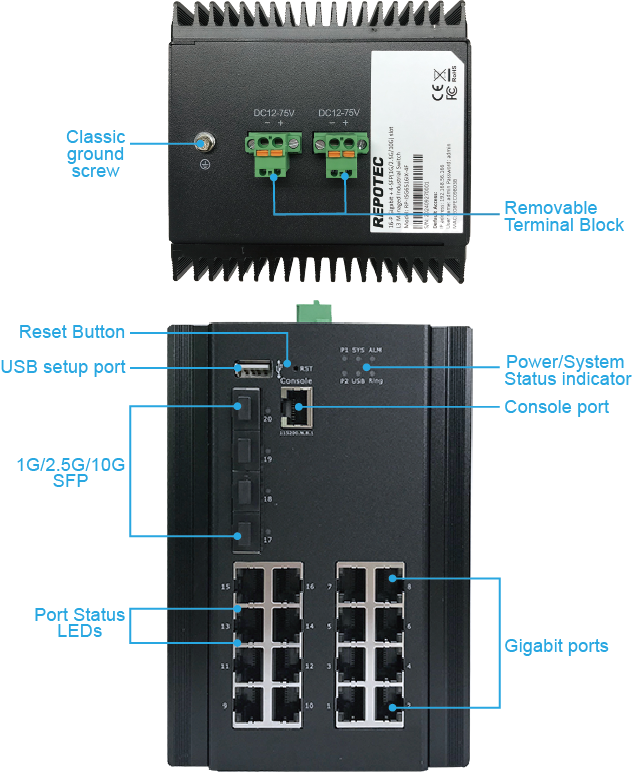

LED Indicators	P1/P2 (Power indicator) Green SYS (System status indicator) USB (USB status indicator) Green ALM(Fault status indicator) Red Ring(Ring network indicator) 1-16 (Copper ports indicators) Green: Ring network enable/ Yellow: ports link up 17-20 (Fiber ports indicators) Green Power parameter
Case protection	IP40

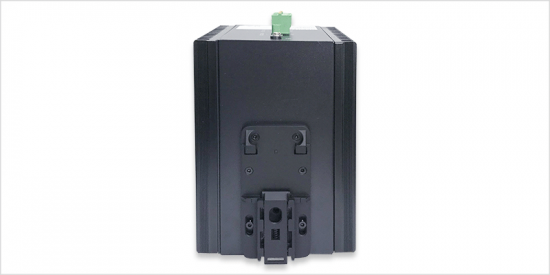

Installation method	Din-rail
Dimension	110x158x115mm (WxHxD)
Environment	Operating temperature: -40°C~+75°C Storage temperature -40°C~+85°C Operating Humidity: 10 to 90% (Non-Condensing) Storage humidity: 5%-95% RH
EMS	Surge protection of power: IEC 61000-4-5 6KV/4KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV (10/700us) RS：IEC 61000-4-3 80 MHz-1 GHz：10 V/m EFT：IEC 61000-4-4 4K/2K CS：IEC 61000-4-6 10V ESD：IEC 61000-4-2 Contact: 8K；Air: 15K
EMI	FCC Part 15B Class A
Shock	IEC 60068-2-27
Free fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE/FCC/RoHS
