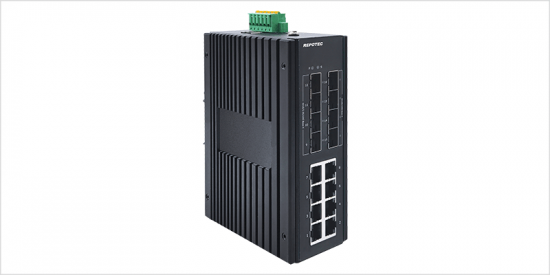

RP-IPG6508IX-8F is the highly reliable managed industrial PoE switch with 8-port 10/100/1000-T RJ45, 4-port 100/1000Base-X SFP and 4-port 1G/2.5G/10GBase-X SFP+ slots. It delivers 30watts power per PoE port and generates a total of 240Watts power to PD devices. With full gigabit downlink and 10G uplink capability, it delivers high-performance data transfer across industrial networks.

RP-IPG6508IX-8F supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. RP-IPG6508IX-8F also supports Layer 3 static routing & dynamic routing features, powerful Layer 2 management and secure function, which all making them ideal for large-scale industrial networks.

With IP40-rated rugged case protection allows for either DIN rail or wall mounting for efficient use of cabinet space. Its wide operating temperature ranges from -40°C to 75°C, RP-IPG6508IX-8F is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

Redundant power 44-57V input with polarity reverse/over-voltage/over-current protection
Support one digital output for relay alarm (terminal block Pin 5/6)
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Layer 3 feature: Support static routing and dynamic routing
Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
Support G.8032 ERPS protocol, recovery time ≤20ms
Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and Din-rail hardware design
Operation temperature: -40°C ~+75°C

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE 802.3ae 10Gb/s Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE 802.3af PoE; IEEE 802.3at PoE+
Interface	8 x 10/100/1000Base-T RJ45 PoE 4 x 100/1000Base-X SFP (13-16 ports) 4 x 1G/2.5G/10GBase-X SFP (9-12 ports)
Management port	1 x RJ45 Console port
Alarm port	One digital output for relay alarm, alarm relay current carry ability: 1A@24VDC
Switching capacity	104Gbps
Packet forwarding rate	154.7Mpps
MAC address table	16K
VLAN	4K
Buffer	12M bit
Forwarding delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Layer 2 function
Port aggregation	Support GE port aggregation Support 2.5GE aggregation Support 10GE aggregation Support static aggregation Support dynamic aggregation
Port features	Support IEEE802.3x flow control, Support port traffic statistics, Support port isolation Support network storm suppression based on port bandwidth percentage
VLAN	Support access mode Support trunk mode Support hybrid mode
VLAN Classification	Mac Based VLAN IP Based VLAN Protocol Based VLAN
QinQ	Port-based QinQ VLAN-based QinQ Flow-based QinQ
Port mirroring	Many to one port mirroring
Ring network protocol	Support STP、RSTP、MSTP Support G.8032 ERPS protocol，single ring, sub Ring and associated sub ring Recovery time ≤20ms
DHCP	Support DHCP Client Support DHCP Snooping
Multicast	IGMP snooping
ACL	IP Standard ACL MAC extend ACL IP extend ACL
QoS	Support QoS Class, Remarking Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Support Policy-based QoS
Security	Support Dot1x, port authentication, MAC authentication, RADIUS service Support port-security Support IP Source Guard, IP/Port/MAC binding Support ARP-check and ARP packet filtering for illegal users Support port isolation
Management & maintenance	Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support temperature monitoring Support Ping , TRACERT Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support TFTP, web upgrading
Layer 3 function
ARP	ARP table aging
IPv4 / IPv6	Static routing
ECMP	ECMP Support the configuration of ECMP Max next-hop Support capacity balanced configuration
Route policy	IPv4 prefix-list
VRRP	virtual router redundancy protocol
Routing Entry	13K
IP routing protocol	RIPv1/v2; OSPFv2; BGP4; BGP supports Routing recursive ECMP; Support to view the number of neighbors and up/down state
Power parameter
Input voltage	44-57VDC, redundant power input
Input current	5.9A Max
PoE power	Full loading without PoE≤20W PoE power budget ≤ 240W
Connector	Removable 6-pin terminal block, Pin 5-6 for relay alarm
Reverse polarity protection	Support
Over-voltage protection	Support
Over-current protection	Support
Mechanical structure
LED Indicators	P (Power indicator) S (System status indicator) 1-8 (Copper ports indicators) Green / (PoE) Yellow 9-16 (Fiber ports indicators) Green
Case protection	IP40
Installation method	Din-rail
Dimension	54x158x115mm (WxHxD)
Environment	Operating temperature: -40°C~+75°C Storage temperature -40°C~+85°C Operating Humidity: 10 to 90% (Non-Condensing)
EMS	Surge protection of power: IEC 61000-4-5 DC:6KV/4KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV (10/700us) RS: IEC 61000-4-3 80 MHz-1 GHz:10 V/m EFT: IEC 61000-4-4 power 4K, signal 2K CS: IEC 61000-4-6 10V ESD: IEC 61000-4-2 Contact: 8K; Air: 15K
EMI	FCC Part 15B Class A
Shock	IEC 60068-2-27
Free fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CCC/CE/FCC/RoHS
