24-P Gigabit + 4-SFP(1G/2.5G/10G) slot L2+ Managed Industrial PoE Switch
Model: RP-IPG63240IX-4FR
- 30W per PoE port, 370W total power
- Full gigabit downlink, 10G uplink
- G.8032 ERPS, MSTP/RSTP/STP redundancy
- Layer 3 routing, robust management
- Wide voltage input, redundant power
- Redundant power with protection
- USB configuration and upgrading
- VLAN, ERPS, STP/RSTP/MSTP, IGMP
- Management: Web, SNMP, CLI, Telnet/SSH

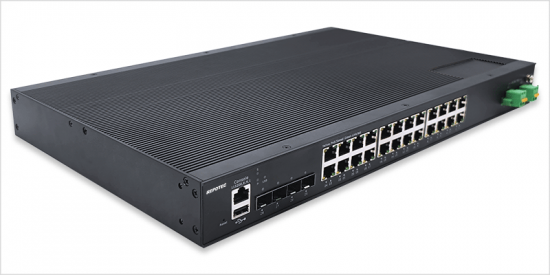

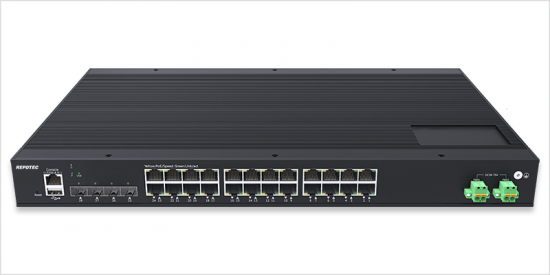

RP-IPG63240IX-4FR is the highly reliable Layer 2+ managed industrial PoE switch with 24-port 10/100/1000Base-T PoE and 4-port 1G/2.5G/10GBase-X SFP+. It delivers 30watts power per PoE port and generates a total of 370Watts power to PD devices, With full gigabit downlink and 10G uplink capability, it delivers high-performance data transfer across industrial networks.
RP-IPG63240IX-4FR supports G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, Layer 3 static routing, and robust management features. With wide range voltage input 44-57VDC and redundant power design, it is ideal for large-scale industrial networks.
Robust IP40-rated rugged case protection with rack-mount installation, Its wide operating temperature ranges from -40°C to 75°C, RP-IPG63240IX-4FR is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
- DC/DC redundant power supply with polarity reverse/over-voltage/over-current protection
- Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
- Support USB one key configuration and upgrading
- Layer 3 feature: Support IPv4/IPv6 static routing
- Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
- Management and maintenance: IPv4 and IPv6 management, PoE management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB
- Support G.8032 ERPS protocol, recovery time ≤20ms
- Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and rack-mount hardware design
- Operation temperature: -40°C ~+ 75°C
Standards |
|
Interface |
|
Management port |
|
Switching capacity |
|
Packet forwarding rate |
|
MAC address table |
|
VLAN |
|
Buffer |
|
Forwarding delay |
|
Jumbo Frame |
|
MDX/MIDX |
|
Watchdog |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
VLAN Classification |
|
QinQ |
|
Port mirroring |
|
Ring network protocol |
|
DHCP |
|
Multicast |
|
ACL |
|
QoS |
|
Security |
|
Management & maintenance |
|
Layer 3 function | |
ARP |
|
IPv4 / IPv6 |
|
Power parameter | |
Input voltage |
|
Input current |
|
PoE power |
|
Connector |
|
Reverse polarity protection |
|
Over-voltage protection |
|
Over-current protection |
|
Mechanical structure | |
LED Indicators |
|
Case protection |
|
Installation method |
|
Dimension |
|
Environment |
|
EMS |
|
EMI |
|
Shock |
|
Free fall |
|
Vibration |
|
Certification |
|
RP-IPG63240IX-4FR | 24-P Gigabit + 4-SFP(1G/2.5G/10G) slot L2+ Managed Industrial PoE Switch |
