Industrial Managed Switch - RP-IPG63168I-4FR

Overview

Features

Specifications

Download

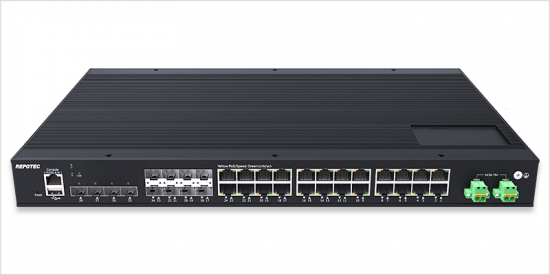

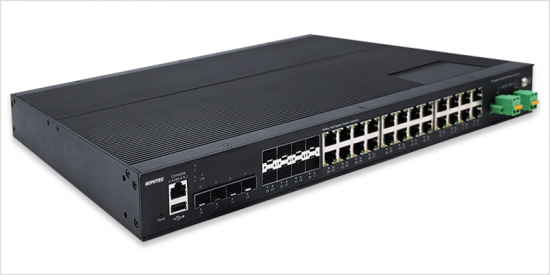

RP-IPG63168I-4FR is the highly reliable Layer 2+ managed industrial PoE switch with 16-port 10/100/1000Base-T PoE ,8-port 1000Base Combo and 4-port 1G/2.5GBase-X SFP. It delivers 30watts power per PoE port and generates a total of 370Watts power to PD devices, With full gigabit capability, it delivers high-performance data transfer across industrial networks.

RP-IPG63168I-4FR supports G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, Layer 3 static routing, and robust management features. With wide range voltage input 44-57VDC and redundant power design, it is ideal for large-scale industrial networks.

Robust IP40-rated rugged case protection with rack-mount installation, Its wide operating temperature ranges from -40°C to 75°C, RP-IPG63168I-4FR is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

DC/DC redundant power supply with polarity reverse/over-voltage/over-current protection
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Support USB one key configuration and upgrading
Layer 3 feature: Support IPv4/IPv6 static routing
Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
Management and maintenance: IPv4 and IPv6 management, PoE management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB
Support G.8032 ERPS protocol, recovery time ≤20ms
Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and rack-mount hardware design
Operation temperature: -40°C ~+ 75°C

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE
Interface	16 x 10/100/1000Base-T RJ45 8 x 1G COMBO SFP/RJ45 4 x 1000/2500Base-X SFP
Management port	1 x RJ45 Console port 1 x USB 2.0 for configuration and firmware update
Switching capacity	68Gbps
Packet forwarding rate	101Mpps
MAC address table	16K
VLAN	4K
Buffer	12M bit
Forwarding delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Layer 2 function
Port aggregation	Support GE port aggregation Support 2.5GE aggregation Support static aggregation Support dynamic aggregation
Port features	Support IEEE802.3x flow control, Support port traffic statistics, Support port isolation Support network storm suppression based on port bandwidth percentage
VLAN	Support access mode Support trunk mode Support hybrid mode
VLAN Classification	Mac Based VLAN IP Based VLAN Protocol Based VLAN
QinQ	Port-based QinQ VLAN-based QinQ Flow-based QinQ
Port mirroring	Many to one port mirroring
Ring network protocol	Support STP、RSTP、MSTP Support G.8032 ERPS protocol，single ring, sub Ring and associated sub ring Recovery time ≤20ms
DHCP	Support DHCP Client Support DHCP Snooping
Multicast	IGMP snooping
ACL	IP Standard ACL MAC extend ACL IP extend ACL
QoS	Support QoS Class, Remarking Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Support Policy-based QoS
Security	Support Dot1x，port authentication，MAC authentication，RADIUS service Support port-security Support IP Source Guard，IP/Port/MAC binding Support ARP-check and ARP packet filtering for illegal users Support port isolation
Management & maintenance	Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support temperature monitoring Support Ping , TRACERT Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support TFTP, web upgrading Support USB upgrading Support USB importing configuration
Layer 3 function
ARP	ARP table aging
IPv4 / IPv6	Static routing
Power parameter
Input voltage	44-57VDC redundant power input
Input current	9A DC input Max
PoE power	Full loading without PoE≤32W PoE power budget ≤ 370W
Connector	Removable 2-pin terminal block
Reverse polarity protection	Support
Over-voltage protection	Support
Over-current protection	Support
Mechanical structure
LED Indicators	P (Power indicator) S (System status indicator) USB (USB status indicator) 1-16 (Copper ports indicators) Green / PoE Yellow 17-28 (Fiber ports indicators) Green
Case protection	IP40
Installation method	Rack mountable
Dimension	440 x 280 x 44mm (WxDxH)
Environment	Operating temperature: -40°C~+75°C Storage temperature -40°C~+85°C Operating Humidity: 10 to 90% (Non-Condensing)
EMS	Surge protection of power: IEC 61000-4-5 DC:6KV/6KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV (10/700us) RS: IEC 61000-4-3 80MHz-1 GHz: 10 V/m EFT: IEC 61000-4-4 power 4K, signal 2K CS: IEC 61000-4-6 10V ESD: IEC 61000-4-2 Contact: 8K; Air: 15K
EMI	FCC Part 15B Class A
Shock	IEC 60068-2-27
Free fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE/FCC/RoHS
