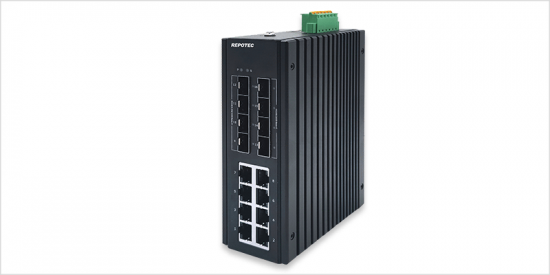

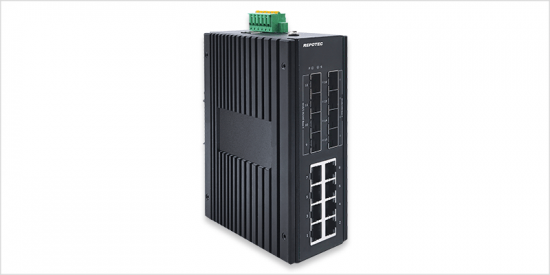

RP-IPG6308IX-8F is the highly reliable Layer 2+ managed industrial PoE switch with 8-port 10/100/1000-T RJ45, 4-port 100/1000Base-X SFP and 4-port 1G/2.5G/10GBase-X SFP+ slots. It delivers 30watts power per PoE port and generates a total of 240Watts power to PD devices, With full gigabit downlink and 10G uplink capability, it delivers high-performance data transfer across industrial networks.

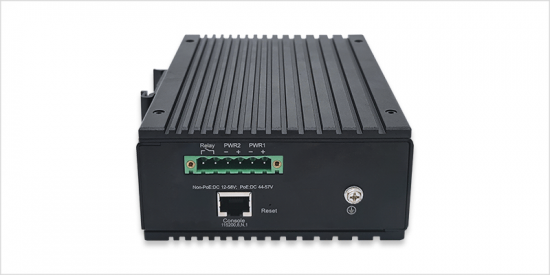

RP-IPG6308IX-8F supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution., The switch also support Layer 3 static routing and robust management features. With wide range voltage input 44-57VDC and redundant power design, it is ideal for large-scale industrial networks.
With IP40-rated rugged case protection allows for either DIN rail or wall mounting for efficient use of cabinet space. Its wide operating temperature ranges from -40°C to 75°C, RP-IPG6308IX-8F is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
Datasheet
