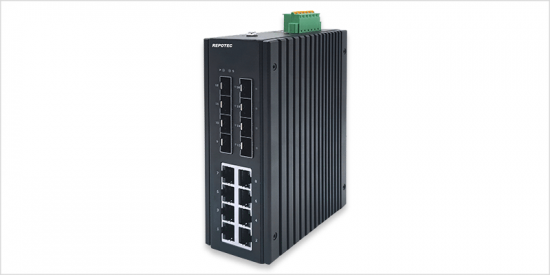

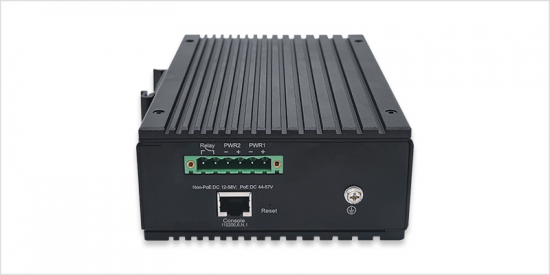

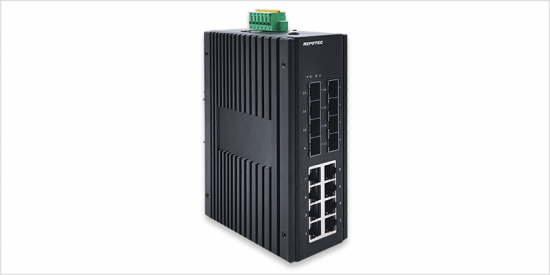

RP-IPG6308I-8F


8-P Gigabit PoE + 4-SFP(100/1G) slot + 4-SFP (1G/2.5G) slot L2+ Managed Industrial PoE Switch

Model: RP-IPG6308I-8F

  • 30W per PoE port, 240W total power
  • ERPS redundant network support
  • Layer 3 static routing, robust management
  • Wide voltage input, redundant power
  • Relay alarm output
  • Layer 2 features: VLAN, QinQ, STP/RSTP/MSTP
  • Management: Web, SNMP, Telnet, TFTP
  • G.8032 ERPS support, fast recovery
  • Surge and ESD protection, fan-less design

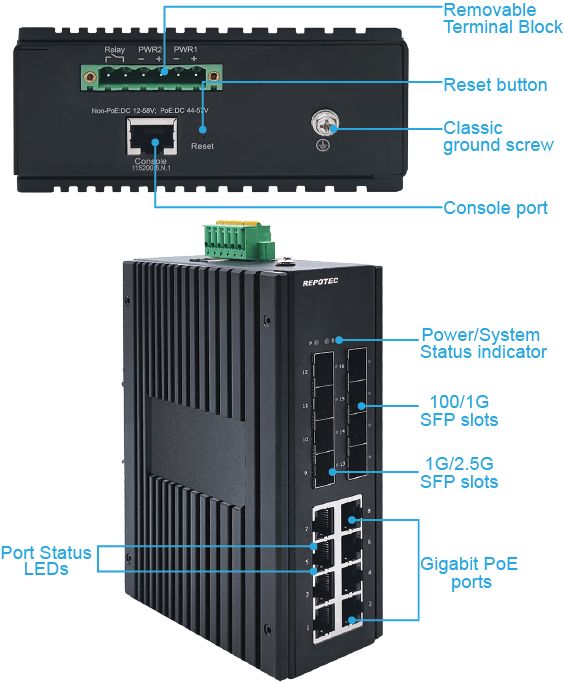

RP-IPG6308I-8F is the highly reliable Layer 2+ managed industrial PoE switch with 8-port 10/100/1000-T PoE, 4*100/1000Base-X SFP and 4-port 1G/2.5GBase-X SFP slots. It delivers 30watts power per PoE port and generates a total of 240Watts power to PD devices, With full gigabit capability, it delivers high-performance data transfer across industrial networks.

RP-IPG6308I-8F supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution., The switch also support Layer 3 static routing and robust management features. With wide range voltage input 44-57VDC and redundant power design, it is ideal for large-scale industrial networks.

With IP40-rated rugged case protection allows for either DIN rail or wall mounting for efficient use of cabinet space. Its wide operating temperature ranges from -40°C to 75°C, RP-IPG6308I-8F is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

RP-IPG6308I-8F 8-P Gigabit PoE + 4-SFP(100/1G) slot + 4-SFP (1G/2.5G) slot L2+ Managed Industrial PoE Switch
