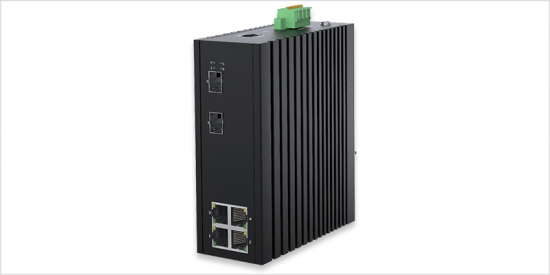

4-P Gigabit PoE + 2-SFP(1G/2.5G) slot L2 Managed Industrial PoE Switch

Model: RP-IPG6204I-2F

  • Redundant power DC 44-57V input
  • Complies with IEEE802.3af /.3at PoE+ standard
  • VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP/
  • Port Mirroring/DHCP/Multicast
  • ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM
  • PoE management/IPV6 management
  • SNMP/Telnet/TFTP/Web upgrading
  • Support G.8032 ERPS protocol, recovery time ≤20ms

RP-IPG6204I-2F is the highly reliable managed industrial PoE switch with 4-port 10/100/1000-T PoE and 2-port 1G/2.5GBase-X fiber optical interfaces. The switch complies with IEEE802.3af and IEEE802.3at standards for PoE, offering up to 30W per port for PoE+ devices.

RP-IPG6204I-2F supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. RP-IPG6204I-2F also supports robust layer 2 management function, which can fulfill the special needs of industrial automation applications. The switch features wide range power input (44-57VDC) and redundant power design with polarity reverse protection, guaranteeing reliable and stable power supply.

RP-IPG6204I-2F is the high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function. The switch equips robust IP40 fan-less housing with Din-rail installation, as well as wide operation temperature from -40°C to 75°C. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

RP-IPG6204I-2F 4-P Gigabit PoE + 2-SFP(1G/2.5G) slot L2 Managed Industrial PoE Switch (120W)
