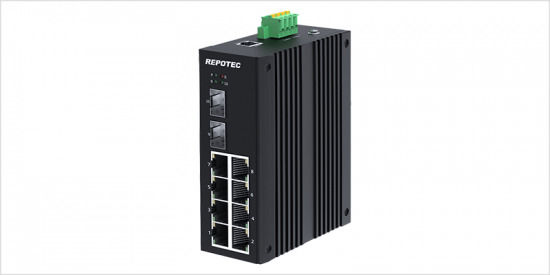

8-P Gigabit PoE + 2-SFP(1G/2.5G) slot L2 Managed Industrial PoE Switch
Model: RP-IPG3208I-2F
- 8-Port PoE and 2-Port Fiber interface
- High PoE Power up to 30W (PoE+) per port.
- Fast Network Recovery time less than 20ms
- Comprehensive Layer 2 Management
- Wide Power Input 44-57VDC
- Durable IP40 housing
- Wide Temperature Range -40°C to 75°C

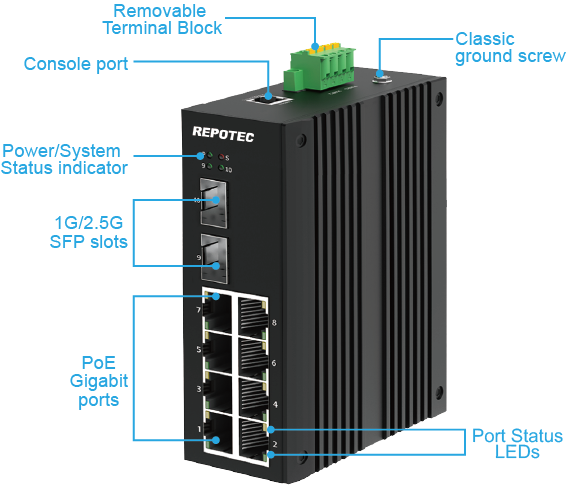

The RP-IPG3208I-2F is a reliable managed industrial PoE switch featuring 8 10/100/1000-T PoE ports and 2 1000/2500Base-X fiber optical interfaces. It complies with IEEE802.3af/at standards, offering up to 30W per port (PoE+) for efficient power delivery.
With ERPS support and a self-recovery mechanism under 20ms at full load, it provides robust Ethernet networking. Managed features include QoS, VLAN, IGMP, 802.1X, LLDP, fiber transceiver DDM, PoE management, and IPv6 management via Web/SNMP/Telnet.
The switch has a wide power input (44-57VDC), redundant power with polarity protection, IP40 fanless housing, and DIN-rail installation. Its -40°C to 75°C operating range and high EMI/EMC capability make it perfect for harsh industrial environments.
- DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
- Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
- Comprehensive Management: Supports Web/SNMP/Telnet management, including QoS, VLAN, IGMP, 802.1X, LLDP, and PoE management.
- Support G.8032 ERPS protocol, recovery time ≤20ms
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- Durable designed with a rugged IP40-rated enclosure and Din-rail mounting
- Wide operation temperature: -40°C ~+75°C
Standards |
|
Interface |
|
Management port |
|
Switching capacity |
|
Packet forwarding rate |
|
MAC address table |
|
VLAN |
|
Buffer |
|
Forwarding delay |
|
Jumbo Frame |
|
MDX/MIDX |
|
Watchdog |
|
Layer 2 function | |
Port aggregation |
|
Port features |
|
VLAN |
|
Port mirroring |
|
Ring network protocol |
|
Multicast |
|
QoS |
|
Security |
|
Management & maintenance |
|
Power parameter | |
Input voltage |
|
Input current |
|
PoE power |
|
Connector |
|
Reverse polarity protection |
|
Over-voltage protection |
|
Mechanical structure | |
LED Indicators |
|
Case protection |
|
Installation method |
|
Dimension |
|
Environment |
|
EMS |
|
Certification |
|
RP-IPG3208I-2F | 8-P Gigabit PoE + 2-SFP(1G/2.5G) slot L2 Managed Industrial PoE Switch (240W) |
