The RP-IPG3204I-2F is a highly durable industrial managed PoE switch featuring 4 10/100/1000-T PoE ports and 2 1000Base-X fiber interfaces. It supports IEEE802.3af/at PoE protocols, providing up to 30W per port, making it perfect for powering devices in demanding network environments.

With a robust switching capacity and support for ERPS redundant networks, the RP-IPG3204I-2F ensures rapid recovery times under full load. This enables reliable network configurations with backup solutions in place. It also offers advanced management features like QoS, VLAN, and PoE management to optimize network performance.

Built for challenging conditions, the device offers wide-range power inputs, redundant power protection, and is housed in a rugged IP40 fan-less enclosure. Its wide operating temperature range of -40°C to 75°C makes it ideal for industries like transportation, oil & gas, and IP surveillance.

DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Comprehensive Management: Supports Web/SNMP/Telnet management, including QoS, VLAN, IGMP, 802.1X, LLDP, and PoE management.
Support G.8032 ERPS protocol, recovery time ≤20ms
Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
Durable designed with a rugged IP40-rated enclosure and Din-rail mounting
Wide operation temperature: -40°C ~+75°C

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN Tagging ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE
Interface	4 x 10/100/1000Base-T RJ45 PoE 2 x 100/1000Base-X SFP
Management port	RJ45 Console port
Switching capacity	12Gbps
Packet forwarding rate	17.8Mpps
MAC address table	8K
VLAN	4K
Buffer	1M bit
Forwarding delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Layer 2 function
Port aggregation	Support static aggregation Support dynamic aggregation
Port features	Support IEEE802.3x flow control, Support port traffic statistics, Support port isolation Support network storm suppression based on port bandwidth percentage
VLAN	Support access mode Support trunk mode Support hybrid mode
Port mirroring	Support Many to one port mirroring
Ring network protocol	Support STP, RSTP Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring Recovery time ≤20ms
Multicast	IGMP snooping
QoS	Ingress Port-based Rate-limit Egress Port-based Rate-limit
Security	Support 802.1x，port authentication，MAC authentication，RADIUS service Support port isolation
Management & maintenance	Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support Ping, Traceroute Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support TFTP, web upgrading
Power parameter
Input voltage	44-57VDC, redundant power input
Input current	3A Max
PoE power	Full loading without PoE ≤ 6W PoE power budget ≤ 120W
Connector	Removable 4-pin terminal block
Reverse polarity protection	Support
Over-voltage protection	Support
Mechanical structure

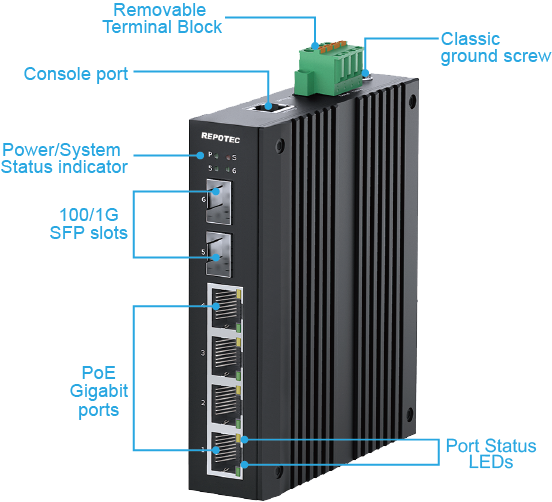

LED Indicators	P (Power indicator) S (System status indicator) 1-4 (Copper ports indicators) Green / (PoE status indicators) Yellow 5-6 (Fiber ports indicators) Green
Case protection	IP40
Installation method	Din-rail
Dimension	30 x 98 x 130mm (WxHxD)
Environment	Operating temperature: -40°C~+75°C Storage temperature -40°C~+85°C Operating Humidity: 10 to 90% (Non-Condensing) Storage humidity: 5%-95%RH
EMS	Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us) DIP: IEC 61000-4-11 Level 3 (10V) ESD: IEC 61000-4-2 Level 4 (8K/15K) Shock：IEC 60068-2-27 Free fall：IEC 60068-2-32 Vibration：IEC 60068-2-6
Certification	CE, FCC

Related Products

RP-IGS65168IX-4FR L3 Managed Industrial Ethernet Switch, 16-P SFP(100/1G) + 8-SFP...

RP-ISG3204I-2F L2 Managed Industrial Ethernet Switch, 4-P Gigabit + 2-SFP(100/...

RP-ISG6516IX-4F L3 Managed Industrial Ethernet Switch, 16-P Gigabit + 4-SFP(1G/...

RP-IPG6508IX-8F L3 Managed Industrial PoE Switch, 8-P Gigabit PoE + 4-SFP(100/1...

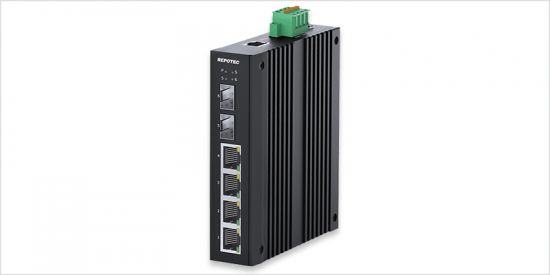

RP-IPG3204I-2F
