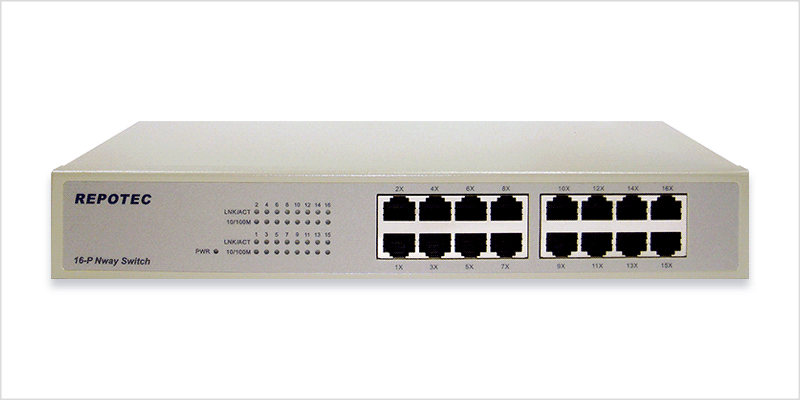

16-P Fast Ethernet Switch

  • The device is designed to enhance workgroup performance which supports 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 copper interfaces. It not only supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity but also automatically identify and determine the correct transmission speed as well as half / full duplex mode. Plug & play and all kinds of network protocols compilation which including runt and CRC error packets make the installation & network management easily and fast. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications.

    • Comply with 10Base-T specifications of the IEEE 802.3 standard
    • Comply with 100Base-TX specifications of the IEEE 802.3u standard
    • RJ-45 ports for 100Base-TX and 10Base-T connectivity
    • Support Nway protocol for speed (10/100Mbps) and Duplex mode (Half/Full) auto-detection
    • Support Auto MDI/MDI-X crossover
    • Support Full and Half Duplex operation on all ports
    • Support back-pressure (Half Duplex) and Flow Control (IEEE 802.3x)
    • Wire-speed packet filtering and forwarding rate
    • Store-and-forward architecture filters fragment & CRC error packets
    • Optional 19" rack-mounted kits

  • Standards
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3x
    Media Support
    • 10Base-T: Cat.3, 4 or 5 TP
    • 100Base-TX: Cat.5 TP
    Data Transfer Rate
    • 200/100/20/10Mbps
    Forwarding/Filtering Rate
    • 10Mbps: 14,880pps
    • 100Mbps: 148,800pps
    MAC Address
    • Supports up to 8K MAC address
    Buffer Memory
    • Embedded 160Kbytes packet buffer
    Duplex Modes
    • Auto-Negotiation
    • Auto MDI/MDIX Crossover function for each port
    LED Indicators
    • System: Power
    • Port: Link/Activity, 10/100Mbps
    Rack-mounted kits
    • 19 inch (Optional)
    Power Supply
    • Internal Power supply 100~240VAC, 50/60 Hz
    • Operating Temperature: 0°C ~ 45°C
    • Operating Humidity: 10%~90% (Non-Condensing)
    • 280 * 161* 44 mm
    • FCC, CE

  • RP-1716DR2 16-P Fast Ethernet Switch (Desk Top)
    RP-1724DR 24-P Fast Ethernet Switch (Desk Top)
