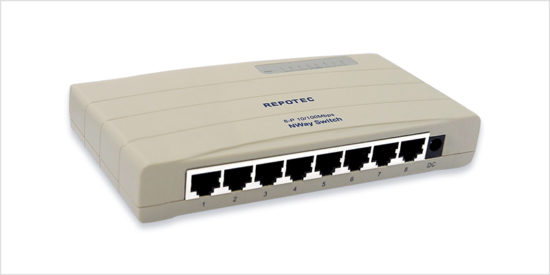

RP-1708K


RP-1708K
8-P Fast Ethernet Switch

  • RP-1708K provide a network with eight independent bandwidths speed Nway ports with TP.

    All of the ports support automatic MDI/MDIX crossover and Auto-negotiation function.

    Besides, these ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex.

    RP-1708K is a Plug-n-Play Switch, each port can be plugged directly to a server, router, or switch using regular straight-through twisted-pair Ethernet cables, so no confusing configuration is needed.

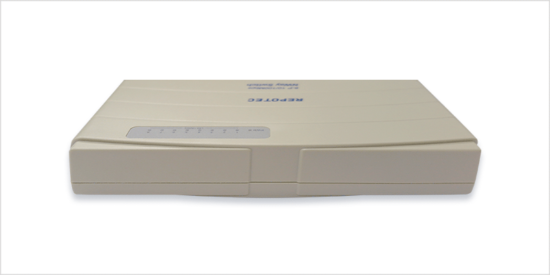

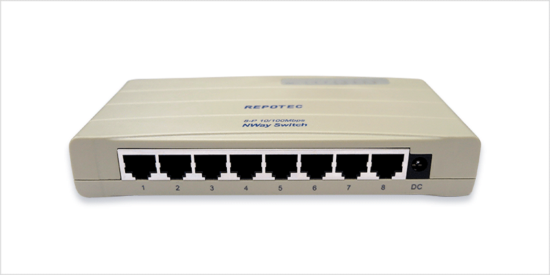

    RP-1708K offers user a friendly design with LED indicators per port which is located on top of the panel, and TP ports neatly placed along the front panel. To instantly add five/eight new bandwidths, or to upgrade the performance of any network.

    • 8 ports Switched ports with Auto-negotiation function
    • Full wire speed "Store-and-Forward" technology instantly eliminates bad packets
    • Filtering/Forwarding Rate: 148,800 packets/sec. per port Max
    • IEEE 802.3x Flow Control support for Full Duplex operation
    • Back-Pressure support for Half Duplex operation
    • IEEE 802.3u and 802.3 standards comply
    • Plug-n-Play with easy to read diagnostic LEDs
    • 8 ports Auto MDI-X detects and corrects crossover cables
    • Support Green Ethernet (Link-On Cable Length Power Saving and Link-Down Power Saving)
    • Supports IEEE802.3az Energy Efficient Ethernet

  • Standards
    • 100Base-TX, IEEE 802.3u
    • 10Base-T, IEEE 802.3
    • IEEE802.3az EEE
    Interface
    • 8 x 100Base-TX/10Base-T
    MAC Table
    • 2K
    Jumbo Frame
    • 2K bytes
    Media Support
    • 100Base-TX: Cat.5 TP
    • 10Base-T: Cat.3, 4 or 5 TP
    Data Transfer Rate
    • 100Base-TX/10Base-T: 200/100/20/10Mbps, via Auto-Negotiation
    Forwarding / Filtering Rate
    • 148810 packets/second per port @ 100Mbps, Max
    • 14880 packets/second per port @ 10Mbps, Max
    Duplex Modes
    • All ports support Half Duplex and Full Duplex operation
    Auto MDIX
    • All ports support Auto MDI-X which can detect and corrects crossover cables
    LED Indicators
    • One for Power On/Off
    • Per port for Link/Activity
    Cabinet
    • Plastic case
    Power consumption
    • 2.6W (8P)
    Power Supply
    • External Power Adapter DC 9V
    Environment
    • Operating Temperature: 0°C~45°C
    • Operating Humidity: 10%~90% (Non-Condensing)
    Dimension
    • 160 * 83 * 26mm
    Certification
    • FCC, CE

  • RP- 1705K 5-P Fast Ethernet Switch (Plastic case)
    RP- 1708K 8-P Fast Ethernet Switch (Plastic case)
