RP-IDR60-24


RP-IDR60-24

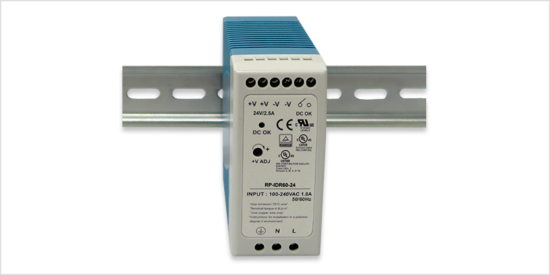

24V / 60W Single Output Industrial DIN Rail Power Supply

  • RP-IDR60-24 DC Single Output Industrial DIN Rail Power Supply provides a reliable DC power source for industrial control system. It operates reliably in heavy industrial demanding environments the range from -20°C to 70°C. Compact enclosures with DIN rail mounting for efficient use of cabinet space meets industrial standards and approvals, thus, it can be placed in almost any difficult environments.

    RP-IDR60-24 offers short circuit, over load, over voltage, and over temperature protection. They have passed a 100% full load burn-in test, and are UL/CUL listed, TÜV/CB certified, and CE marked. RP-IDR60-24 is available with output rating 60W, with 24 VDC output. User can choose from a full range of input voltages (85 to 264 VAC) making it unbeatable.



    • Economical and reliable DC power source for industrial devices
    • -20 to 70°C operating temperature range
    • Design for use in harsh industrial environment
    • Universal AC input/Full range
    • Protections: Short circuit/Overload/Over voltage
    • Cooling by free air convection

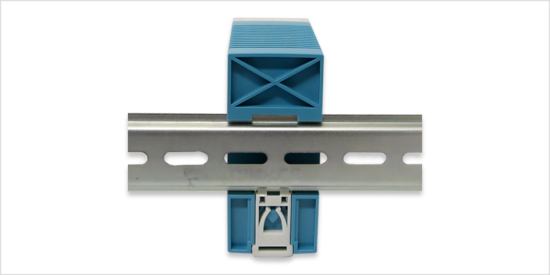

    • Can be installed on DIN rail TS-35/7.5 or 15
    • LED indicator for power on
    • DC OK relay contact
    • No load power consumption<0.75W



  • Input
    • 85 ~ 264 VAC, 47 ~ 63 Hz,1.8A, 120-370VDC
    Output
    • 24 VDC, 0~2.5A, 60W
    Over-voltage Protection
    • 31.2-36 V
    • Type: Shut down o/p voltage, re-power on to recover
    Overload Protection
    • 105-160% rated output power
    • Type: Constant current limiting, recovers automatically after fault condition is removed
    DC OK Relay Contact
    • Contact Close
      When the output voltage reaches the adjusted output voltage.
    • Contact Open
      When the output voltage drop below 90% output voltage.
    • Contact Ratings (max.)
      30V/1A resistive load
    Environmental
    • Operating Temperature: -20 ~ +70°C
    • Operating Humidity: 20 ~ 90% RH non-condensing
    • Storage Temperature: -40 ~ +85°C
    • Storage Humidity: 10 ~ 95% RH
    Dimensions
    • W40 x H90 x D100 mm
    Weight
    • 330 g
    Safety Standards
    • TÜV EN60950-1, UL508 Approved
    EMC Standards
    • CISPR22 (EN55022) Class B, EN61000-4-2/3/4/5/6/8/11, ENV50204, EN61000-3-2, EN50082-2
