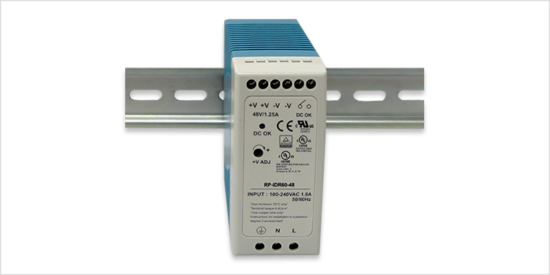

Industrial Power supply - RP-IDR60-48

RP-IDR60-48 DC Single Output Industrial DIN Rail Power Supply provides a reliable DC power source for any industrial control system. It operates reliably in heavy industrial demanding environments the range from -20°C to 70°C. Compact enclosures with DIN rail mounting for efficient use of cabinet space meets industrial standards and approvals, thus, it can be placed in almost any difficult environments.

RP-IDR60-48 offers short circuit, over load, over voltage, and over temperature protection. They have passed a 100% full load burn-in test, and are UL/CUL listed, TÜV/CB certified, and CE marked. RP-IDR60-48 is available with output rating 60W, with 48 VDC output. User can choose from a full range of input voltages (85 to 264 VAC) making it unbeatable.
- Economical and reliable DC power source for industrial devices
- -20 to 70°C operating temperature range
- Design for use in harsh industrial environment
- Universal AC input/Full range
- Protections: Short circuit/Overload/Over voltage
- Cooling by free air convection

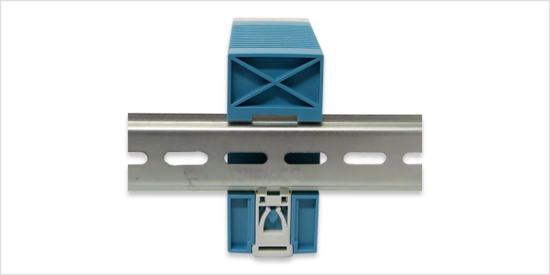

- Can be installed on DIN rail TS-35/7.5 or 15
- LED indicator for power on
- DC OK relay contact
- No load power consumption<0.75W

Input	85 ~ 264 VAC, 47 ~ 63 Hz,1.8A, 120-370VDC
Output	48 VDC, 0~1.25A, 60W Voltage adjustable range: 48-56V
Over-voltage Protection	6 ~ 64.8V Type: Shut down o/p voltage, re-power on to recover
Overload Protection	105-160% rated output power Type: Constant current limiting, recovers automatically after fault condition is removed
DC OK Relay Contact	Contact Close When the output voltage reaches the adjusted output voltage. Contact Open When the output voltage drop below 90% output voltage. Contact Ratings (max.) 30V/1A resistive load
Environmental	Operating Temperature: -20 ~ +70°C Operating Humidity: 20 ~ 90% RH non-condensing Storage Temperature: -40 ~ +85°C Storage Humidity: 10 ~ 95% RH
Dimensions	W40 x H90 x D100 mm
Weight	330 g
Safety Standards	TÜV EN60950-1, UL508 Approved
EMC Standards	CISPR22 (EN55022) Class B, EN61000-4-2/3/4/5/6/8/11, ENV50204, EN61000-3-2, EN50082-2
