1200VA~8000VA Line Interactive pure sine wave Inverter
Model: RP-INS1200 Series
- Un-limited load applicability
- Un-limited batteries backup time
- 24 hours operation on the inverter
- Multi-stage charger (supports up to 600AH batteries)
- Compatible with both linear & non-linear loads
- Controllable & removable panel with LCD
- Parameter pre-settable
- Low DC voltage supports office and home appliances
- DC start and automatic self-diagnostic function
- High efficiency design (energy-saving)
- Low heat dissipation during long-time operation
- Designed for harsh environments
- Optional multiple interface cards available
- Supports solar panel integration (optional)
RP-INS1200 Series, a versatile and powerful all-in-one inverter delivering exceptional clean true sine wave power. With a range of 1200VA to 8000VA, it efficiently powers a wide array of appliances in various settings, from offices to homes and industries. From cell phone chargers to circular saws, drills, printers, and more, the RP-INS1200 series ensures reliable and uninterrupted power supply.
Ideal for job sites, travel, camps, and power failure emergencies, this inverter is engineered for durability and resilience. It seamlessly connects to unlimited batteries, enabling 24-hour non-stop operation. The built-in 5-stage intelligent charger ensures efficient charging without the risk of overcharge. For eco-friendly users, an optional solar charger server allows parallel operation with utility power.
The compact and modular design simplifies utility interactive installations, reducing costs. Exceptional performance and reliability make it a top choice for residential and commercial applications. Whether powering appliances at home, office, or industrial settings, the RP-INS1200 series guarantees optimal performance and peace of mind.
- Un-limited load applicability
- Un-limited batteries backup time
- 24 hours operation on the inverter
- Multi-stage charger supports batteries up to 600AH
- Compatible with both linear & non-linear load
- Controllable & Removable panel with LCD
- Parameter pre-settable
- Low DC Voltage supports Office and Home appliances
- DC start and automatic self-diagnostic function
- High efficiency design to save electricity
- Low heat dissipation in long time operation
- Designed to operate under harsh environment
- Optional Multiple interfaces cards available
- Support solar panel (Optional)

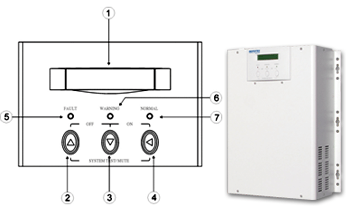

Front Panel
1. LCD Display
2. Up-key
3. Down-key
4. Enter-Key
5. Fault LED (red)
6. Warning LED (yellow)
7. Normal LED (green)
8. ON/TEST/MUTE key
Back Panel
1.2KVA Wall Mounted Type | |
1.BATTERY(+) 2.BATTERY(-) 3.Intelligent Slot 4.Remote Control 5.Breaker 6.Terminal 7.Solar |
|
2.4KVA / 3.6KVA Wall Mounted Type | |
1. BATTERY(+) 2. BATTERY(-) 3. Intelligent Slot 4. Remote Control 5. Breaker 6. Terminal 7. Solar |
|
3.5KVA / 6KVA / 8KVA Wall Mounted Type | |
1. BATTERY(+) |
Model | Mode | RP-INS1200 | RP-INS2400 | RP-INS3600 | RP-INS5000 | RP-INS6000 | RP-INS8000 | |
Capacity | VA / Watt | 1.2KVA / 800W | 2.4KVA / 1600W | 3.6KVA / 2400W | 5KVA / 4000W | 6KVA / 6000W | 8KVA /8000W | |
Input | Nominal Voltage | 230Vac / 120Vac | 230Vac(only) | |||||
Voltage Range | Acceptable Voltage Range | 120Vac-270Vac / 60Vac-135Vac | 120Vac-270Vac | |||||
Frequency | 50Hz / 60Hz Auto Sensing ( 45Hz - 70Hz) | |||||||
Line Low Transfer | 120Vac ± 2% ; 60Vac ± 2% | 120Vac ± 2% | ||||||
Line Low Return | 130Vac ± 2% ; 65Vac ± 2% | 130Vac ± 2% | ||||||
Line High Transfer | 270Vac ± 2% ; 135Vac ± 2% | 270Vac ± 2% | ||||||
Line High Return | 260Vac ± 2% ; 130Vac ± 2% | 260Vac ± 2% | ||||||
Output | Voltage | 230Vac (220V or 240Vac re-settable via LCD panel); 120Vac (110V or 115Vac re-settable via LCD panel) |
||||||
Voltage Regulation | Line Mode | Follow Ac Line Voltage | ||||||
Battery Mode | < 3% RMS for entire battery voltage range | |||||||
Frequency Regulation | Line Mode | Follow Ac Line Hz | ||||||
Battery Mode | 50Hz or 60Hz ±0.1Hz | |||||||
Waveform | Pure Sine wave | |||||||
Power Factor | 0.67 | 0.8 | 1 | |||||
Efficiency | > 75% | > 80% | ||||||
Overload Protection | Line Mode | Circuit Breaker | ||||||
Battery Mode | 110% ~ 150% for 30 sec. , >150% for 200ms | |||||||
Transfer Time | Typical | < 8 ms. | ||||||
Battery | Battery Voltage | 24Vdc | 24Vdc | 24Vdc | 24Vdc | 48Vdc | ||
Backup Time(at Full Load) | Long Time Available | |||||||
Charging Current(3 Steps Selectable) | 10~30A | 10~ 40A | 10~50A | |||||
Display for LCD(Option) | LCD | UPS status, I/P&O/P Voltage Frequency, Load%, | ||||||
Battery Voltage & %, Temperature, Model | ||||||||
LED | Normal (Green), Warning (Yellow), Fault (Red) | |||||||
Audible Alarm | Battery Mode | Beeping every 4 seconds | ||||||
Low Battery | Beeping every second | |||||||
UPS Fault | Beeping Continuously | |||||||
Overload | Beeping twice per second | |||||||
Environment | Operation Temperature | 0-40 degree C; 32-104 degree F | ||||||
Relative Humidity | 0-95% non-dondensing | |||||||
Audible Noise | Less than 45dBA (at 1M) | Less than 46dBA (at 1M) | ||||||
Physical | Net Weigh (Kgs) | 14.8 | 23 | 24.2 | 49.2Kg | 51.4Kg | 53.6Kg | |
Dimension(WxHxD)mm(wall mount) | 298*400*150 | 298*450*190 | 415*600*260 |
*Product specifications are subject to change without further notice.
RP-INS1200 | 1.2KVA/800W Line Interactive pure sine wave Inverter |
RP-INS2400 | 2.4KVA/1600W Line Interactive pure sine wave Inverter |
RP-INS3600 | 3.6KVA/2400W Line Interactive pure sine wave Inverter |
RP-INS5000 | 5KVA/4000W Line Interactive pure sine wave Inverter |
RP-INS6000 | 6KVA/6000W Line Interactive pure sine wave Inverter |
RP-INS8000 | 8KVA/8000W Line Interactive pure sine wave Inverter |
MOD-INSSPC | Solar PC Board |
