RP-IN1000 Series

RP-IN1000 Series

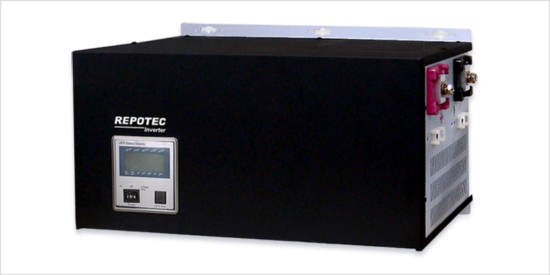

1000VA~3200VA Inverter / Charger

    • 30Amp built in powerful smart charger for long backup time and extended battery life.
    • High efficiency and low idle current to keep low operating costs.
    • Quiet operation, heavy duty reliability.
    • Ecologically smart and user friendly.
    • Back-up, on-line, battery status, power status by LCD display.
    • Short circuit and overload protection.
    • Cold start (DC power on).
    • Advanced battery management (ABM).
    • Charging current can be adjusted by selector.

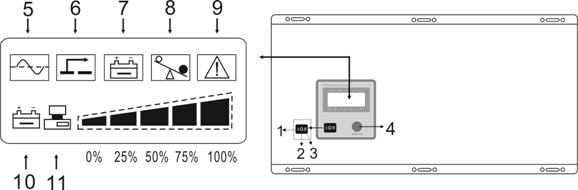

  • Front Panel

    1. Power On
    2. UPS Off
    3. Charger Only
    4. UPS Test Switch
    5. Line-On: AC Normal
    6. O-Temp. : If the UPS is over temperature, the light will turn on and the alarm will sound continuously.
    7. Back-Up: Battery in back-up
    8. Over Load: If the UPS is overloaded, the light will turn on and the alarm will sound continuously
    9. UPS Cut-Off: Overload or Cut-off
    10. Battery Level: A bar graph showing how much of the UPS battery is being used.
    11. Load Level: A bar graph showing how much of the UPS power is being used.

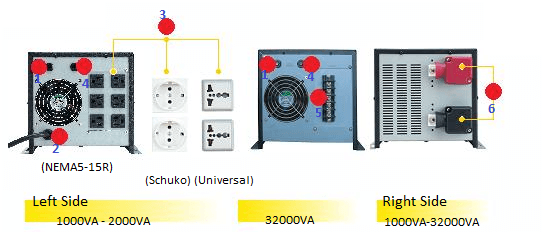

    Back Panel

    1. Input Breaker
    2. AC Input
    3. Outlets
    4. Output Breaker
    5. Terminal for Input & Output
    6. Battery terminal (DC Input Connector)

  • Model RP-IN1000 RP-IN1500 RP-IN2000 RP-IN3200
    Capacity 1000VA/600W 1500VA/900W 2000VA/1200W 3200VA/2000W
    Input AC Voltage 110/115/120VAC or 220/230/240VAC,1 Phase + Neutral
    Voltage Tolerance (AC) 90VAC~135VAC or 187VAC ~264VAC  +/- 4%
    DC Voltage 12VDC 24VDC
    Voltage Tolerance (DC) 10VDC~14VDC 20VDC~26VDC
    Frequency 47Hz~53Hz or 57Hz~63Hz
    Output Voltage 110/115/120VAC or 220/230/240VAC
    Voltage Tolerance

    (Batt. Mode)

    		 +/- 7%
    Frequency 50Hz or 60Hz
    Frequency Tolerance +/- 1Hz in Battery Mode
    Transfer Time < 10ms (Typical)
    Voltage Waveform Modified Sinewave
    Battery Type Maintenance free dry type (suggested)
    Capacity Up to 1000Ah
    Battery Low Level 10.8V +/-0.2V 21V +/-0.5V
    Battery Cut off Level 10V +/-0.2V 20V +/-0.5V
    Battery House External; Rack or Cabinet (Optional)
    Charger Battery Charge Voltage 13.6VD C+/-0.2VDC 27.5VDC +/-0.3VDC
    Charge Capacity 30A max. (Adjustable)
    Over Charge Protection 14.5VDC +/-0.5VDC 29VDC +/-0.5VDC
    Display &

    Control Panel

    		 Control Panel Power On/Off & UPS Test button, Battery charge current adjustment
    Indicators Line Mode Line-on LCD lighting
    Battery Mode Back-Up LCD lighting
    Overload O-Load LCD lighting
    Over Temp. O-Temp. LCD lighting
    UPS off Cut off LCD lighting
    Load Level 5-step LCD lighting
    Battery Level 5-step LCD lighting
    Protection Full Protection Overload, Short circuit, Over charge, Over temperature, Input & Output fuse
    Environment Audible Noise Less than < 45dBA (at 1meter)
    Operating Temp. 0 ~ 40 ℃
    Storage Temp. -20℃~+70℃
    Relative Humidity Maximum 0 ~ 90%(non-condensing)
    Type of Cooling Forced with fan
    Installation Height < 3000 meters, elevation
    Physical Dimension(D*W*H) 430*200*203mm
    Weight,w/o Battery 11Kgs 14Kgs 16Kgs 20Kgs

    *Product specifications are subject to change without further notice.

  • RP-IN1000 1000VA/600W Inverter / Charger
    RP-IN1500 1500VA/900W Inverter / Charger
    RP-IN2000 2000VA/1200W Inverter / Charger
    RP-IN3200 3200VA/2000W Inverter / Charger
