RP-PGJ159


RP-PGJ159
Gigabit 802.3bt 90W PoE Injector

Datasheet
Manual

  • RP-PGJ159 is a single port, IEEE 802.3bt 60w / 90w PoE PSE solution for remote PoE PD devices. Generating up to 60W / 90W through CAT5 or CAT6 4 pair UTP cable, it increases flexibility in the positioning of a PoE enabled device by eliminating for a nearby power source.

    RP-PGJ159  supplies remote power for new applications such as wireless Access Points, pan-tilt-zoom (PTZ) IP cameras, lighting, Panel display for digital signage and video-phones. It complies to IEEE 802.3bt PoE++ standard to deliver 60w / 90w on both end-point and mid-span pairs with a total power of 60w / 90w PoE output. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.

    The RP-PGJ159 is plug-and-play without any software configuration .Its metal housing design is more suitable for different environment application. Over current protection and circuit shorting protection are also supported to ensure the safety.

    • One port 10/100/1000 (Data) for connection to the Ethernet Switch
    • One port 10/100/1000 4-Pair PoE (Power/Data) for connection to the PoE device (PD)
    • Automatic detects if the connected device is PoE enabled to avoid sending power to a non-PoE device
    • Complies with IEEE802.3, 802.3u, 802.3ab, 802.3bz, 802.3af, 802.3at, 802.3bt standards
    • Supports Full-Range (100~240VAC) Internal power supply
    • Fanless, Metal case, Small size, no noise



  • Standard
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE 802.3bt/at/af Power over Ethernet

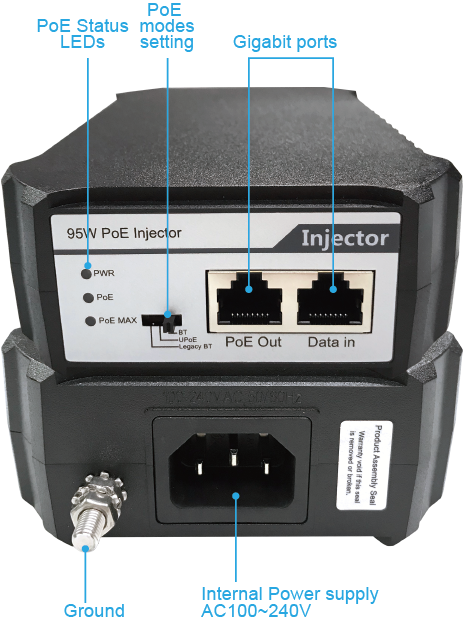

    Interface
    • 1 x 4-Pair PoE PSE 10/100/1000Mbps RJ-45 port (Power/Data Out)
    • 1 x 10/100/1000Mbps RJ-45 port (Data In)
    Data Rates
    • 10/100/1000Mbps
    PoE Power Budget
    • 90Watt @56V via 4-pair PoE
    PoE Pin Assignment
    • Mode A (End-Span): 1/2 (-), 3/6 (+)
    • Mode B (Mid-Span): 4/5 (+), 7/8 (-)
    Power Supply
    • Internal power 100~240VAC input, 50~60Hz, 56V

    LED Indications
    • Power, Mode A, Mode B
    Installation
    • Wall-mount and Desktop, Metal case
    Environmental
    • Operating Temperature: 0~40°C
    • Storage Temperature: -10~70°C
    • Operating Humidity: 20%~95% (Non-condensing)
    Dimensions
    • 159 x 76.5 x 39mm (L x W x H)
    Certification
    • FCC, CE, LVD

  • RP-PGJ159 Gigabit 802.3bt 90W PoE Injector
