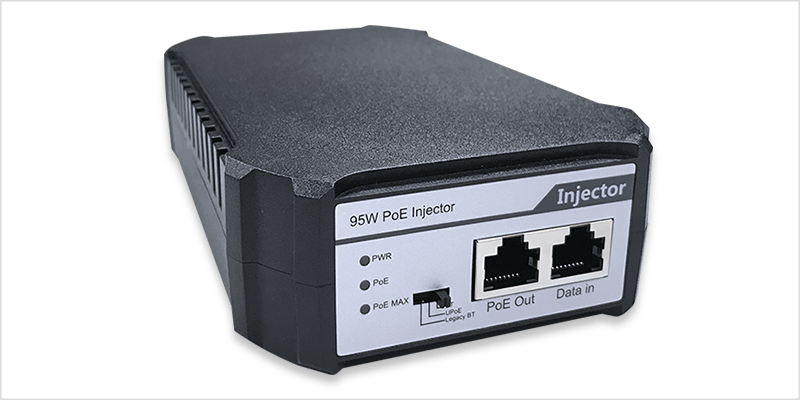

RP-PGJ159B

The RP-PGJ159B is a 95W Gigabit PoE injector that delivers both power and data over a single Ethernet cable. It supports 4-pair power supply and complies with IEEE 802.3af/at/bt standards, making it ideal for high-power PDs.

It automatically detects and identifies IEEE-compliant powered devices (PDs) and adjusts the output power accordingly. It supports transmission distances of up to 100 meters over standard Cat5e/6 Ethernet cables.

For non-PoE terminal devices, the RP-PGJ159B can be used with a PoE splitter to separate power and data. This enables flexible network expansion while reducing installation costs and the need for extra power lines.

• Support IEEE 802.3bt standard, compatible with IEEE 802.3 af/at/bt electrical equipment (PD)
• Four pairs of power supply are adopted to reduce power loss on the network cables and increase the output power
• Smart PoE Detection – Automatically detects IEEE-compliant PDs and adjusts output accordingly for safe and efficient power delivery
• Supports both Mode A (End-Span) and Mode B (Mid-Span) pin outs for compatibility with various network devices
• Single port maximum output power up to 95W
• Data transmission and power supply distance up to 100 meters
• Supports 10/100/1000Mbps gigabit data rates to ensure seamless data
• Intelligent protection and power supply

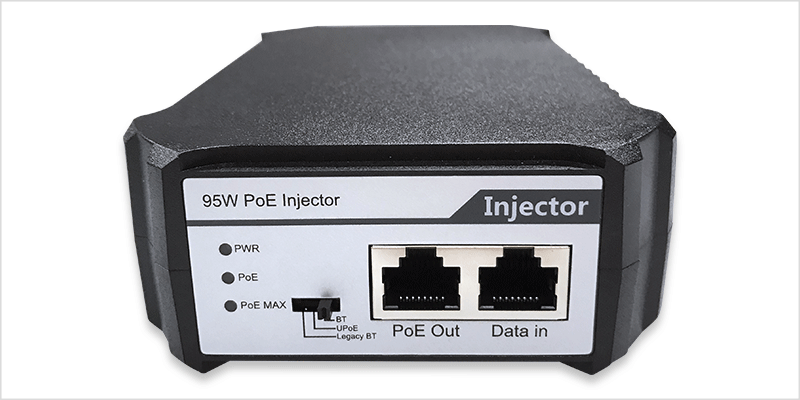

• Multiple PoE modes with one-click selection: BT, Legacy BT, and UPoE
• Flexible Installation for both wall-mount and desktop installation
