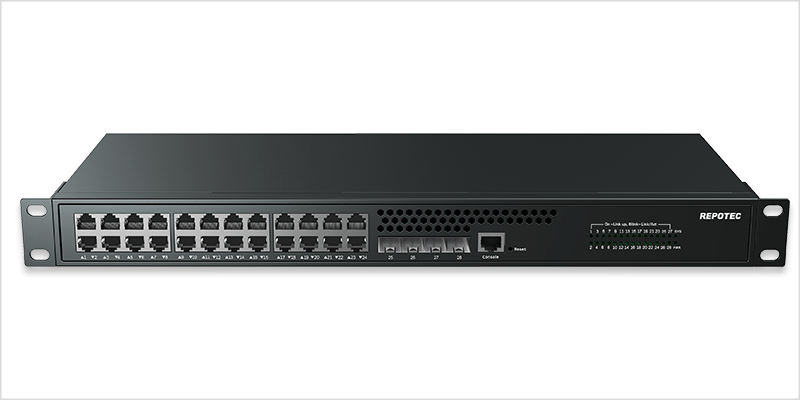

RP-G83240I-4F-S

RP-G83240I-4F-S, a versatile Layer 2+ managed Gigabit switch designed for enterprise networks. With 24 gigabit ports and 4 *1G/2.5G SFP slots, this switch delivers full Gigabit access and impressive scalability, achieving exceptional 2.5G performance. It supports Layer 3 static routing and offers a switching capacity of 68 Gbps.

The RP-G83240I-4F-S meets the needs of modern networks, providing comprehensive QoS capabilities, flexible management, and robust security features at a cost-effective price. It ensures high-speed, secure, and intelligent networking for enterprises. The switch offers advanced protocols, VLAN classification options, port mirroring, layer 2 ring network protocols, multicast support, and comprehensive QoS features.

With support for LLDP, user management, SNMP, web management, firmware updates, and utilities like Ping and Tracert, the RP-G83240I-4F-S simplifies network monitoring and maintenance. It empowers enterprises with reliable performance and efficient network operations.

• Supports GE ports, 2.5GE port aggregation, static and dynamic aggregation
• Layer 3 features: IPv4/IPv6 static routing, DHCPv4/ DHCPv6 client, DHCPv4 relay, DHCP relay
• Port features: Supports port aggregation, IEEE802.3x flow control, port isolation, port mirroring, loop detection and broadcast storm suppression
• VLAN: Supports IEEE802.1Q tagged VLAN, mac based VLAN, IP based VLAN, protocol based VLAN, voice VLAN and private VLAN.
• QinQ: Supports port-based, VLAN-based and flow-based Qin
• Supports GVRP/LLDP/SPAN/RSPAN/DHCPv4 snooping

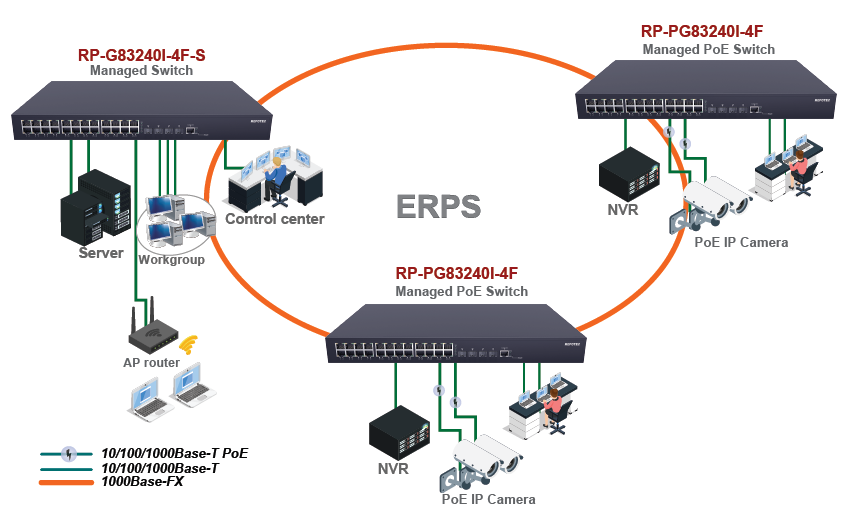

• Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
• Multicast: IGMP snooping, IGMP v1, v2, v3, PIM-SM
• QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Egress port-based rate-limit and policy-based QoS
• Security: Supports ACL, 802.1x，port-security, IP source guard, ARP-check, DAI, anti-gateway ARP spoofing, Ddos attack protection, telnet/SSH/HTTP/HTTPS user access control and AAA
• Reliability: Loop detect based on port or VLAN, the Ethernet in the first mile 802.3ah
• Management: Supports IPv4/IPv6 dual stack management, system log management, user management, login service management, firmware management, web management, CLI management, fault detection, DNS,NTP, sFlow, SNMP, MQTT, RMON and dual partition management
