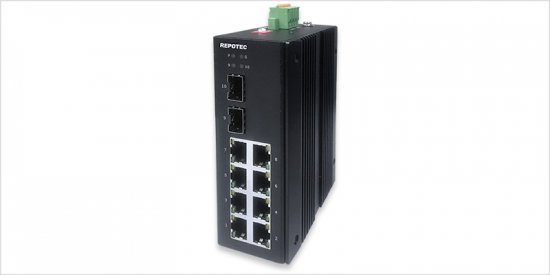

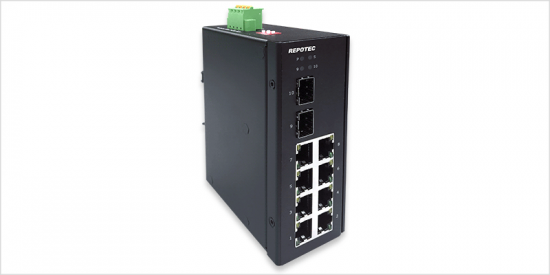

8-Gigabit PoE + 2-SFP(1G) Industrial PoE Switch
Model: RP-IPG382
- 8-P*1000Base-T PoE+ 2*1000Base-X SFP
- DC 44~57V input, redundant power
- DIP switch: PoE Watchdog, Port Isolation, QoS
- Overload current & reverse polarity protection
- Surge and ESD protection
- With an aluminum heat-dissipating metal shell
- IP40, Fan-less, DIN rail/wall mounting
RP-IPG382 is the highly reliable industrial PoE switch with 8-port 10/100/1000-T PoE+ and 2 1000Base-X fiber optic interfaces. It adheres to IEEE 802.3af/at PoE standards, delivering up to 30W per port for powering devices like IP cameras and access points. The switch's DIP switch configuration simplifies setup, enabling functions such as port isolation, QoS, and PoE watchdog.
With a wide power input range of 44-57VDC and redundant power design, RP-IPG382 ensures system reliability, even in challenging environments. Its fan-less, IP40-rated cabinet and DIN-rail installation capability make it ideal for industrial use. It can operate seamlessly in temperatures ranging from -40℃ to 75℃ and offers high-level EMI/EMC protection.
RP-IPG382 shines in heavy industrial settings like factories, transportation systems, oil and gas facilities, chemical plants, IP surveillance, and processing automation. It excels in environments that exceed commercial product specifications, making it the top choice for industrial Ethernet networking, thanks to its rugged design and versatile features.

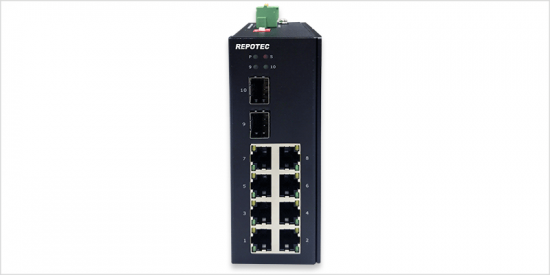

- 8*10/100/1000Base-T RJ45 PoE ports, 2*1000Base-X SFP slots

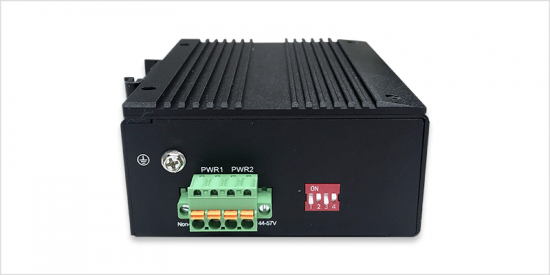

- DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
- Complies with IEEE802.3af /at PoE+ standard
- Support powerful DIP switch function: DIP 1: Port isolation; DIP 2: 250m long distance (1-4 ports); DIP 3: QoS(1-2 ports) ; DIP 4: PoE watchdog
- Support 10K Bytes Jumbo frame
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection

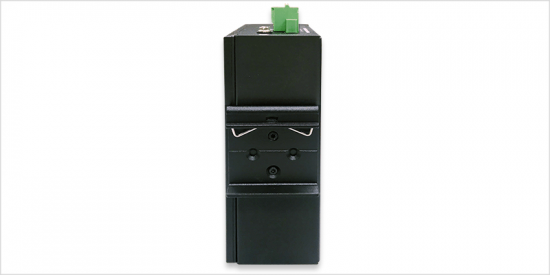

- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~ +75°C
Standards |
|
Interface |
|
DIP Switch |
|
Switching capacity |
|
Packet forwarding rate |
|
MAC address table |
|
VLAN |
|
Buffer |
|
Forwarding delay |
|
Jumbo Frame |
|
MDX/MIDX |
|
Watchdog |
|
Power parameters | |
Input voltage |
|
Input current |
|
PoE power budget |
|
Connector |
|
Reverse polarity protection |
|
Over-voltage protection |
|
Mechanical structure | |
LED Indicators |
|
Case protection |
|
Installation method |
|
Dimension |
|
Environment |
|
EMS |
|
EMI |
|
Certification |
|
RP-IPG382 | 8-Gigabit PoE + 2-SFP(1G) Industrial PoE Switch |
