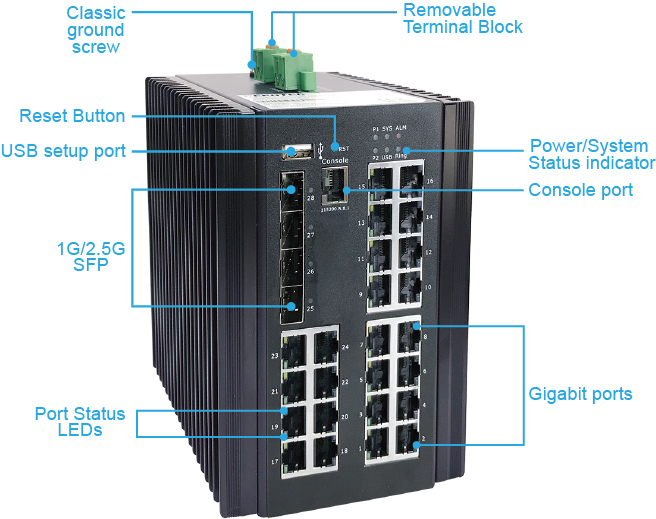

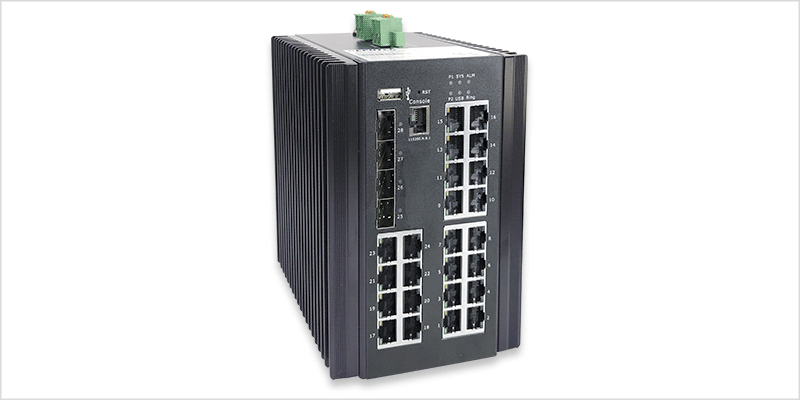

The RP-ISG6324I-4F is a highly reliable Layer 2+ managed industrial Ethernet switch, equipped with 24×10/100/1000Base-T RJ45 ports and 4×1G/2.5GBase-X SFP slots. With full gigabit capability, it delivers high performance and rapid transmission of large volumes of video, voice, and data, making it well-suited for high-bandwidth industrial applications.
This model supports rich Layer 2 management features, including optional DI/DO/RS485 interfaces, G.8032 ERPS ring protection, MSTP/RSTP/STP redundancy, IPv4/IPv6 static routing, and a built-in DHCP server. With advanced network security and traffic control, it ensures stable and resilient connectivity for mission-critical networks.
Engineered for tough environments, it features a fan-less IP40-rated metal housing, DIN-rail installation, dual 12–75V DC power inputs, and a wide -40°C to 80°C operating range. With strong EMI/EMC resistance, it is ideal for deployment in industrial automation, transportation systems, energy sectors, and surveillance networks.
Datasheet
