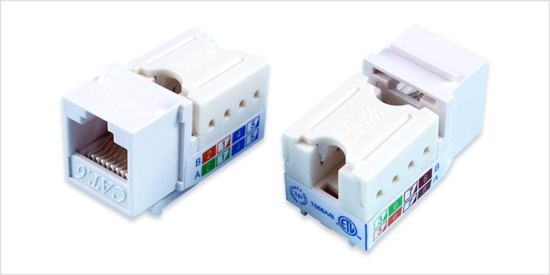

Unshielded Keystone Jack, IDC type

Specifications

• Meet ANSI/TIA/EIA-568-B.2 Category 5e /
  Meet ANSI/TIA/EIA-568-B.2-1 Category 6
• Meet ISO/IEC Generic Cabling Standard 11801
• Meet CENELEC Generic Cabling Standard EN50173

Electrical

• According to UL1863
• Current Rating:5 Amp Max.
• Voltage Rating: 150 Volts
• Contact Resistance: 20m-ohm
• Insulation Resistance: 500M-ohm
• Dielectric Withstand Voltage: 1000 VAC RMS, 60Hz 1MIN

Materials

• Housing: ABS UL94V-0
• IDC: PC UL94V-0, Accept 22-26 AWG Solid Cable
• PCB: FR4 6m/m thickness, 2 layer
• Contact: 0.45m/m Phosphor bronze with 50u" Gold plating on contact area
