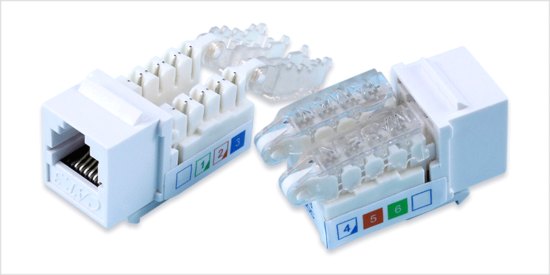

RJ12 (6P6C) Keystone Jack

Features

• Conductor color code according to T568B and T568A
• Contacts color marking of on the transparent module cover
• Linear conductor layout
• Conductor connection by simple cover latching
• Hyperline telephone patch cords usage provides the best connection

Electrical

• According to UL1863
• Current Rating:5 Amp Max.
• Voltage Rating: 150 Volts
• Contact Resistance: 20m-ohm
• Insulation Resistance: 500M-ohm
• Dielectric Withstand Voltage: 1000 VAC RMS, 60Hz 1MIN

Materials

• Housing: ABS UL94V-0
• IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire
• 6P6C
