RP-UPH603T | RP-UPH104T


RP-UPH603T/RP-UPH104T
6KVA / 10KVA Double conversion On-Line UPS High Frequency Type

    • True Sine-wave double conversion on-line UPS
    • Multiple Microprocessor High frequency design & DSP Technology
    • Unity input power factor and wide input range
    • Extended backup time
    • Two-way dialogue interactive dot-matrix LCD control panel
    • Detachable LCD or LED Control Panel selectable
    • Communication ports selectable: Smart RS232, SNMP, AS-400, USB and DB-9
    • DC start and automatic self-diagnostic function
    • Low heat dissipation in long time operation
    • High efficiency design to save electricity
    • Enhanced protections against lighting surges, disturbances etc.
    • Designed to operate under harsh environment

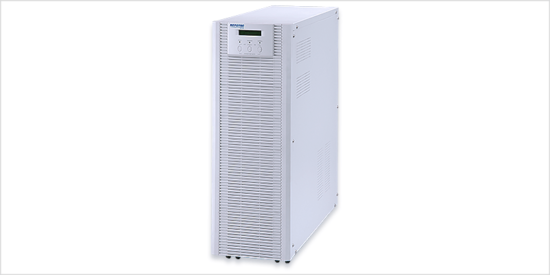

  • Front Panel

    1. LCD Display

    2. Up-key

    3. Down-key

    4. Enter-Key

    5. Fault LED (red)

    6. Warning LED (yellow)

    7. Normal LED (green)

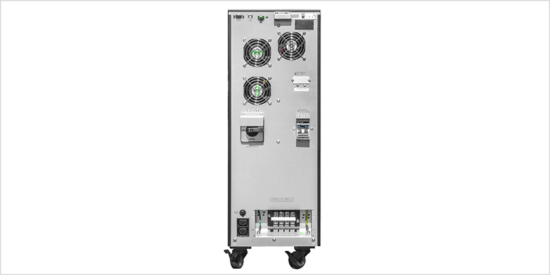

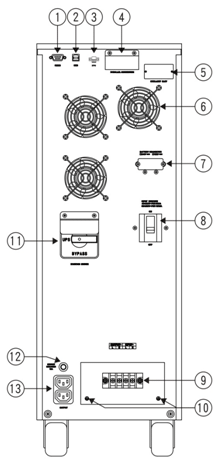

    Back Panel

    1. Communication port

    2. Intelligent Slot

    3. Cooling Fan

    4. Parallel Port

    5. External Battery

    6. Input Breaker

    7. Maintenance Bypass Switch

    8. Terminal







  • Model

    RP-UPH-603T

    RP-UPH104T

    Input Capacity 6KVA/4200W 10KVA/7000W
    Phase Single Phase
    Nominal Voltage 1P2W 220Vac
    Voltage Range 176-276Vac ±3Vac
    Frequency 50Hz / 60Hz ± 4Hz
    Power Factor ≥0.98
    Output Voltage 220VAC ± 1%(230V or 240V re-settable via LCD panel)
    Frequency Synchronized ( Line mode); 50Hz or 60Hz +/-0.5% (Battery mode)
    Wave-form True Sine wave
    Distortion ≤4% (linear load) , ≤7% (non-linear load)
    Overload Capacity 105%~130%: 10 min.,  >130%: 1min
    Crest Ratio 3:1
    Battery DC Voltage 240V
    Capacity 12V/ 7Ah *20pcs 12V/ 9Ah *20pcs
    Back-up Time < 8 min. < 5 min.
    Charger Built-In /Option 2Amp/4.2Amp (2 steps)
    Recharging Time 7 hrs to 90% 8 hrs to 90%
    Bypass Automatic Overload or UPS fault
    By setting NA
    Transfer Time 0 ms (AC to DC & inverter to bypass)
    Indicator LCD (Series)

    UPS status, I/P&O/P Voltage & Frequency, Load %, Battery Voltage, Battery Capacity %, Temperature, Model Spec., Event Log.

    LED: Normal (Green), Warning (Yellow), Fault (Red)

    Outlet Tower Terminal Blocks
    Audible Alarm Battery Mode Beeping every 4 seconds (re-settable)
    Battery Low Beeping every seconds
    Overload Beeping twice per second
    Fault Beeping Continuously
    Interface RS-232 Interface UPSilon2000 monitoring software for Windows all, Unix systems and Novell.
    Multi-Interface Slot SNMP card, AS 400, Dry Contact, USB Selectable
    Network Surge Protection N/A
    Parallel   Available (Option)
    Environment Temperature 0~40°C;32~104°F
    Humidity 0-95% non-condensing
    Acoustic Noise <55 dBA (at 1 M)
    Physical

    Weight

    (w/o Battery

    35 kgs 38kgs

    Weight

    (w/ Battery)

    90 kgs 93kgs
    Dimension W*H*D 260 * 717 * 570mm
    Color White

  • RP-UPH603T 6KVA/4200W Double conversion On-Line UPS(High Frequency) Tower Type
    RP-UPH104T 10KVA/7000W Double conversion On-Line UPS (High Frequency) Tower Type
    MOD-DP504 UPS SNMP Adapter for RP-UPH 6~10KVA series
    MOD-UPHUB300 USB Card for RP-UPH 6~10KAV series
