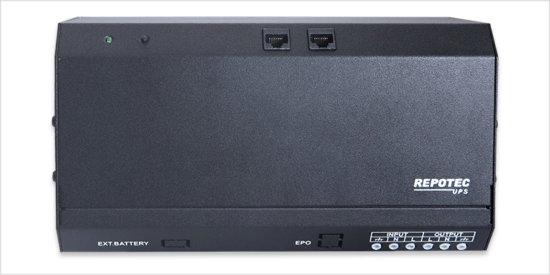

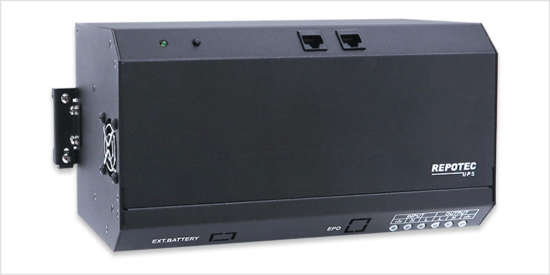

RP-DRS500 | RP-DRS1000


RP-DRS500 | RP-DRS1000
500VA / 1KVA DIN RAIL On-Line UPS

    • It is high frequency based full bridge true sine wave UPS
    • Built-in Lithium-ion or Lead-Acid battery
    • RS-485 interface for communication
    • It can support inductive and any other different loads

  • MODEL RP-DRS500 RP-DRS1000
    Capacity (VA / Watt) 500VA / 300W 1000VA / 500W
    INPUT
    Nominal Voltage 110Vac/115Vac/120Vac or 220Vac/230Vac/240Vac
    Acceptable Voltage Range 85Vac ~ 135Vac or 170Vac ~ 270Vac
    Frequency 50Hz / 60Hz  Auto sensing
    Frequency Range 40 ~ 63Hz
    Line Low Transfer 170Vac ± 5% ; 85Vac ± 5%
    Line Low Return 180Vac ± 5% ; 90Vac ± 5%
    Line High Transfer 270Vac ± 5% ; 135Vac ± 5%
    Line High Return

    260Vac ± 5% ; 130Vac ± 5%

    OUTPUT
    Voltage 110Vac/115Vac/120Vac or 220Vac/230Vac/240Vac
    Waveform Pure sine wave
    Short Circuit  Line Mode Circuit breaker
    Protection  Battery Mode Electronic circuit
    DC START
    Cold Start

    Yes

    TRANSFER TIME
    Typical

    10 ms

    BATTERY
    Voltage 12Vdc 12Vdc
    Type Lead-Acid/7Ah Lead-Acid/7.5Ah
    INDICATOR
    LED

    AC mode(Continuously ), Inverter mode(Flash)

    AUDIBLE ALARM
    Battery  Mode Sounding erery 7 seconds
    Low Battery Sounding every second
    UPS Fault Continuously  sounding
    INTERFACE
    Standard

    RS-485

    ENVIRONMENT
    Operation Temperature 0-40 ℃(32-104 ℉)
    Relative Humidity 0-90% (non-condensing)
    PHYSICAL
    Dimensions(WxHxD)mm 250 * 135 * 115
    Net Weight(Kg)w/o battery 2.8 3.1

    * Specifications are subjected to change without prior notice.

  • RP-DRS500 500VA / 300W Din Rail On-Line UPS
    RP-DRS1000 1000VA / 500W  Din Rail On-Line UPS
