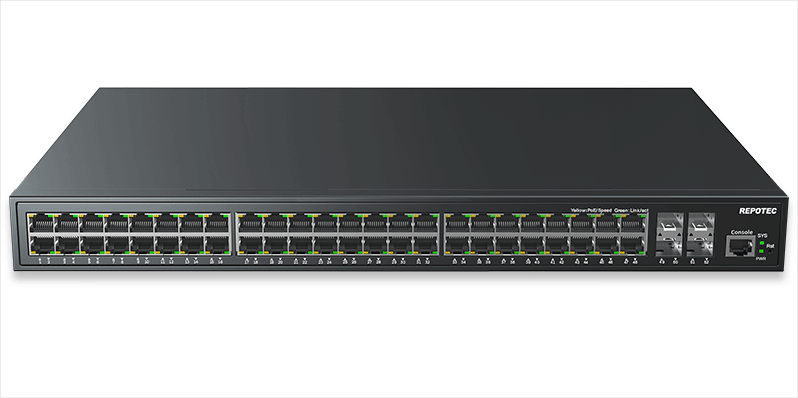

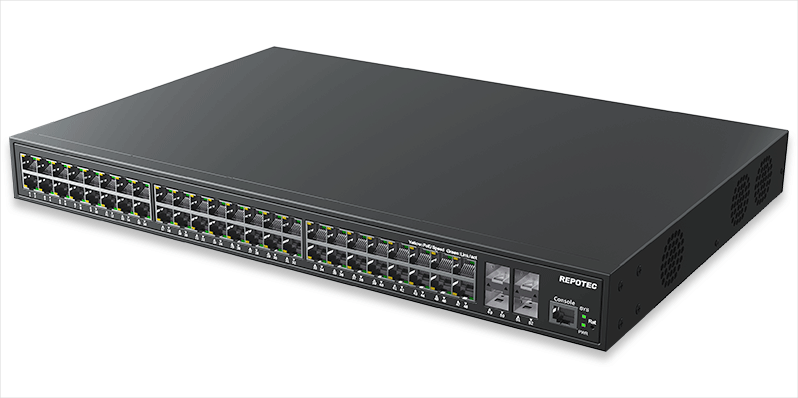

RP-PG85480IX-4F-S/H

RP-PG85480IX-4F-S/H is a high-density Layer 3 Managed PoE Switch designed for enterprise, IP surveillance, smart building, and other demanding network applications. It supports Layer 3 static and dynamic routing, including RIP and OSPF, providing flexible network segmentation, routing, and traffic management for converged data and power networks.

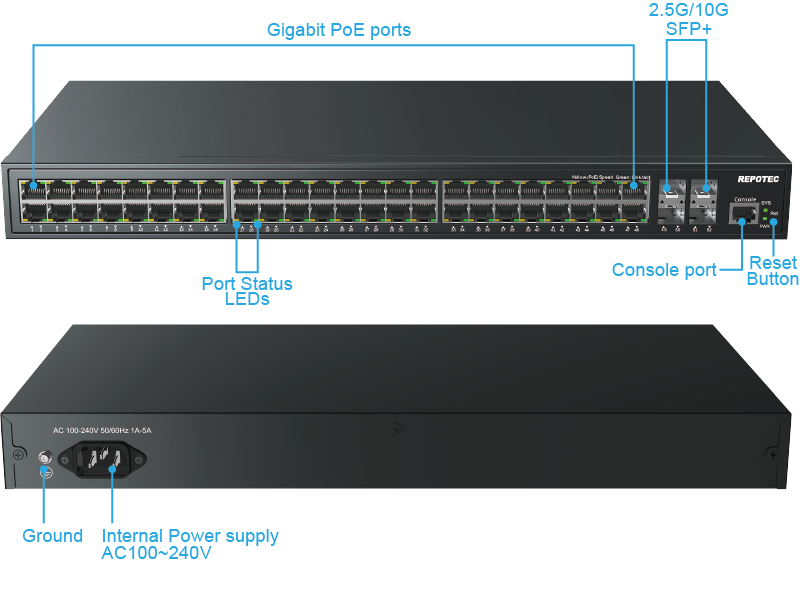

Equipped with 48 × Gigabit PoE ports and 4 × 1G/2.5G/10G SFP+ ports, the switch delivers high-density Gigabit access with flexible high-speed uplink connectivity. With a PoE power budget of up to 740W, it provides reliable power and data transmission for a large number of PoE-powered devices through a single network infrastructure.

Comprehensive Layer 2 and Layer 3 management, QoS, multicast, VLAN, and network security features enable efficient traffic control and reliable network operation. The RP-PG85480IX-4F-S/H is suitable for IP cameras, wireless access points, VoIP phones, smart building systems, and other PoE-enabled network applications requiring high port density and scalable connectivity.

• Layer 3 Routing: IPv4/IPv6 Static Routing, RIP, OSPF, BGP4, IS-IS, VRRP, ECMP; up to 13K Routing Entries
• PoE: IEEE 802.3af/at PoE Support; up to 740W PoE Power Budget
• PoE Management: PD Auto Detection, Per-Port PoE Control, PoE Scheduling, PoE Priority, Power Budget Control, PoE Status Monitoring
• Port Management: Link Aggregation, Flow Control, Port Isolation, Port Mirroring, Loop Detection, Broadcast Storm Suppression
• VLAN: IEEE 802.1Q, MAC/IP/Protocol-based VLAN, Voice VLAN, Private VLAN
• QinQ: Port-based, VLAN-based and Flow-based QinQ
• Layer 2 Ring: STP, RSTP, MSTP, G.8032 ERPS; Single Ring and Sub-Ring
• Multicast: IGMP Snooping, IGMP v1/v2/v3, PIM-SM
• QoS: Traffic Classification, Priority Remarking, SP/WRR Scheduling, Ingress/Egress Rate Limiting, Policy-based QoS
• Network Security: ACL, IEEE 802.1X, Port Security, IP Source Guard, ARP Inspection, DAI, Anti-ARP Spoofing, DDoS Protection
• Network Protocols: GVRP, LLDP, SPAN/RSPAN, DHCP Snooping, IEEE 802.3ah
• Management: IPv4/IPv6 Dual Stack, Web GUI, CLI, SNMP, RMON, sFlow, MQTT, System Log, NTP, DNS
• System Management: User & Access Control, Firmware Upgrade, Fault Detection, Dual Image/Partition Management
• Secure Access: SSH, HTTPS, Telnet, AAA, TACACS, SCP, SFTP, TFTP
