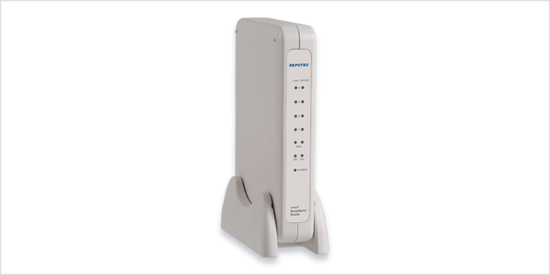

4-P Broadband Router

  • RP-IP509 4-P Broadband Router provides one 10/100Mbps WAN interface to connect with DSL/ Cable Modem/ broadband internet access. Being integrated with 4 ports Fast Ethernet switch and MDI/MDIX auto-sensing is supported on each port,

    RP-IP509 enables users to connect with four PCs, access points, or printers easily. The built-in NAT function can act as a firewall to protect your internal network against outside hackers. Moreover, this router also supports web-based management for users to know its configuration and to upgrade new firmware simply.

    • Integrates with 4 ports Fast Ethernet switch: 10/100Mbps MDI/MDIX auto-sensing
    • Provides 10/100Mbps WAN interface to connect with DSL or cable modem for broadband Internet access
    • Built-in NAT function: Allows multiple PCs and devices to share one Internet connection
    • Browser-based interface configuration and management: OS independent, easy-to-use for consumer installation
    • Built-in firewall to protect your Intranet
    • Supports PPTP, L2TP
    • Easy to upgrade: using Web or Windows Application to upgrade new version of firmware

  • ADSL Features
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • 4-P * LAN, 1-P * WAN
    • Flash 512KB, DRAM 2MB
    Firmware Platform
    • Proprietary Kernel
    Management Method
    • Web-based
    WAN Type
    • Static IP Address
    • Dynamic IP Address (DHCP Client)
    • PPPoE
    • PPTP
    • Dial-Up Network
    Connection Scheme
    • Connect on Demand/Auto-Disconnect
    • Manually Connect/Disconnect
    • Auto Reconnect
    NAT Function
    • One-to-Many NAT
    • One-to-One NAT
    • Virtual Server
    • Special Application
    • DMZ Host
    Access Control
    • MAC-level Access Control
    • Inbound/Outbound IP Filter
    • Domain Access Control
    • NAT Firewall with SPI mode
    • DoS Detection
    Event Logging
    • On-web logging
    • Syslog supported
    Power Supply
    • External power Adapter DC9V, 1A
    • Operating Temperature: -20°C~ 70°C
    • Operating Humidity: 10%~90% (Non-Condensing)
    • 153 * 112 * 26 mm
    • FCC, CE

  • RP-IP509 4-P Broadband Router
