8-10/100M PoE + 2-SFP (1G) Industrial PoE Switch
Model: RP-IPE382
- 8*10/100Base-TX PoE, 2*1000Base-X SFP
- DC 44~57V input, redundant power
- 802.3af/at PoE standards
- PoE watchdog set by DIP
- 10K Jumbo frame support
- Surge and ESD protection
- IP40, Fan-less, Din-rail design
- -40°C to +75°C operation
RP-IPE382 is a robust industrial PoE switch, offering 8 PoE-enabled 10/100Base-TX Ethernet ports and 2 1000Base-X fiber optic interfaces. It adheres to IEEE 802.3af/at PoE standards, delivering up to 30W per port for powering devices like IP cameras and access points. The switch's DIP switch configuration simplifies setup, enabling functions such as port isolation, QoS, and PoE watchdog.
With a wide power input range of 44-57VDC and redundant power design, RP-IPE382 ensures system reliability, even in challenging environments. Its fan-less, IP40-rated cabinet and DIN-rail installation capability make it ideal for industrial use. It can operate seamlessly in temperatures ranging from -40°C to 75°C and offers high-level EMI/EMC protection.

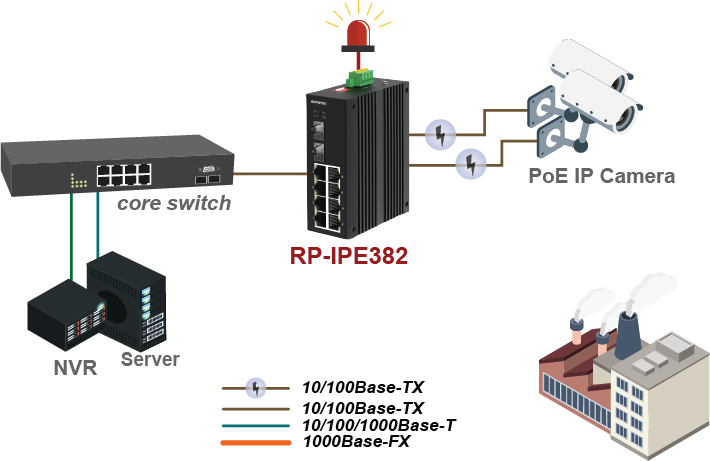

RP-IPE382 shines in heavy industrial settings like factories, transportation systems, oil and gas facilities, chemical plants, IP surveillance, and processing automation. It excels in environments that exceed commercial product specifications, making it the top choice for industrial Ethernet networking, thanks to its rugged design and versatile features.
- 8*10/100Base-TX RJ45 PoE ports, 2*1000Base-X SFP fiber ports
- DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
- Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
- DIP switch function: DIP 1. Port isolation; DIP 2. 250m long distance; DIP 3. QoS; Dip 4. PoE watchdog
- Support 10K Bytes Jumbo frame
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
Standards |
|
Interface |
|
DIP Switch |
|
Switching capacity |
|
Packet forwarding rate |
|
MAC address table |
|
VLAN |
|
Buffer |
|
Forwarding delay |
|
Jumbo Frame |
|
MDX/MIDX |
|
Watchdog |
|
Network Topology | |
Star topology |
|
Bus topology |
|
Tree Topology |
|
Power parameters | |
Input voltage |
|
Input current |
|
PoE power budget |
|
Connector |
|
Reverse polarity protection |
|
Over-voltage protection |
|
Mechanical structure | |
LED Indicators |
|
Case protection |
|
Installation method |
|
Dimension |
|
Environment |
|
EMS |
|
EMI |
|
Shock |
|
Free fall |
|
Vibration |
|
Certification |
|
RP-IPE382 | 8-P 10/100M PoE + 2-SFP (1G) Industrial PoE Switch |
