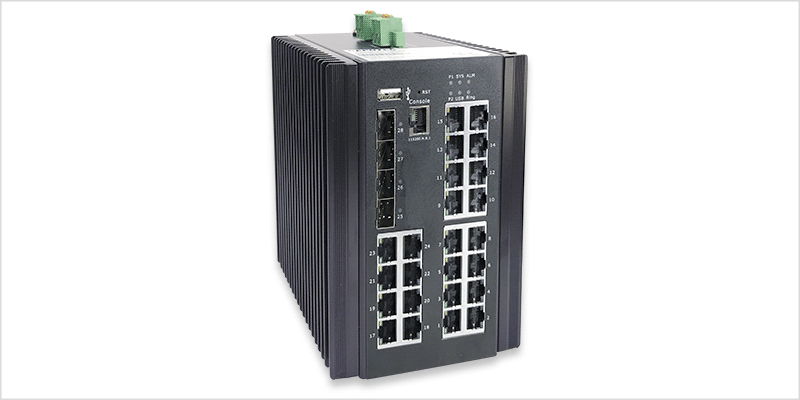

RP-IPG6324I-4F

The RP-IPG6324I-4F is a high-performance L2+ industrial PoE switch designed for mission-critical networks. Equipped with 24 Gigabit PoE ports and four 1G/2.5G SFP uplinks, it supports IEEE 802.3af/at up to 30W per port, delivering stable, high-bandwidth connectivity for video surveillance, voice, and data applications.

Engineered to enhance network reliability, it offers full Gigabit switching, G.8032 ERPS for fast ring recovery, and MSTP/RSTP/STP redundancy. With IPv4/IPv6 static routing and comprehensive Layer 2 management features, it provides advanced control, robust security, and scalable performance for large industrial deployments.

Built to withstand harsh conditions, it supports 44–57VDC input, redundant power design, and a rugged IP40 chassis. With wide -40°C to 70°C operation and strong EMI/EMC resistance, it is ideal for demanding environments such as factory automation, transportation systems, oil & gas, and surveillance.

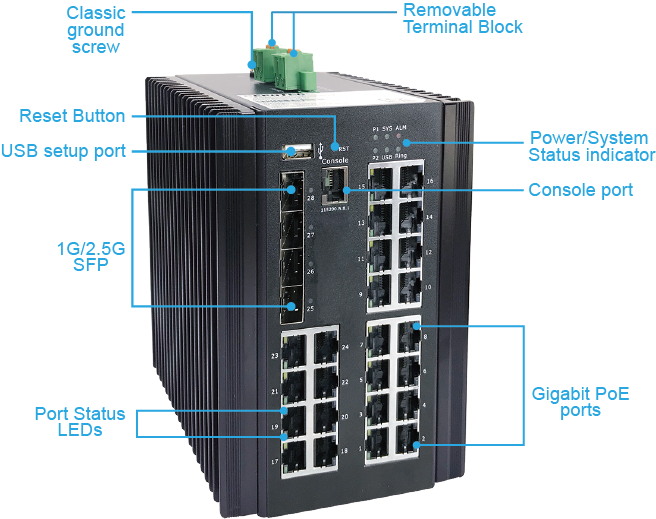

• 24*10/100/1000Base-T RJ45 PoE, 4*1G/2.5G Base-X SFP
• DC/DC redundant dual power 44-57V supply with polarity reverse/over-voltage/over-current protection
• Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
• Layer 3 features: Support IPv4/IPv6 static routing, DHCP server
• Support USB one key configuration and upgrading
• Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
• Management and maintenance: IPv4 and IPv6 management; PoE management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB
• Support G.8032 ERPS protocol, recovery time ≤20ms
• Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
• IP40 fan-less and rack-mount hardware design
• Operation temperature: -40 ~ +70°C
