19" Fully Shield Patch Panel
Cat. 5e & Cat. 6
Datasheet
Specifications
Specifications
- Meet ANSI/TIA/EIA-568-B.2 Category 5e
- Meet ANSI/TIA/EIA-568-B.2-1 Category 6
- Meet ISO/IEC Generic Cabling Standard 11801
- Meent CENELEC Generic Cabling Standard EN50173
ELECTRICAL
- According to UL 1863
- Current Rating: 1.5 Amp Max.
- Voltage Rating: 150 Volts
- Contact Resistance: 20m-ohm
- Insulation Resistance: 500M-ohm
- Dielectric Withstand Voltage: 1000 VAC RMS, 60Hz 1MIN
MATERIALS
- IDC : PC UL 94V-0,Accept 22-26 AWG Solid Cable
- PCB : FR-4 1.6m/m thickness, 2 layer
- Contact: 0.45mm Phosphor Bronze with 50µ Gold Plating on contact area
- Unit: 1U for 19" Rack Mount
- Metal Case: 1.6m/m thickness metallic
Ordering Information

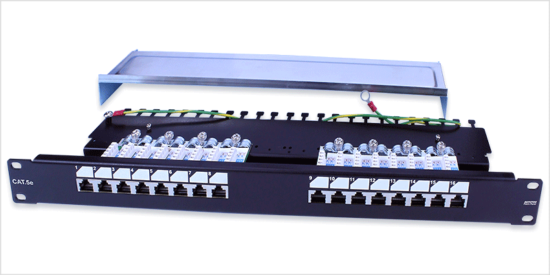

| RP-168C58S | Cat.5e Fully Shielded Patch Panel, 16-P Dual IDC, T568A/B Wired |

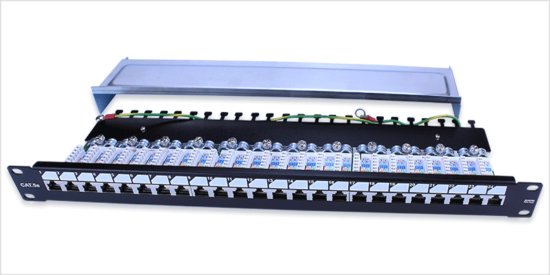

| RP-248C58S | Cat.5e Fully Shielded Patch Panel, 24-P Dual IDC, T568A/B Wired |

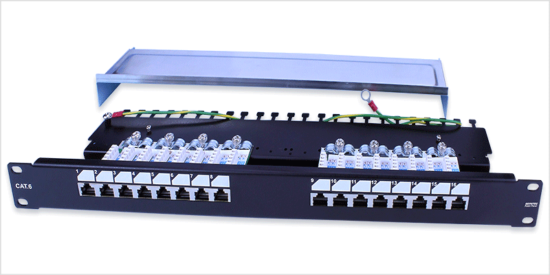

| RP-168C68S | Cat.6 Fully Shielded Patch Panel, 16-P Dual IDC, T568A/B Wired |
| RP-248C68S | Cat.6 Fully Shielded Patch Panel, 24-P Dual IDC, T568A/B Wired |
