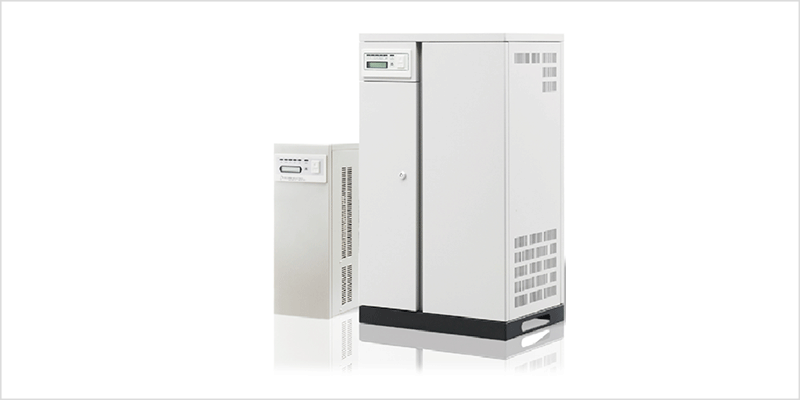

3KVA ~ 6KVA Double conversion On-Line UPS (Low Frequency) Tower Type
Model: RP-UPHA303-DX series
- True sine wave, double conversion, on-line isolated UPS
- Microprocessor control, IGBT module and PWM technology
- Wide input voltage range and generator compatible
- Special air-flow control, designed for harsh environment
- DC start and automatic self-diagnostic function
- LCD and LED display UPS status and internal message
- Built-in high capacity charger for long backup time
Overview
Features
Specifications
Download
The continuity of electrical power is an essential requirement for critical load operations. The Uninterruptible Power System is designed to meet the user‘s need of present mini-computer, micro-computer and the equipment of office automation that make the UPS more compact and less noisy.
To choose the UPS as your equipment protector is a wise investment because it supplies reliable, pure and stable power at affordable price.
- True sine wave, double conversion, on-line isolated UPS
- Microprocessor control, IGBT module and PWM technology
- Wide input voltage range and generator compatible
- Special air-flow control, designed for harsh environment
- DC start and automatic self-diagnostic function
- LCD and LED display UPS status and internal message
- Built-in high capacity charger for long backup time.
- Smart computer interface and SNMP management capability
- Full protections: overload, over voltage, short circuit, over temperature etc
- Front door installation and maintenance
- User-friendly compact desig
| Model | RP-UPHA303-DX | RP-UPHA373-DX | RP-UPHA503-DX | RP-UPHA603-DX | |
| Capacity (VA / Watt) | 3kVA/2.1kW | 3.75kVA/ 3kW | 5kVA/ 4kW | 6kVA/ 4.8kW | |
| Input | Voltage |
1P2W, 220Vac |
|||
| Voltage Range | -15%, +25% | -15%, +25% or -30%, + 40% (with AVR option) | |||
| Frequency | 50Hz or 60Hz ± 5% | ||||
| Output | Voltage | 1P2W 220Vac ± 5% (Adjustable) | |||
| Frequency | 50Hz or 60Hz | ||||
| Voltage Regulation | ± 1% | ||||
| Frequency Stability | ± 0.5% (Free running) | ||||
| Transient Response | ± 3% (100% Load variation) | ||||
| Waveform | Sine wave | ||||
| Distortion | < 3% at 0-100% (Linear load) | ||||
| Overload Capacity | 110-150%: 30 sec, >150% constant power |
120% : 30 sec, >150% constant power | |||
| Power Factor | 0.7-1, lag | ||||
| Crest Ratio | 3:1 | ||||
| Battery | Voltage | 192Vdc | |||
| Charger | 1A charger build in | 5A build in and 10A charger (option) | |||
| Efficiency | AC to AC | >85% | |||
| Transfer time | AC Fault | Zero | |||
| Protection | Battery | Battery low shutdown and breaker | |||
| Overload | 120~150% 30 seconds, then switch to bypass line & automatic re-transfer | ||||
| Short Circuit | Current limited and cut-off and fuse and breaker | ||||
| UPS Fault | Bypass, load supplied from mains less than 2ms | ||||
| Audible Alarm | Mains Failure | Sounding every four seconds after mains fail, 90 seconds mute | |||
| Final Discharge | Sounding once every second as battery approaches | ||||
| Overload | Continuously | ||||
| UPS Fault | Continuously | ||||
| Indicator | LCD | UPS status, I/P & O/P voltage/frequency, battery voltage, loading %, history record | |||
| LED | Utility LED (Green), Inverter LED (Green), Battery low (Yellow) | ||||
| Bypass voltage (Yellow), Fault LED (Red), Overload (Yellow) | |||||
| Interface | Contact Closure | Support MEGATEC RUPS UPS monitoring software | |||
| RS-232 | Support MEGATEC RUPSII / UPSilon 2000 monitoring software | ||||
| Environment | Operation Temperature | 0-40 ℃(32-104 ℉) | |||
| Relative Humidity | 0-90% (non-condensing) | ||||
| Audible Noise(At 1M) | < 45dBA | ||||
| Physical | Net Weight (Kg) | 57 with built-in battery | 104 | 108 | 111 |
| Dimensions(WxHxD) mm | 180*360*500 | 230*685*578 | |||
*Product specifications are subject to change without further notice.
Ordering Information
| RP-UPHA303-DX | 3KVA/2.1kW Double conversion On-Line UPS (Low Frequency) Tower Type |
| RP-UPHA373-DX | 3.75KVA/ 3kW Double conversion On-Line UPS (Low Frequency) Tower Type |
| RP-UPHA503-DX | 5KVA/ 4kW Double conversion On-Line UPS (Low Frequency) Tower Type |
| RP-UPHA603-DX | 6KVA/ 4.8kW Double conversion On-Line UPS (Low Frequency) Tower Type |
