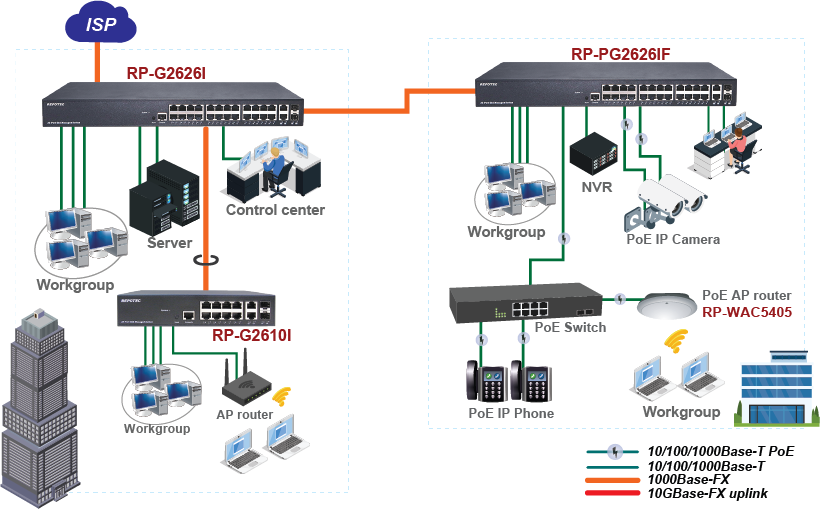

Application

Download

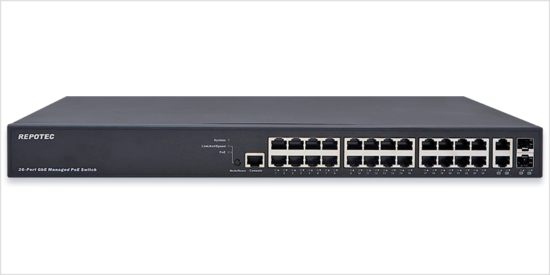

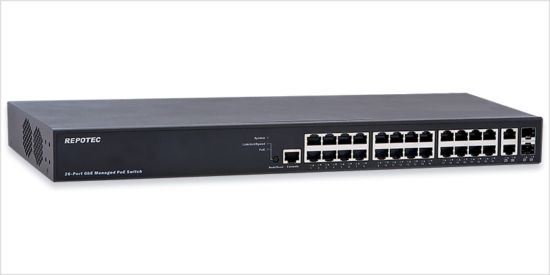

RP-PG2626I is a 26-port Managed Gigabit PoE Switch which delivers 24 (10M/100M/1G) RJ45 PoE+ ports, 2 Combo GbE RJ45/SFP ports and RJ45 Console port.

RP-PG2626I offers full suite of comprehensive Layer 2 switching capabilities such as ACL, Spanning Tree , DHCP Relay ,IGMP QoS functions.. etc., and provides advanced L3 features like Static Route and IPv6 / IPv4 management functions. RP-PG2626I’s 10/100/1000 Mbps ports are PoE-enabled, compliant with 802.3af and 802.3at standard, 24 ports PoE+ with a total power budget of 185W. RP-PG2626I provides a reliable infrastructure for your business network and delivers more intelligent features you need to improve the availability of your critical business applications, the switch provides ideal combination of affordability and capabilities for small- and medium-size businesses to build high-performance network efficiently.

RP-PG2626I complies with 802.3az, the green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly.

L2+ features provide better manageability, security, QoS, and performance.
PoE Port configuration and scheduling, 802.3at high power PoE plus standard
Built in Device Management System (DMS)
DHCP Server
IPv4/IPv6 L3 static route
Support SSH/SSL secured management
Support SNMP v1/v2c/v3
Support RMON groups 1,2,3,9
Support sFlow
Support IGMP v1/v2/v3 Snooping
Support MLD v1/v2 Snooping
Support RADIUS and TACACS+ authentication
Support IP Source Guard
Support DHCP Relay (Option 82)
Support DHCP Snooping
Support ACL and QCL for traffic filtering
Support 802.1d(STP), 802.1w(RSTP) and 802.1s(MSTP)
Support LACP and static link aggregation
Support Q-in-Q double tag VLAN
Support GVRP dynamic VLAN
IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Standards	IEEE 802.3/3u 10Base-T, 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE 802.3x Flow Control capability IEEE802.3at/af PoE standard IEEE802.3az Energy Efficient Ethernet

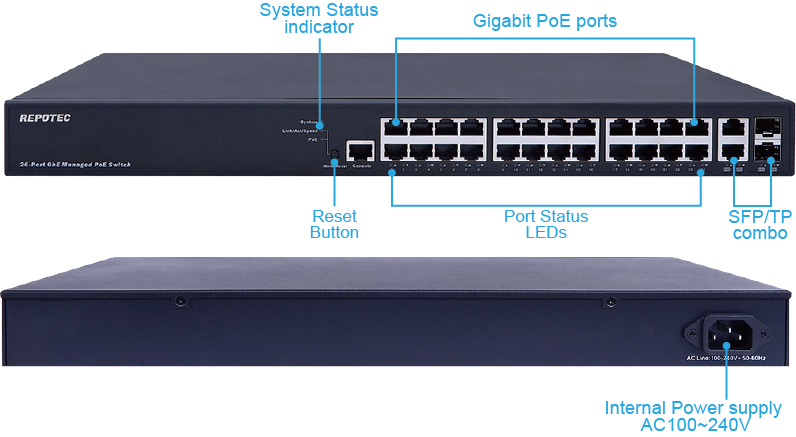

Interface	Port 1 to 24: RJ-45 10/100/1000Mbps with 802.3af/at PoE, auto MDI/X Port 25 to 26: RJ45/SFP(100/1000Mbps) combo RJ45 Console port Reset Button
Forwarding Capacity	14.88 Mpps
Switching Capacity	56 Gbps
Jumbo frames	9216 Bytes
MAC Table	8K MAC addresses
Layer 2 Switching
Spanning Tree Protocol (STP)	Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s
Trunking	Link Aggregation Control Protocol (LACP) IEEE 802.3ad Up to 13 groups Up to 4 ports per group
VLAN	Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) Port-based VLAN 802.1Q tag-based VLAN MAC-based VLAN Management VLAN Private VLAN Edge (PVE) Q-in-Q (double tag) VLAN Voice VLAN GARP VLAN Registration Protocol (GVRP)
DHCP Relay	Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82
IGMP v1/v2/v3 snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters Supports 1024 multicast groups
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy	IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 snooping	Deliver IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static Routing	IPv4 Unicast: Static routing
IPv6 Static Routing	IPv6 Unicast: Static routing
Security
Secure Shell (SSH)	SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL)	SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X	IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions Supports IGMP-RADIUS based 802.1X Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge (PVE)	PVE (also knows as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security	Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard	Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+	Supports RADIUS and TACACS+ authentication. Switch as a client
Storm control	Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping	A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs	Supports up to 256 entries. Drop or rate limitation based on: Source and destination MAC, VLAN ID or IP address, protocol, port Differentiated services code point (DSCP) / IP precedence TCP/ UDP source and destination ports 802.1p priority Ethernet type Internet Control Message Protocol (ICMP) packets TCP flag
Quality of Service
Hardware Queue	Support 8 hardware queues
Scheduling	Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service
Classification	Port based 802.1p VLAN priority based IPv4/IPv6 precedence / DSCP based Differentiated Services (DiffServ) Classification and re-marking ACLs
Rate Limiting	Ingress policer Egress shaping and rate control Per port
Management
DHCP Server	Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON)	Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
UPnP	The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow	The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)	Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network Support LLDP-MED extensions
Web GUI Interface	Built-in switch configuration utility for browser-based device configuration
CLI	For users to configure/manage switches in command line modes
Dual Image	Independent primary and secondary images for backup while upgrading
SNMP	SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade	Web browser upgrade (HTTP/ HTTPs) and TFTP Upgrade through console port as well
NTP	Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management	HTTP/HTTPs; SSH DHCP Client/ DHCPv6 Client Cable Diagnostics Ping Syslog Telnet Client IPv6 Management
Power over Ethernet (PoE)
Port Configuration	Supports per port PoE configuration function
PoE Scheduling	Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking	Check the link status of PDs. Reboot PDs if there is no responses
Power Delay	The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs
PoE Power Budget	185Watts

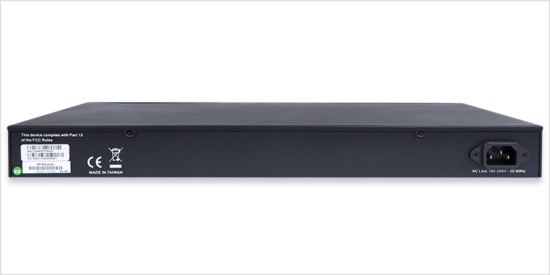

Power Supply	Internal Power supply 100~240VAC, 50/60 Hz
Environment	Operating temperature: 0°C to 45°C Storage Temperature: -20 to 70°C Operating Humidity: 10% to 90% (Non-Condensing)
Dimension	442 x 44 x 211mm (WxHxD)
Certification	FCC, CE
