The RP-IPG63240I-4FR-D is the highly reliable Layer 2+ managed industrial PoE switch with 24-port 10/100/1000Base-T PoE and 4-port 1G/2.5GBase-X SFP. It complies with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. With full gigabit capability, it can provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. It supports DI/DO/RS485,G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, Layer 3 IPv4/IPv6 static routing features and powerful Layer 2+ management and secure function, which all making them ideal for large-scale industrial networks.

RP-IPG63240I-4FR-D is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range voltage input 44-57VDC, redundant power design with DC/DC, robust IP40 fan-less housing with rack-mount installation, wide operation temperature from -40°C to 75 °C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

Redundant power 44-57V input with polarity reverse/over-current protection
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Support DI/DO/RS485 and USB one key configuration & upgrading
Layer 3 feature: Support IPv4/IPv6 static routing, DHCP server, DHCP relay
Layer 2 features: VLAN/GVRP/QinQ/SPAN/RSPAN/STP, RSTP, MSTP/DHCP/Multicast/ACL/QoS/LLDP/802.1X/AAA/Loop Detect/Dying Gasp /SFP DDM/IPV6 management/Dual Stack/ PoE management/sFlow/Web/SNMP/MQTT /Telnet/TFTP/Web upgrading
Support G.8032 ERPS protocol, recovery time ≤20ms
Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
IP40 fan-less and rack-mount hardware design
Operation temperature: -40°C ~+ 75°C

Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE

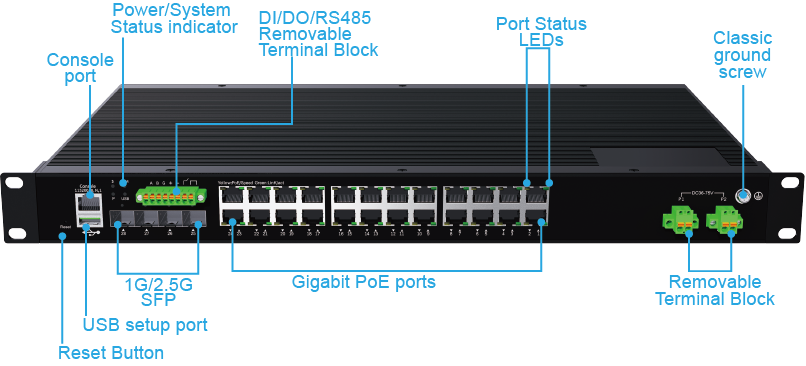

Interface	24 x 10/100/1000Base-T RJ45 4 x 1000/2500Base-X SFP
Management port	1 x RJ45 Console port 1 x USB 2.0
Data & Alarm channel (Removable 8-pin terminal block)	Vout: VO＋, VO－	5V output（0.2A MAX）
	1 channel RS485: A, B	Serial server: Supports Modbus protocol transparent transmission Network Side: Supports TCP protocol, supports client and server mode Serial Port Side: Supports RTU communication mode and serial port transmission parameter settings
	1 channel digital input: DI+，DI-	Status “1”: 12V-30V Status”0”: -30V~3V Max input current: 8 mA
	1 channel digital output	Normally open，Normally closed，Pulse 2A@30V DC，0.3A@125V AC
Size of RAM	512MB
Size of Flash	512MB
Switching capacity	68Gbps
Packet forwarding rate	101Mpps
MAC address table	16K
VLAN	4K
Buffer	12M bit
Forwarding delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Layer 2 function
Port aggregation	Support GE port aggregation Support 2.5GE aggregation Support static aggregation Support LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group
Port features	Support IEEE802.3x flow control Support interface counters Support port isolation Port mirroring (One-to-One, Many-to-One) Support loop detection(Port-based; VLAN-based) Support broadcast storm suppression (broadcast; unknown multicast; unknown unicast)
VLAN	IEEE802.1Q tagged VLAN Mac based VLAN IP based VLAN Protocol based VLAN Voice VLAN, specially divide VLAN for user voice data flow Private VLAN, divide a VLAN broadcast domain into multiple subdomains to form a double-layer VLAN structure VLAN range: 1-4094 Support access mode/trunk mode/hybrid mode
Mac-address table management	Support static Mac-address management Support dynamic Mac-address Management Support filtering Mac-address Support MAC limit based on port and VLAN Support MAC flapping based on port and VLAN 16K Mac-address table size
GVRP	Normal mode Fixed mode Forbidden mode
QinQ	Port-based QinQ VLAN-based QinQ(VLAN-stacking; VLAN-mapping) Flow-based QinQ
LLDP	LLDP (Link Layer Discovery Protocol) Med
SPAN	Number of Sessions: 7 Many-to-one
RSPAN	Remote Switch Port Analyzer
MSTP	802.1D STP 802.1W RSTP 802.1S MSTP BPDU Guard Number of Single Ring Device Connections: 20
ERPS G.8032	Major ring Sub ring Recovery time ≤20ms Number of Single Ring Device Connections: No limit
QoS	QoS Class, Remarking Support SP, WRR Queue Scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Egress port-queue shaper Policy-based QoS Port Queue Numbers: 8
DHCPv4 Snooping	DHCP snooping trust port DHCP snooping option-82 DHCP snooping circuit-id and remote-id customized
L2 Multicast
IGMP	IGMP v1, v2, v3
IGMP Snooping	Internet Group Management Protocol Snooping Fast Leave Multicast Table Size: 1K
PIM-SM	Protocol Independent Multicast-Sparse Mode
Security features
ACL	IP Standard ACL MAC extend ACL IP extend ACL IPv6 ACL Time Range ACL apply on VLAN ACL entries, include input and output
802.1x	Port access control Mac-address access control RADIUS server
Port-security	Port-security
IP source guard	IP Source Guard, Port-based IP/Mac Binding Access
ARP-check	Support ARP-check and ARP packet filtering for illegal users
DAI	Dynamic ARP Inspection
Anti-gateway ARP Spoofing	Prevent Gateway ARP Spoofing
Ddos	Ddos attack protection
Access control	Support Telnet/SSH/HTTP/HTTPS user access control
AAA	RADIUS authentication access switch TACACS authentication access switch Authorization
Reliability
Loop Detect	Loop detect, based on port or VLAN
EFM	The Ethernet in the first mile, 802.3ah
Management & Maintenance functions
Dual Stack	IPv4 and IPv6 Dual Stack Management
System Log Management	Syslog Level 7 to 0 Corresponding Debug/Info/Notice/Warning/ Err/ Critical/ Alert Support connecting up to 3 Servers For IPv4 and IPv6
User Management	Support password protection, support MD5/SHA256/SHA512 algorithm Local Management of User Privilege Remote authorization by RADIUS or TACACS Enable privilege protection User password complexity requirements User login fail protection User Privilege Level 0 to 15
Login Service Management	Up to 8 users online simultaneously Access control based on IPv4 or IPv6 ACL
Firmware Management	Firmware upgraded by WEB Firmware upgraded by CLI Dual partition
Web Management	Web Management Support HTTP V1.1 Support HTTPS For IPv4 and IPv6
CLI management	Console/Telnet command line management
Fault Detection	Ping/Traceroute, For IPv4 and IPv6 Dying gasp Optical transceiver DDM One click fault information collection Cable detection
DNS	Domain Name System
NTP	Network Time Protocol, For IPv4 and IPv6 Support domain name configuration
Configuration Import /Export	FTP/TFTP based remote configuration import and export USB flash drives based local configuration import and export
sFlow	Sampled flow
SNMP	Version SNMPV2C/V3
MQTT	Message Queuing Telemetry Transport
RMON	Support RMON (Remote Monitoring) alarm
PoE management	Support 802.3af/802.3at Support PD watchdog Support PoE priority management Support Max PoE power configuration for each port Support alarm threshold configuration Support reserved power configuration Support PoE schedule Support POE legacy mode
Dual partition managed	Support dual partition switching
Application Protocol Functions
Telnet server	Support telnet server for IPv4 and IPv6
Telnet client	Support telnet client for IPv4 and IPv6
SCP(Secure Copy Protocol	SCP client/server for IPv4 and IPv6
SFTP	sftp client/server for IPv4 and IPv6
SSH server	Support login based on user password-SSH2, support IPv4, IPv6 Support public key-based login
TACACS	Support TACACS (the terminal access controller accesses the control systems
TFTP	Support TFTP Client
Layer 3 functions
Static Route	Support VLAN interface and route port IPv4 static routing table entry configuration ARP dynamic learning and static configuration IPv6 static routing table entry configuration Neighbor discovery and static configuration Routing prefix table size 4k for IPv4, for IPv6 divide by 4
DHCPv4 Client	Dynamic host configuration protocol for IPv4
DHCPv6 Client	Dynamic host configuration protocol for IPv6
DHCPv4 Relay	DHCP Relay for IPv4
DHCPv4 Server	DHCP Server for IPv4
Power parameter
Input voltage	44-57VDC (802.3af) 52-57VDC (802.3at) redundant power input
Input current	9A Max
Total power consumption	Full loading without PoE≤18.5W PoE power budget ≤ 370W
Connector	Removable 2*2-pin terminal block
Reverse polarity protection	Support
Over-current protection	Support
Mechanical structure
LED Indicators	P (Power indicator) S (System status indicator) USB (USB status indicator) Green ALM (Fault status indicator) Red 1-24 (Copper ports indicators) Green / PoE Yellow 25-28 (Fiber ports indicators) Green
Case protection	IP40
Installation method	Rack mountable
Dimension	440 x 280 x 44mm (WDH)
Environment	Operating temperature: -40°C~+75°C Storage temperature -40°C~+85°C Operating Humidity: 10 to 90% (Non-Condensing)
EMS	Surge protection of power: IEC 61000-4-5 DC:6KV/4KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV（10/700us） RS：IEC 61000-4-3 80 MHz-1 GHz：10 V/m EFT：IEC 61000-4-4 power 4K, signal 2K CS：IEC 61000-4-6 10V ESD：IEC 61000-4-2 Contact: 8K；Air: 15K
EMI	FCC Part 15B Class A
Shock	IEC 60068-2-27
Free fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE/FCC/RoHS
