RP-PG800E


RP-PG800E
8-P Gigabit Ethernet PoE+ Switch

Datasheet
Manual
QIG
Firmware

  • RP-PG800E is a 8-Port Gigabit Power over Ethernet Switch, it provides users Gigabit Ethernet and power via CAT 5 and above twisted cables.

    This PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30W per port, with a total PoE power budget of 120 W. Its auto-negotiate is between 10/100/1000 Mbps network speed and duplex. By integrating the data transmitting and power supply, it eliminates the toil of constructing your network. Users can easily connect a Wireless AP or a VoIP phone to this switch without arranging outlets for them.

    In addition, it provides power to such as security camera/network webcam situated in a remote area where power connection is not possible. To ensure the power supply safety, this PoE+ switch also supports current protection and circuit shorting protection.

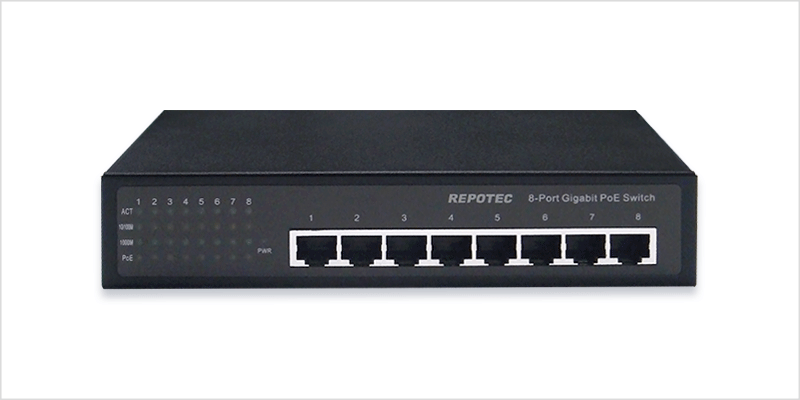

    Moreover, front panel LEDs provides quick indication of connection speed and status.

    Plug-and-play function without any software to configure and is also fully compliant with all kinds of network protocols.

    • Comply with IEEE 802.3 at/af PoE standard ,
    • Support 30W maximum per PoE port
    • Support over current protection and circuit shorting protection
    • Support 10/100/1000Base-T applications
    • Support MDI/MDI-X auto crossover
    • Support extensive LED indicators for network diagnostics
    • Wire-speed packet filtering and forwarding rate
    • Store-and-forward architecture filter fragment & CRC error packets
    • Compact design

  • Standards
    • IEEE 802.3 10 BASE-T
    • IEEE 802.3u 100 BASE-TX
    • IEEE 802.3ab 1000Base-T
    • IEEE 802.3at/af Power Over Ethernet
    Interface
    • 8* 10/100/1000Mbps RJ-45 ports
    Filtering/Forwarding Rates
    • 1000Mbps port - 1,488,000pps
    • 100Mbps port - 148,800pps
    • 10Mbps port - 14,880pps
    Transmission Media
    • 10BaseT Cat. 3, 4, 5 UTP/STP
    • 100BaseTX Cat. 5 UTP/STP
    • 1000BaseTX Cat. 5E/6/7 UTP/STP
    PoE Specification
    • PD classification identify
    • PoE over current protection
    • PoE circuit sorting protection
    • PoE power on RJ-45 pin 1,2 for power + / pin 3,6 for power -
    LED Indicators
    • Power, 10/100,1000, Link/Act, PoE (Green)
    PoE Power Budget
    • Per PoE port 30 W
    • Max. 120W

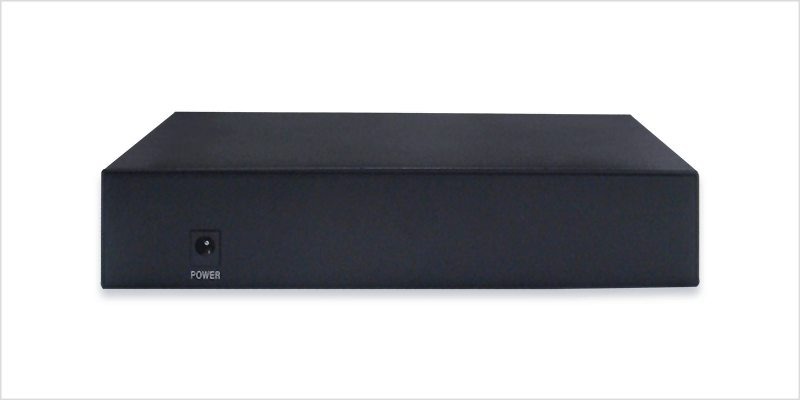

    Power Supply
    • External Power Adapter 100~240VAC, 50/60 Hz, 56V
    Environment
    • Operating temperature : 0°C to 40°C
    • Operating Humidity:10% to 90% (Non-Condensing)
    Dimension
    • 188 * 119 * 39mm
    Certification
    • FCC, CE, LVD

  • RP-PG800E 8-P Gigabit Ethernet PoE+ Switch (120W)
