RP-PG082

RP-PG082

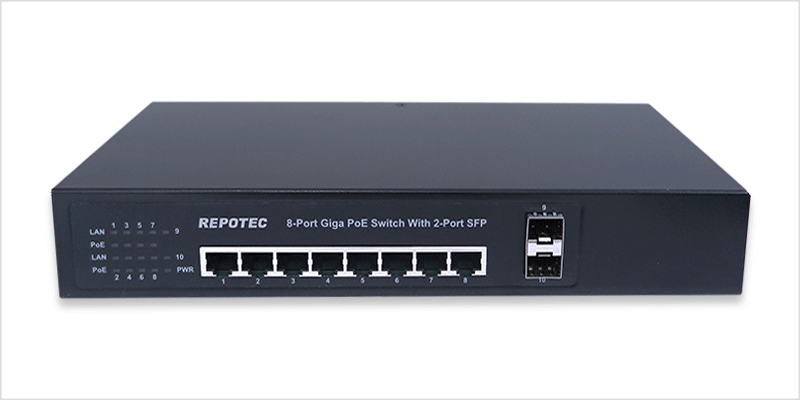

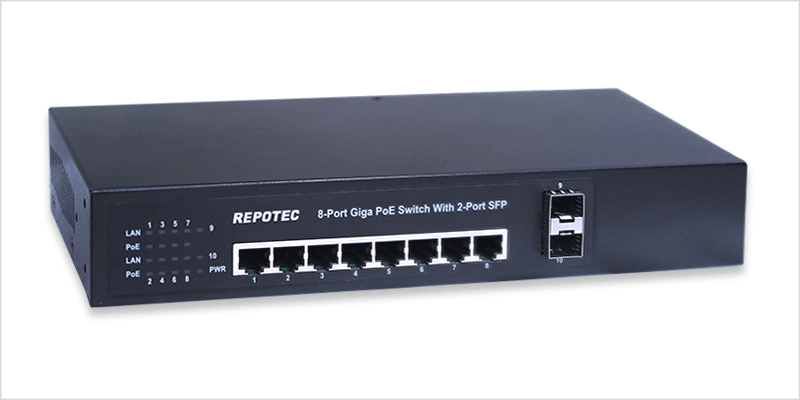

8-P PoE + 2-SFP Gigabit Ethernet Switch

gigabit PoE switch - RP- PG402 gigabit PoE switch - RP- PG402
Datasheet
Manual

  • RP-PG082 is a 8-Port Gigabit Power over Ethernet Switch with 2 SFP slots, it provides users Gigabit Ethernet and power via CAT 5 and above twisted cables.

    RP-PG082 complies with IEEE 802.3af and 802.3at standards and supplies up to 30W per port, with a total PoE power budget of 120 W. Its auto-negotiate is between 10/100/1000 Mbps network speed and duplex. By integrating the data transmitting and power supply, it eliminates the toil of constructing your network. Users can easily connect a Wireless AP or a VoIP phone to this switch without arranging outlets for the wall, ceiling or any unreachable place.

    To ensure the power supply safety, RP-PG082 supports current protection and circuit shorting protection. Moreover, front panel LEDs provides quick indication of connection speed and status.

    Plug-and-play function without any software to configure and is also fully compliant with all kinds of network protocols.

    • Comply with IEEE 802.3 at/af PoE standard ,
    • Support 30W maximum per PoE port
    • Support over current protection and circuit shorting protection
    • Support 10/100/1000Base-T applications
    • Support 1000Mbps SFP Fiber Module Auto Detection
    • Support MDI/MDI-X auto crossover
    • Support extensive LED indicators for network diagnostics
    • Wire-speed packet filtering and forwarding rate
    • Store-and-forward architecture filter fragment & CRC error packets
    • Supply suitable power to PoE PD terminals
    • Safe and reliable power to WLAN APs
    • Automatic Detection and Protection of Non-standard Ethernet Terminals
    • AC-in Internal Power

  • Standards
    • IEEE 802.3 10 BASE-T
    • IEEE 802.3u 100 BASE-TX
    • IEEE 802.3ab 1000Base-T
    • IEEE 802.3z 1000Base-X Ethernet
    • IEEE 802.3x Flow Control capability
    • IEEE 802.3at/af Power Over Ethernet
    Interface
    • 8 x 10/100/1000Mbps RJ-45 ports
    • 2 x 1000Mbps SFP slots
    Switch Capacity
    • 20Gbps
    MAC addresses
    • 8K
    Jumbo frame
    • up to 9K
    Filtering/Forwarding Rates
    • 1000Mbps port - 1,488,000pps
    • 100Mbps port - 148,800pps
    • 10Mbps port - 14,880pps
    Transmission Media
    • 10BaseT Cat. 3, 4, 5 UTP/STP
    • 100BaseTX Cat. 5 UTP/STP
    • 1000BaseTX Cat. 5E/6/7 UTP/STP
    PoE Specification
    • PD classification identify
    • PoE over current protection
    • PoE circuit sorting protection
    • PoE power on RJ-45 pin 1,2 for power + / pin 3,6 for power -
    PoE Power Budget
    • Per PoE port 30 W
    • Max. 120W
    LED Indicators
    • Power (Green), LAN (1000Mbps-Green;10/100Mbps-Amber), PoE (Green), SFP (Green)
    Power Supply

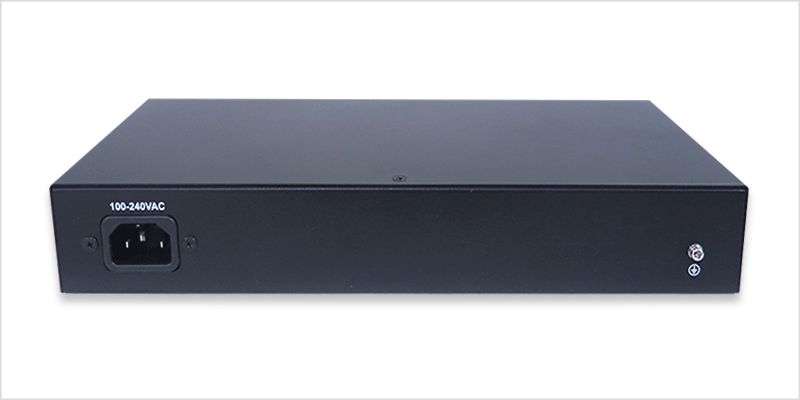

    • Internal Power Supply 100~240VAC, 50/60 Hz, 56V
    Environment
    • Operating temperature : 0°C to 40°C
    • Operating Humidity: 5% to 90% (Non-Condensing)
    Dimension (WxHxD)
    • 280 x 44 x 122 mm
    Certification
    • FCC, CE

  • RP-PG082 8-P Gigabit + 2-SFP PoE Switch (120W)
