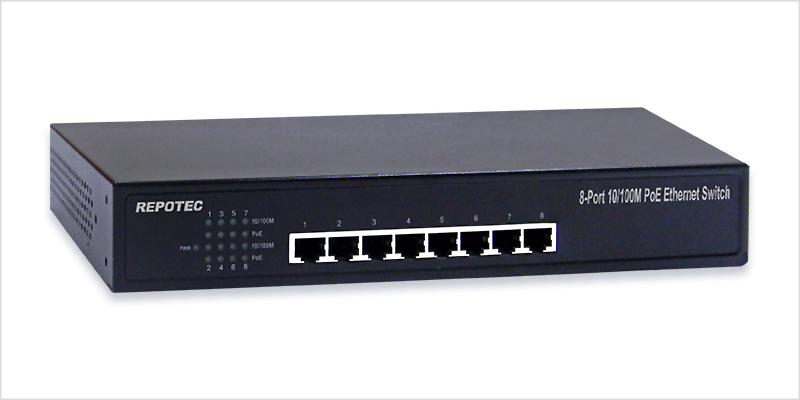

RP-PE800

RP-PE800
8-P Fast Ethernet PoE+ Switch

  • The RP-PE800 is a 8-port Fast Ethernet PoE Switch. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. Moreover, the 10/100Mbps auto-sensing ability provides an easy way to migrate 10Mbps to 100Mbps network.

    This switch supports 802.3at PoE standard, which supplies power to connected devices via CAT 5 and above twisted cables. By integrating the data transmitting and power supply, it eliminates the effort constructing your network. You could easily connect a Wireless AP or a VoIP phone to this switch without arranging outlets for them. In addition, over current protection and circuit shorting protection are also supported to ensure the power supply safety.

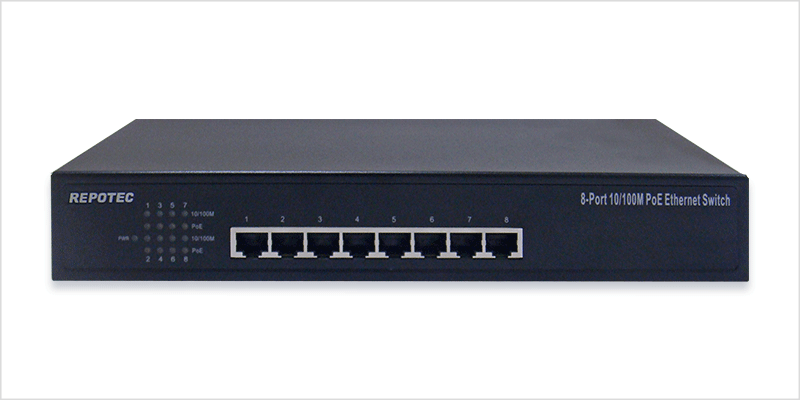

    The RP-PE800 supports plug-and-play without any software to configure and is also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs on the front-panel provide the clear operating status of individual port and whole system.

    • Comply with 10BASE-T specifications of the IEEE802.3 standard
    • Comply with 100BASE-TX specifications of the IEEE802.3u standard
    • Support NWay protocol for speed (10/100Mbps) and duplex mode (Half/Full) auto-detection
    • Support MDI/MDI-X auto crossover
    • Comply with IEEE 802.3at/af PoE standard
    • Support 30W maximum per PoE port
    • Support over current protection and circuit shorting protection
    • Wire-speed packet filtering and forwarding rate
    • Store-and-forward architecture filter fragment & CRC error packets
    • Support extensive LED indicators for network diagnostics
    • 11” Metal Case, support optional rack-mounting kits

  • Standards
    • IEEE 802.3 10 BASE-T
    • IEEE 802.3u 100 BASE-TX
    • IEEE 802.3x Full-duplex and Flow Control
    • IEEE 802.3at/af Power Over Ethernet
    Interface
    • 8* 10/100Mbps RJ-45 ports
    MAC Address
    • 4K
    Buffer Memory
    • 1.625M bits
    Filtering/Forwarding Rates
    • 100Mbps port - 148,800pps
    • 10Mbps port - 14,880pps
    Transmission Media
    • 10BaseT Cat. 3, 4, 5 UTP/STP
    • 100BaseTX Cat. 5 UTP/STP
    PoE specification
    • PD classification identify
    • PoE over current protection
    • PoE circuit sorting protection
    • Power PIN Assignment 1/2(+), 3/6(-)
    LED Indicators
    • System: Power
    • Port: Link/Act, PoE Act
    • Per Port: Link / Act, PoE
    • PoE Port: Act / Status
    PoE power budget
    • Per PoE port 30W
    • Total Power for PoE 120W Max
    Power Supply

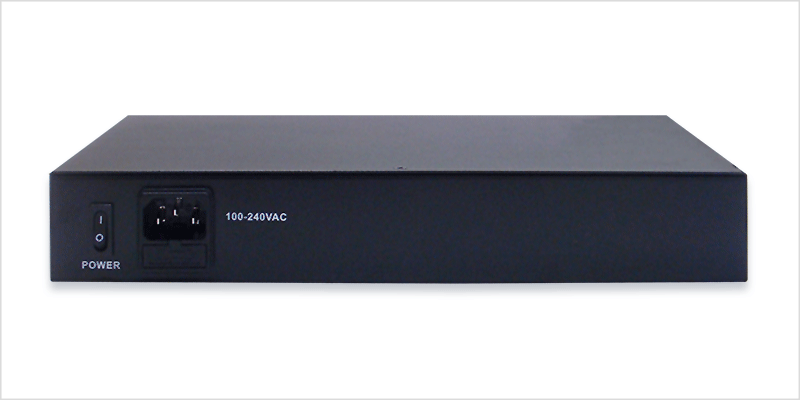

    • Internal Power Adapter 100~240VAC, 50/60 Hz
    Environment
    • Operating temperature : 0°C to 50°C
    • Operating Humidity:10% to 90% (Non-Condensing)
    Dimension
    • 280 * 185 * 44mm
    Certification
    • FCC, CE, LVD

  • RP-PE800 8-P Fast Ethernet PoE+ Switch (120W)
