NBASE-T 2.5GbE 802.3bt 4-Pair PoE++ 90W Injector

Datasheet
Manual

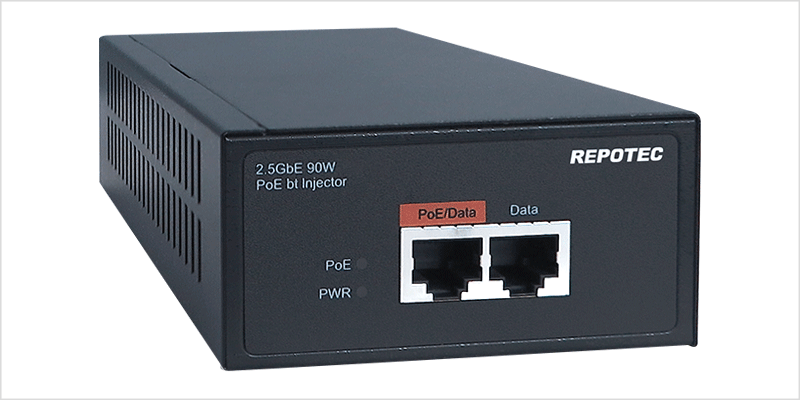

  • The RP-PGJ259 NBASE-T Gigabit 802.3bt 4-Pair PoE Injector provides up to 90-watt power and supports 2.5GbE/ 1GbE data connection anywhere in your network infrastructure.

    The RP-PGJ259 injects DC power through CAT5 or CAT6 4 pair UTP cable, it increases flexibility in the positioning of a PoE enabled device by eliminating for a nearby power source. The RP-PGJ259 supports the PoE+ (802.3af 15.4W & 802.3at 30W) standard and 802.3bt 4-Pair PoE type 3 & type 4 45W~90W power to connected PD devices. It can easy connect the high-powered devices such as WiFi 6 AP, Pan-Tilt-Zoom (PTZ) IP Cameras, Dome Cameras, Interactive Display, Point of Sales (POS), Information Kiosks, Thin Client and other high power Ethernet end terminals with 71W of power.

    The RP-PGJ259 is plug-and-play without any software configuration .Its metal housing design is more suitable for different environment application. Over current protection and circuit shorting protection are also supported to ensure the safety.

    • One port 10/100/1000/2500 Base-T (Data) for connection to the Ethernet Switch
    • One port 10/100/1000/2500 Base-T 4-Pair PoE (Power/Data) for connection to the PoE device (PD)
    • Automatic detects if the connected device is PoE enabled to avoid sending power to a non-PoE device
    • Complies with IEEE802.3, 802.3u, 802.3ab, 802.3bz, 802.3af, 802.3at, 802.3bt standards
    • Supports 802.3bt 4-Pair PoE 90W power delivery
    • Supports 802.3bt (90W/75W/60W/45W), 802.3at (30W), 802.3af (15W) PoE Power Output.
    • Supports PoE type 1~4, Class 1~8. Fully class mode.
    • Supports one Power & PoE Link LEDs
    • Supports one GND screw
    • Supports Full-Range (100~240VAC) Internal power supply
    • Fanless, Metal case, Small size, no noise
    • ESD IEC61000-4-2 Contact +/-4KV, Air +/-8KV
    • EFT IEC61000-4-4 Power 1KV, LAN 0.5KV
    • Surge IEC61000-4-5 Cable to Cable & Cable to GND Level3 2KV



  • Standard
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Fast Ethernet
    • IEEE 802.3ab 1000Base-T Gigabit Ethernet
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3bt PoE++
    Interface
    • 1 x 4-Pair PoE++ 10/100/1000/2500Mbps RJ-45 port
    • 1 x 10/100/1000/2500Mbps RJ-45 port
    Data Rates
    • 10/100/1000/2500Mbps
    Network Cable
    • 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
    • 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
    • 1000BASE-T: 4-pair UTP Cat. 5e, 6
    • Twisted-pair cable up to 100 meters (328ft)
    PoE Power Budget
    • 90Watt @54V via 4-pair PoE
    PoE Pin Assignment
    • Mode A (End-Span): 1/2 (-), 3/6 (+)
    • Mode B (Mid-Span): 4/5 (+), 7/8 (-)

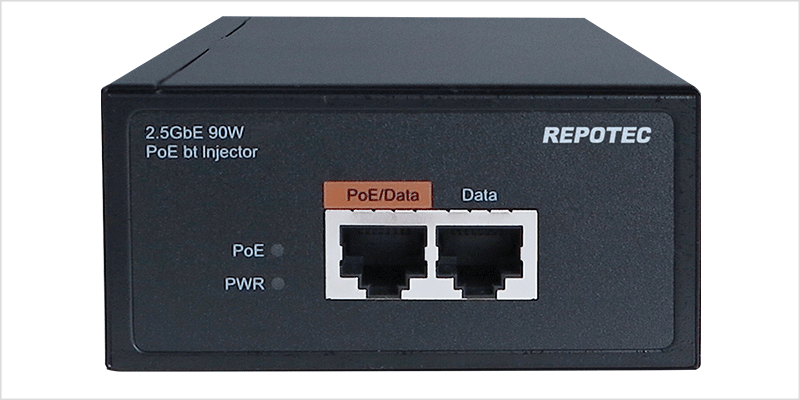

    LED Indications
    • Power (Green)
    • PoE Link (Green)
    Power Supply

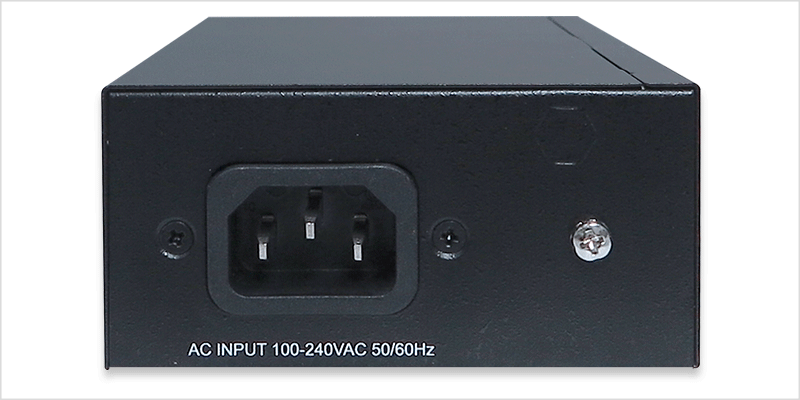

    • Internal power 100~240VAC input, 47~63Hz, 54V
    Power consumption
    • 100W max.
    Environmental
    • Operating Temperature: 0~50°C
    • Storage Temperature: -20~70°C;
    • Operating Humidity: 10%~90% (Non-condensing)
    Dimensions
    • 87 x 43 x 188 mm (W x H x D)
    Certification
    • FCC, CE, LVD class B

  • RP-PGJ259 NBASE-T 2.5GbE 802.bt 4-Pair PoE++ 90W Injector
