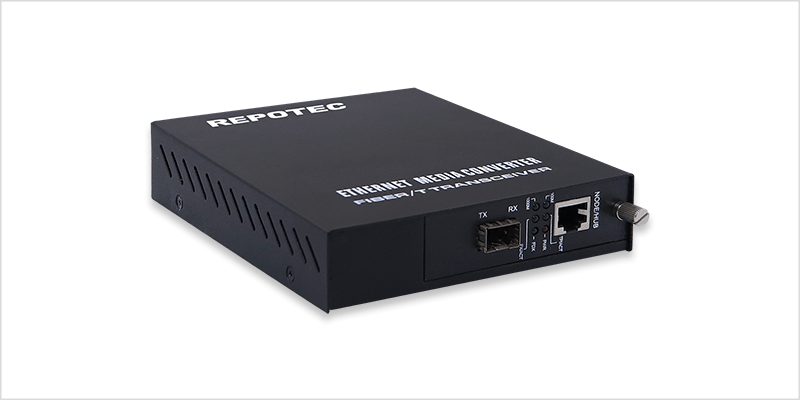

RP-MC211FP


RP-MC211FP
10/100/1000Base-TX to SFP Gigabit Media Converter

  • RP-MC211FP is 10/100/1000Mbps adaptive Gigabit Ethernet media converter fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network.

    It features an open SFP slot that lets you choose the SFP which suits your fiber connection mode (single / multimode) and distance requirements.

    The RP-MC211FP can be used as a card module that can easily be installed into RP-MCR216 the 16 Slot, 2U Rack-mounted Chassis or for standalone operation.

    • Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
    • 10/100/1000M media converter with SFP slot is available
    • Supporting full-duplex and half-duplex and its auto-sensed
    • Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
    • Supporting flow control for full-duplex and back pressure for half-duplex
    • Supporting the transmission of extra-long VLAN packets
    • Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
    • Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

  • Standards
    • IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,
    • IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
    • IEEE802.3x Flow Control
    Interface

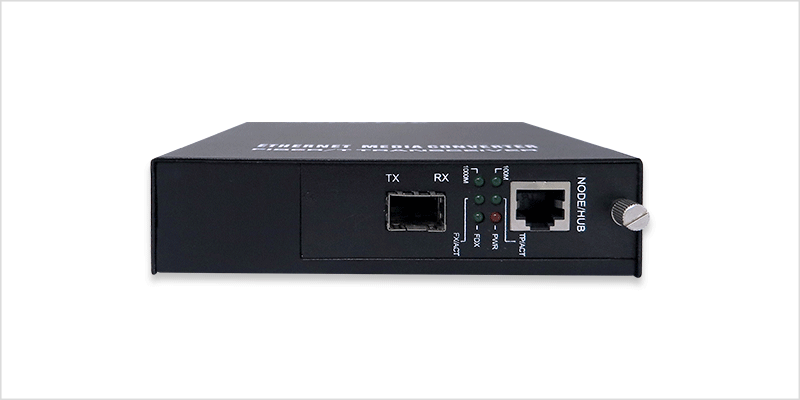

    • One RJ45 port: 10/100/1000Mbps Gigabit Ethernet
      Connecting with STP/UTP category-5 twisted pairs, EIA568A/B
    • One optical port:
      Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm)
      Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm)
    Wavelength
    • 850nm/1310nm/1550nm
    Transmission distance
    • multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
    • single mode Dual-fiber: 20/40/60/80 Km
    • single mode Single fiber: 20/40/60/80 Km
    • Category-5 twisted pairs: 100m
    Jumbo frame
    • 9K
    LED indicators
    • POWER (power supply), FX LINK (optical link action)
    • TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M)
    • TP ACT (TP cable packet forwarding action)
    Power Consumption
    • Max. 3 Watts

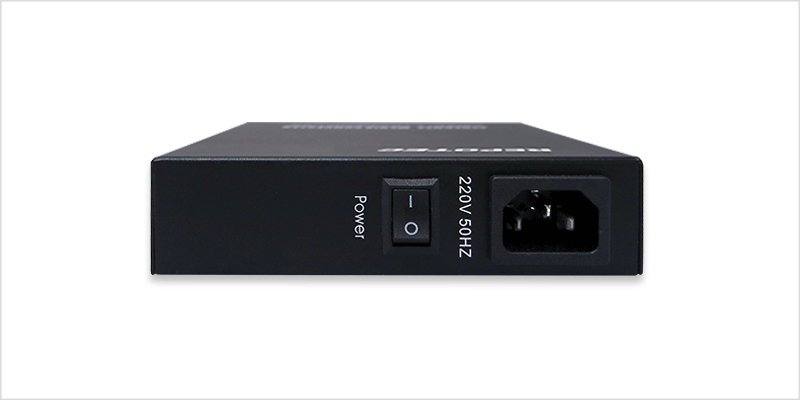

    Power Supply
    • Internal Power supply 100~240VAC, 50/60Hz /48VDC
    Environment
    • Operating Temperature: -10~55°C
    • Storage Temperature: -40~75º C
    • Operating Humidity: 5% to 90% (Non-Condensing)
    Dimension
    • W127 x H32 x D156mm
    • W77.2 x H26 x D113mm (Slider card)
    Certification
    • FCC, CE


  • RP-MC211FP 10/100/1000Base-TX to SFP Gigabit Media Converter
    RP-MC211FP/C 10/100/1000Base-TX to SFP Gigabit Media Converter Card Module
