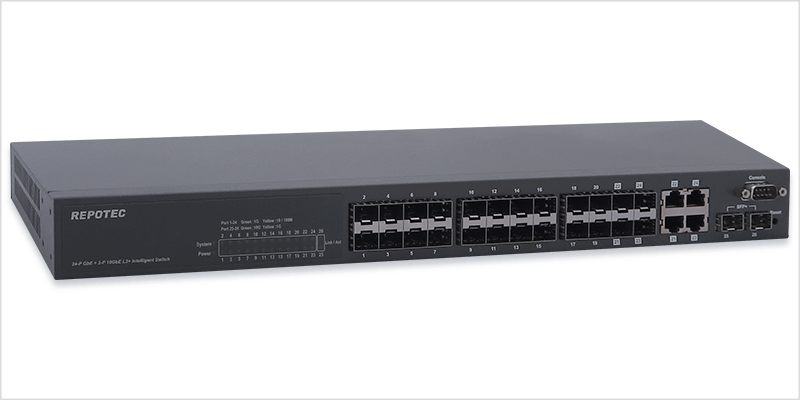

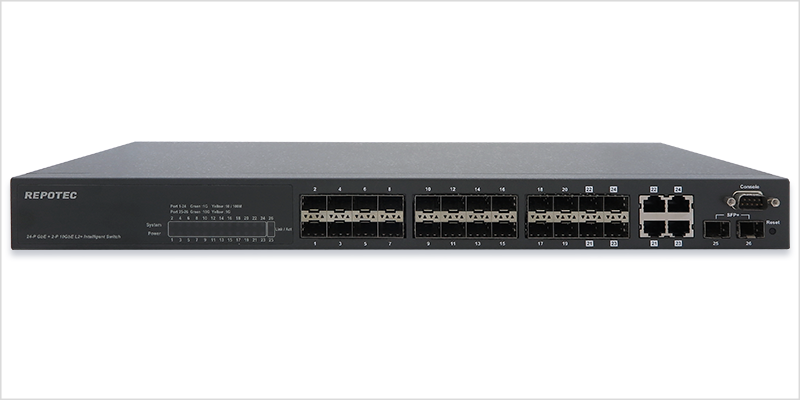

RP-GS2026IXB is a cost efficient and high-performance L2 Ethernet managed switch - 20-port (100/1G) SFP+ 4-Port SFP/RJ45 combo + 2-Port(1G/10G) SFP+ are supported.
RP-GS2026IXB supports remote management by SNMP, Http and Telnet interfaces, and local management by console interface. It offers full suite of comprehensive Layer 2 switching capabilities such as 802.1Q VLAN, 802.1x Port Security, Rate Control, Port Configuration, Port Mirroring, Port Statistics, QoS functions. The switch provides the ideal combination of affordability and capabilities for small- and medium-size businesses to build high-performance network efficiently.
RP-GS2026IXB equips 2 10GbE connectivity, with 10 GbE uplink, the switch can handle extremely large amounts of data in a secure topology connecting to an enterprise backbone or high capacity servers.
-
- 20 x SFP ports, support 100Base FX or 1000Base-X
- 4 x RJ45/SFP(100/1G) ports, auto-detect RJ45/SFP connection
- 2 x SFP+ ports, support 1000Base-X or 10Gbase-X
- IPv6 management
- IPv4 Static routing
- 8 priority queues are supported on each port for QoS application
- Protected Port and LoopBack Detection function
- IEEE 802.1x security function, and VLAN assignment, Guest VLAN functions
- Static Mac address access limit and Dynamic Mac address number on port
- 802.1d & 802.1w & 802.1s
- IP Multicast with IGMP snooping / query / fast leave / filtering /group limited /MVR
- DHCP Client / DHCP Option 82 Relay / DHCP Snooping function
- ACL function for L2 ~ L4 packet control, Ingress/Egress rate control on port
- ARP inspection / IP source guard
- SFP Transceiver DDMI function
- Remote port configuration setting and statistics monitoring
- Text configuration download and upload
-
| Standards |
- IEEE802.3(10BaseT Ethernet ), IEEE802.3u(100Base Fast Ethernet),
- IEEE802.3ab(1000BaseT), IEEE802.3z(1000Base),IEEE802.3x
- IEEE802.1D, IEEE802.1w, IEEE802.1P, IEEE802.1Q, IEEE802.1x
- IEEE802.3ad, EEE802.1ad
|
| Interface |
- Port1-24: 100/1G SFP Port
- Port21-24: UTP/SFP Combo Port
- Port25-26: 1G/10G SFP+ Port
|
| Console Port |
|
| CPU |
- 500MHz MIPS 24KEc CPU as the main processor which integrated on switch controller
|
| Packet Buffer |
|
| Mac Table Size |
|
| Max Packet Size |
|
| Switching capability |
- 14880pps at 10Mbps
- 148810pps at 100Mbps
- 1488095pps at 1Gbps with 64 bytes packets
|
| Switch capacity |
|
| Forwarding Rate |
|
| Port Control |
- Port speed, duplex mode, and flow control
- Port Auto MDI/MDI-X
- Port frame size (jumbo frames), Maximum ingress frame size (10056 bytes)
- Port state (administrative status)
- Port status (link monitoring)
- Port statistics (MIB counters)
- Priority-based flow control (PFC)
|
| L2 Switching |
- Auto MAC address learning/aging and MAC addresses (static)
- DHCP snooping
- ARP inspection
- Port Mirroring
- Flow mirroring
|
| L3 Switching |
- DHCP option 82 relay
- IPv4 Unicast: Static routing
|
| VLANs |
- IEEE 802.1Q static VLAN(4096 entries Max.),
Voice VLAN, Port isolation, Private VLAN Static, MAC based VLAN, Protocol based VLAN, IP subnet based VLAN
|
| Spanning Tree |
- IEEE 802.1s MSTP(Multiple spanning tree)
- IEEE 802.1w RSTP(Rapid spanning tree)
- IEEE 802.1D STP(Spanning tree)
- BPDU Guard & Restricted Role
- Error Disable Recovery
|
| Link Aggregation |
|
| IP Multicast |
- IGMP v2 and v3 snooping
- MLD v1 snooping
- IGMP filtering profile
- IPMC throttling, filtering, leave proxy
- MVR and MVR profile
|
| QoS |
- Traffic Classes (8 active priorities)
- Port Default Priority, User Priority,
- Input priority mapping
- QoS Control List (QCL Mode)
- Storm Control for UC, BC and Unknown
- Port policers
- Global/VCAP (ACL) policers
- Port egress shaper
- Queue egress shapers
- DiffServ (RFC2474) remarking
- Tag remarking
- Scheduler mode
|
| Security |
- Port-Based 802.1X, Single 802.1X, Multiple 802.1X,
- MAC-Based Authentication
- VLAN Assignment , QoS Assignment, Guest VLAN
- RADIUS Accounting
- MAC Address Limit
- IP MAC binding, IP/MAC binding dynamic to static
- TACACS+
- Web & CLI Authentication
- Authorization (15 user levels)
- ACLs for filtering/policing/port copy
- IP source guard
|
| Synchronization |
|
| SFP DDMI |
|
| Management |
- DHCP Client,
- DNS client, proxy
- HTTP Server
- CLI - Console Port & Telnet
- Text Configuration download or upload
- Management access filtering
- HTTPS
- SSHv2
- IPv6 Management
- System Syslog
- Software Upload via web
- SNMP v1 / v2c / v3 Agent
- RMON (Group 1, 2, 3 & 9)
- RMON alarm and event(CLI,web)
- SNMP multiple trap destinations
- IEEE 802.1AB-2005 Link Layer Discovery LLDP
- Cisco Discovery filtering - CDP
- sFlow
- Daylight Saving
|
| LED Indicators |
- Per Port : Link/Act
Port 1-24: 1000Mbps(Green) / 10/100Mbps(Amber)
Port25-26: 10G(Green) / 1000Mbps (Amber)
- Per Device : Power and System
|
| Power Consumption |
|

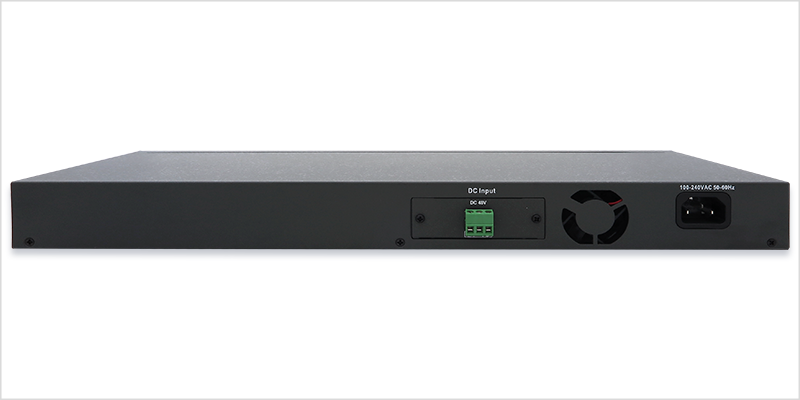

| Power Supply |
- Internal Power supply 100~240VAC, 50/60 Hz
|
| Environment |
- Operating temperature: 0 ~ 50°C
- Storage Temperature: -25 ~ 70°C
- Operating Humidity: 10% to 90% (Non-Condensing)
|
| Dimension |
- 440 x 172 x 44 mm (WxDxH)
|
| Certification |
|
-
