| Standards |
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Ethernet
- IEEE 802.3ab 1000Base-T Ethernet
- IEEE 802.3z 1000Base-X Ethernet
- IEEE 802.3ae 10Gb/s Ethernet
- IEEE802.3x Flow Control and Back Pressure
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol
- IEEE 802.1Q VLAN
- ITU-T G.8032 ERPS
- IEEE 802.1X Port Authentication Network Control
- IEEE 802.1ab LLDP
- IEEE 802.3ad LACP
- IEEE 802.3af PoE; IEEE 802.3at PoE+
|
| Interface |

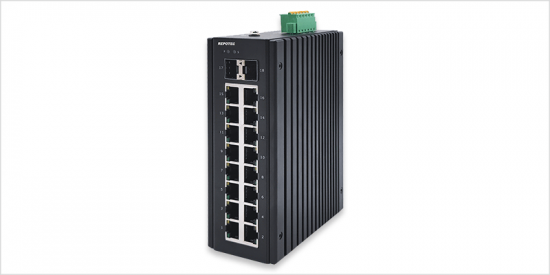

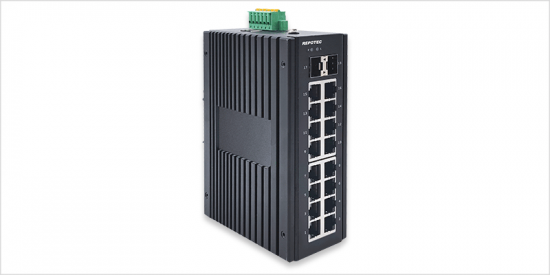

- 16 x 10/100/1000Base-T RJ45 PoE(1-16 ports)
- 2 x 1G/2.5G/10GBase-X SFP (17-18 ports)
|
| Management port |
- 1 x RJ45 Console port (115200,8,N,1)
|
| Alarm port |
- One digital output for relay alarm, alarm relay current carry ability: 1A@24VDC
|
| Switching capacity |
|
| Packet forwarding rate |
|
| MAC address table |
|
| VLAN |
|
| Buffer |
|
| Forwarding delay |
|
| Jumbo Frame |
|
| MDX/MIDX |
|
| Watchdog |
|
| Layer 2 function |
| Port aggregation |
- Support GE port aggregation
- Support 2.5GE aggregation
- Support 10GE aggregation
- Support static aggregation
- Support dynamic aggregation
- Up to 64 aggregation groups and up to 8 ports per group
|
| Port features |
- Support IEEE802.3x flow control,
- Support interface counters,
- Support port isolation,
- Port mirroring ( One-to-One, Many-to-One)
- Support loop detection(Port-based; VLAN-based)
- Support broadcast storm suppression(broadcast; unknown multicast; unknown unicast)
|
| Mac-address table management |
- Support static Mac-address management
- Support dynamic Mac-address Management
- Support filtering Mac-address
- Support MAC limit based on port and VLAN
- Support MAC flapping based on port and VLAN
|
| VLAN |
- Support access mode
- Support trunk mode
- Support hybrid mode
|
| VLAN Classification |
- Mac Based VLAN
- IP Based VLAN
- Protocol Based VLAN
|
| QinQ |
- Port-based QinQ
- VLAN-based QinQ
- Flow-based QinQ
|
| LLDP |
- LLDP (Link Layer Discovery Protocol)
|
| Port mirroring |
- Many to one port mirroring
|
| Ring network protocol |
- Support STP、RSTP、MSTP
- Support G.8032 ERPS protocol，single ring, sub Ring and associated sub ring
- Recovery time ≤20ms
|
| L2 Multicast |
| IGMP snooping |
|
| Group address |
|
| Security functions |
| ACL |
- IP Standard ACL
- MAC extend ACL
- IP extend ACL
- IPv6 ACL
|
| QoS |
- Support QoS Class, Remarking
- Support SP, WRR queue scheduling
- Ingress Port-based Rate-limit
- Egress Port-based Rate-limit
- Support Policy-based QoS
|
| 802.1x |
- Port access control
- Mac-address access control
- RADIUS server
|
| Port-security |
|
| IP source guard |
|
| ARP-check |
- Support ARP-check and ARP packet filtering for illegal users
|
| Access control |
- Support Telnet/SSH/HTTP/HTTPS user access control
|
| Management & Maintenance functions |
| User Management |
- Support password protection
- Support user authorization management
|
| SNMP |
- Supporting SNMP V1/V2C/V3 version
|
| Web Management |
- Support HTTP V1.1
- Support HTTPS
|
| CLI management |
- Console/Telnet command line management
|
| RMON |
- Support RMON(Remote Monitoring) alarm
|
| Firmware upgrade |
|
| Fault Detection |
- Ping/Traceroute
- Dying gasp
- Support optical transceiver DDM function
|
| Cable detection |
Support copper port cable detection |
| PoE management |
- Support 802.3af/802.3at
- Support PD watchdog
- Support PoE priority management
- Support Max PoE power configuration for each port
- Support alarm waterline configuration
- Support reserved power configuration
|
| NTP |
|
| Syslog/Debug |
- Syslog/Debug
- Syslog send to three servers
|
| Configuration import/export |
- Support FTP/TFTP remote import/export
|
| Dual partition management |
- Support dual partition switching
|
| Application Protocol Functions |
| DHCP Snooping |
- DHCP snooping trust port
- Support remote-id/circuit-id configuration
- DHCP option-82
|
| DHCP client |
|
| Telnet server |
|
| Telnet client |
|
| SSH server |
|
| TACACS |
- Support TACACS(the terminal access controller accesses the control system)
|
| sflow |
- Support network traffic analysis
|
| TFTP |
|
| Layer 3 function |
| ARP |
|
| DHCP server |
|
| IPv4 / IPv6 |
|
| ECMP |
- Support ECMP (Equal-cost multi-path routing)
- Support the configuration of ECMP Max next-hop
- Support capacity balanced configuration
|
| Route policy |
|
| VRRP |
- virtual router redundancy protocol
|
| Routing Protocol Specification |
| RIP |
|
| OSPFv2 |
|
| BGP4 |
- BGP4
- BGP Support Routing Recursive ECMP
- Support to view the number of neighbors and up/down state
|
| IS-IS |
|
| Routing Entry |
|
| Power parameter |
| Input voltage |
- 44-57VDC(802.3af)
- 52-57VDC(802.3at)
- redundant power input
|
| Input current |
|
| PoE power |
- Full loading without PoE≤18W
- PoE power budget ≤ 240W
|
| Connector |

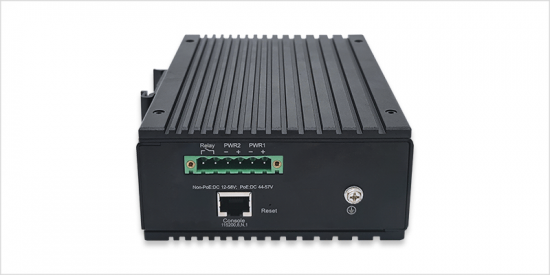

- Removable 6-pin terminal block, Pin 5/6 for relay alarm output
|
| Reverse polarity protection |
|
| Over-voltage protection |
|
| Over-current protection |
|
| Mechanical structure |

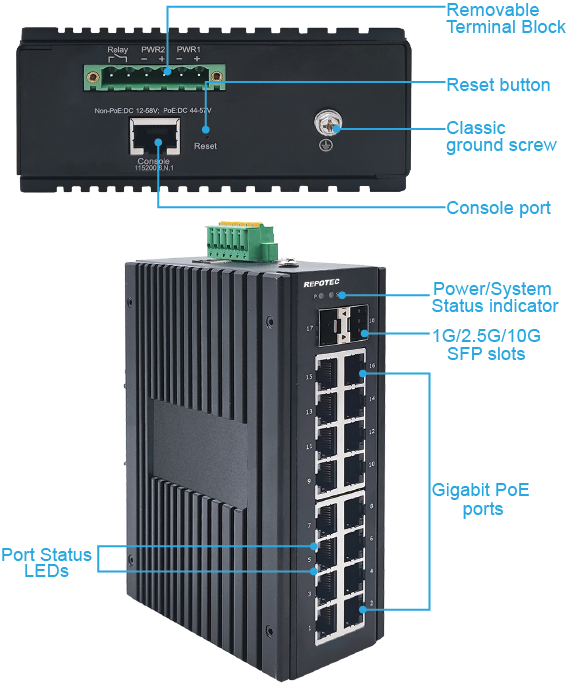

| LED Indicators |
- P (Power indicator)
- S (System status indicator)
- 1-16 (Copper ports indicators) Green / (PoE) Yellow
- 17-18 (Fiber ports indicators) Green
|
| Case protection |
|
| Installation method |
|
| Dimension |
|
| Environment |
- Operating temperature: -40°C~+75°C
- Storage temperature -40°C~+85°C
- Operating Humidity: 10 to 90% (Non-Condensing)
|
| EMS |
- Surge protection of power: IEC 61000-4-5 6KV/4KV (8/20us)
- Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV (10/700us)
- RS：IEC 61000-4-3 80 MHz-1 GHz：10 V/m
- EFT：IEC 61000-4-4 4K/2K
- CS：IEC 61000-4-6 10V
- ESD：IEC 61000-4-2 Contact: 8K；Air: 15K
|
| EMI |
|
| Shock |
|
| Free fall |
|
| Vibration |
|
| Certification |
|
