RP-PG1526W | RP-PG1526WL


RP-PG1526W | RP-PG1526WL

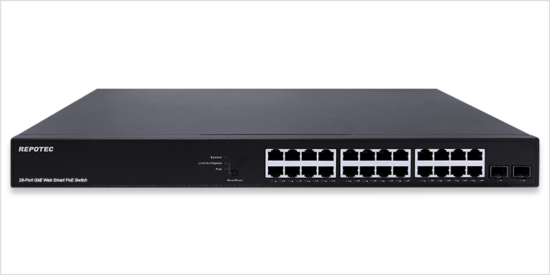

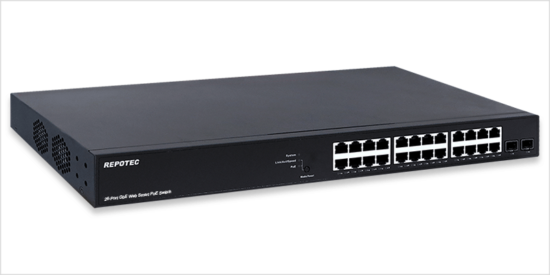

24-P Gigabit + 2-SFP(100/1G) slot Web-Smart+ 802.3at PoE Switch

  • RP-PG1526Wx series is a  24-Port (10M/100M/1G) PoE+ and 2 GbE SFP port web smart PoE switch, which offers powerful L2 features with better functionality and usability. It delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.

    With PoE function, RP-PG1526Wx offers power output up to 30W per port and 185W/  370W power budget via Cat.5/5e/6 Ethernet cables. In addition, over current protection and circuit shorting protection are also supported to ensure the power supply safety. The rich diagnostic LEDs on the front-panel provide the clear operating status of individual port and the whole system.

    RP-PG1526Wx provides high performance and environment flexibility for SMBs and Enterprises. The embedded Device Managed System feature provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. RP-PG1526Wx is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.





    • IEEE 802.3af/at Power over Ethernet
    • Web Smart+ features provide easier manageability, basic security and QoS
    • Support 802.1d(STP), 802.1w(RSTP) and 802.1s(MSTP)
    • Support SNMP v1/v2c/v3
    • Support IGMP Snooping
    • Support IP Source Guard
    • DHCP Server
    • PoE Port configuration and scheduling
    • Support over current protection and circuit shorting protection
    • Wire-speed packet filtering and forwarding rate
    • 9216Bytes Jumbo frames
    • 8K Mac address
    • IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet



  •

    Standards

    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-TX Ethernet
    • IEEE 802.3ab 1000Base-T Ethernet
    • IEEE 802.3z 1000Base-X Ethernet
    • IEEE 802.3x Flow Control capability
    • IEEE802.3az Energy Efficient Ethernet

    Interface

    • Port 1 to 24: RJ-45 10/100/1000Mbps with 802.3af/at PoE, auto MDI/X
    • Port 25 to 26: SFP(100/1000Mbps) slot, uplink
    • Reset Button

    Forwarding Capacity

    • 38.688 Mpps

    Switching Capacity

    • 52 Gbps

    Jumbo frames

    • 9216 Bytes

    MAC Table

    • 8K MAC addresses

    Layer 2 Switching

    Spanning Tree Protocol (STP)

    • Standard Spanning Tree 802.1d
    • Rapid Spanning Tree (RSTP) 802.1w
    • Multiple Spanning Tree (MSTP) 802.1s

    Trunking

    • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
    • Static aggregation

    VLAN

    • Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
    • Port-based VLAN
    • 802.1Q tag-based VLAN
    • Protocol based VLAN
    • IP subnet-based VLAN
    • Private VLAN Edge (PVE)
    • MAC-based VLAN
    • Q-in-Q (double tag) VLAN
    • Voice VLAN
    • GARP VLAN Registration Protocol (GVRP) (option)

    DHCP Relay

    • Relay of DHCP traffic to DHCP server in different VLAN.
    • Works with DHCP Option 82

    IGMP snooping

    • IGMP limits bandwidth-intensive multicast traffic to only the requesters
    • Supports 512 multicast groups

    IGMP Querier

    • IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router

    IGMP Proxy

    • IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router

    MLD v1/v2 Snooping

    • Delivers IPv6 multicast packets only to the required receivers

    Multicast VLAN Registration (MVR)

    • It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping.

    Security

    Secure Shell (SSH)

    • SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are supported

    Secure Sockets Layer (SSL)

    • SSL Support: Encrypts the http traffic, allowing advance secure access to the browser-based management GUI in the switch

    IEEE 802.1X

    • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
    • Supports IGMP-RADIUS based 802.1X
    • Dynamic VLAN assignment

    Layer 2 Isolation Private VLAN Edge (PVE)

    • PVE (also knows as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks

    Port Security

    • Locks MAC addresses to ports, and limits the number of learned MAC address

    IP Source Guard

    • Prevents illegal IP address from accessing to specific port in the switch

    RADIUS/ TACACS+

    • Supports RADIUS and TACACS+ authentication. Switch as a client

    Storm control

    • Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port

    DHCP Snooping

    • A feature acts as a firewall between untrusted hosts and trusted DHCP servers

    Loop Protection

    • To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.

    ACLs

    • Supports up to 384 entries. Drop or rate limitation based on:
    • Source and destination MAC, VLAN ID or IP address, protocol, port,
    • Differentiated services code point (DSCP) / IP precedence
    • TCP/ UDP source and destination ports
    • 802.1p priority
    • Ethernet type
    • Internet Control Message Protocol (ICMP) packets
    • TCP flag

    Quality of Service

    Hardware Queue

    • Support 8 hardware queues

    Scheduling

    • Strict priority and weighted round-robin (WRR)
    • Queue assignment based on DSCP and class of service

    Classification

    • Port based
    • 802.1p VLAN priority based

    Rate Limiting

    • Ingress policer
    • Egress shaping and rate control
    • Per port

    Management

    Port mirroring

    • Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported

    IEEE 802.1ab (LLDP)

    • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
    • Support LLDP-MED extensions

    Web GUI Interface

    • Built-in switch configuration utility for browser-based device configuration

    Dual Image

    • Independent primary and secondary images for backup while upgrading

    UPnP

    • The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play

    DHCP Server

    • Support DHCP server to assign IP to DHCP clients

    Remote Monitoring (RMON)

    • Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis

    SNMP

    • SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)

    Firmware Upgrade

    • Web browser upgrade (HTTP/ HTTPs) and TFTP

    NTP

    • Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched

    Other Management

    • HTTP/HTTPs
    • DHCP Client
    • Cable Diagnostics
    • Syslog
    • Telnet Client; SSH
    • IPv6 Management

    Power over Ethernet

    Port Configuration

    • Supports per port PoE configuration function

    PoE Scheduling

    • Supports per port PoE scheduling to turn on/off the PoE devices (PDs).

    Auto-checking

    • Check the link status of PDs. Reboot PDs if there is no responses.

    Power Delay

    • The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

    PoE Power Budget

    • 185W for RP-PG1526WL,
    • 370W for RP-PG1526W

    Power Supply

    • Internal Power supply 100~240VAC, 50/60 Hz

    Environment

    • Operating temperature: 0°C to 50°C
    • Storage Temperature: -20 to 70°C
    • Operating Humidity: 10% to 90% (Non-Condensing)

    Dimension

    • W442 x D211 x H44mm

    Certification

    • FCC, CE


  • RP-PG1526WL 24-P Gigabit + 2-SFP(100/1G) Web-Smart+ 802.3at PoE Switch (185W)
    RP-PG1526W 24-P Gigabit + 2-SFP(100/1G) Web-Smart+ 802.3at PoE Switch (370W)
