RP-IDR20-24


RP-IDR20-24

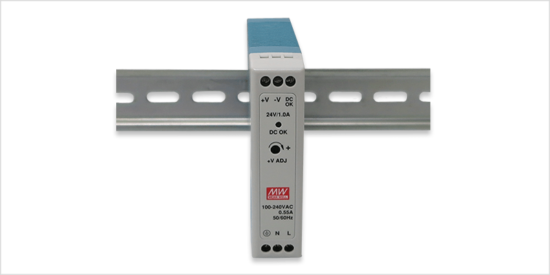

24V / 24W Single Output Industrial DIN Rail Power Supply

  • RP-IDR20-24 DC Single Output Industrial DIN Rail Power Supply provides a reliable DC power source for industrial control system. It operates reliably in heavy industrial demanding environments the range from -20°C to 70°C. Compact enclosures with DIN rail mounting for efficient use of cabinet space meets industrial standards and approvals, thus, it can be placed in almost any difficult environments.

    RP-IDR20-24 offers short circuit, over load, over voltage, and over temperature protection. They have passed a 100% full load burn-in test, and are UL/CUL listed, TÜV/CB certified, and CE marked. RP-IDR20-24 is available with output rating 24W, with 24 VDC output. User can choose from a full range of input voltages (85 to 264 VAC) making it unbeatable.



    • Economical and reliable DC power source for industrial devices
    • -20 to 70°C operating temperature range
    • Design for use in harsh industrial environment
    • Universal AC input/Full range
    • Protections: Short circuit/Overload/Over voltage
    • Cooling by free air convection

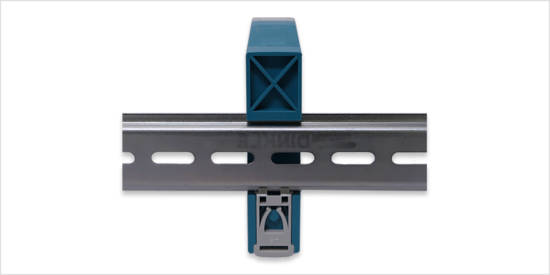

    • Can be installed on DIN rail TS-35/7.5 or 15
    • LED indicator for power on
    • Built in DC OK active signal
    • No load power consumption<0.75W






  • Input
    • 85 ~ 264 VAC, 47 ~ 63 Hz, 0.55A, 120-370VDC
    Output
    • 24 VDC, 0~1A, 24W
    Over-voltage Protection
    • 6 ~ 26.4 V
    • Type: Shut down o/p voltage, re-power on to recover
    Overload Protection
    • 105-160% rated output power
    • Type: Constant current limiting, recovers automatically after fault condition is removed
    DC OK Active Signal (max.)
    • 18 ~ 27 V/20 mA
    Environmental
    • Operating Temperature: -20 ~ +70°C
    • Operating Humidity: 20 ~ 90% RH non-condensing
    • Storage Temperature: -40 ~ +85°C
    • Storage Humidity: 10 ~ 95% RH
    Dimensions
    • W22.5 x H90 x D100 mm
    Weight
    • 190 g
    Safety Standards
    • TÜV EN60950-1, UL508 Approved
    EMC Standards
    • EN55011, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3
    • EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A



  • RP-IDC20-24 24V / 24W Single Output Industrial DIN Rail Power Supply
